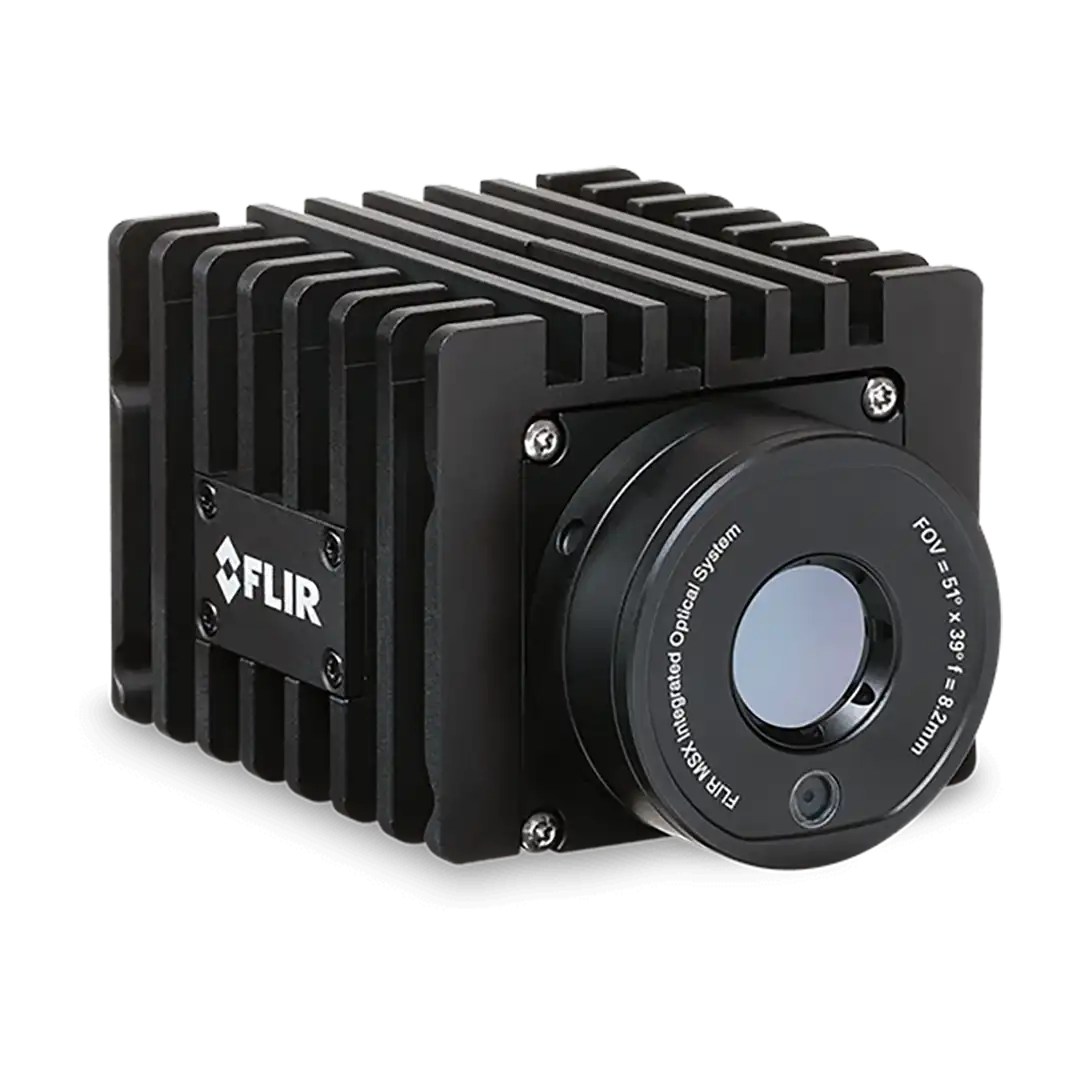

FLIR Compact Thermal Smart Sensor Camera

FLIR A70

FLIR A70

  • Thermal Imaging Resolution: 640 × 480 pixels for high-resolution thermal imaging.
  • Temperature Measurement Range: –20°C to 120°C (–4°F to 248°F), 0°C to 650°C (32°F to 1202°F), and optional calibration up to 2000°C (3632°F), making it ideal for industrial automation and monitoring applications.
  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, ensuring precise temperature measurements.
  • Field of View (FOV): Multiple lens options available, including 14°, 24°, and 42°, for adaptable imaging needs.
  • Image Frequency: 30 Hz for real-time thermal analysis.
  • Detector Type: Uncooled microbolometer for high-performance, maintenance-free operation.
  • NETD (Thermal Sensitivity): <30 mK at 30°C (86°F), allowing detection of small temperature differences.
  • Focus: Automatic or manual, with optional motorized focus for enhanced precision.
  • Interfaces: Gigabit Ethernet (GigE) and GenICam compliance for seamless integration into automation and research systems.
  • Data Streaming: Full radiometric data streaming for real-time analysis and process monitoring.
  • Durability: IP66-rated housing for protection against dust and water in harsh environments.
  • Operating Temperature Range: –15°C to 50°C (5°F to 122°F), ensuring reliable performance in industrial settings.
  • Compact and Lightweight: Weighs approximately 1.1 kg (2.4 lb) and measures 152 × 101 × 55 mm (6.0 × 4.0 × 2.2 inches), making it easy to mount and integrate into fixed installations.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: 89929-0401
View full details

Product Information

FLIR A70

​The FLIR A70 is a high-resolution thermal imaging camera designed for industrial automation applications, including condition monitoring and early fire detection. It features a 640 x 480 pixel uncooled microbolometer detector with a thermal sensitivity of less than 35 mK, enabling precise temperature measurements ranging from -20°C to 1000°C with an accuracy of ±2°C or ±2%. The A70 supports GigE Vision and GenICam protocols for seamless integration into existing systems, offering real-time radiometric image streaming over Gigabit Ethernet. Optional features include Wi-Fi connectivity and an integrated visual camera with MSX® (Multi-Spectral Dynamic Imaging) enhancement. Available with lens options of 29°, 51°, or 95° fields of view, the A70 can be tailored to specific monitoring requirements. Its rugged design, measuring 107 x 67 x 57 mm and weighing approximately 519 grams, is IP66-rated to withstand harsh industrial environments. The camera operates within a temperature range of -20°C to 50°C, making it suitable for various challenging conditions.

High-Resolution Thermal Imaging for Industrial Automation

The FLIR A70 is a fixed-mount thermal imaging camera designed for industrial automation, quality control, and process monitoring. With a 640 × 480 thermal resolution, it delivers exceptionally detailed thermal images and precise temperature measurements, making it ideal for detecting hot spots, ensuring equipment reliability, and optimizing manufacturing processes. Its rugged and compact design allows for continuous monitoring in demanding environments.

Smart Sensor Capabilities for Real-Time Monitoring

The FLIR A70 features integrated smart sensor functionality, allowing for standalone thermal analysis and real-time edge computing without requiring an external PC. It is GigE Vision™ and GenICam™ compliant, enabling seamless integration into industrial automation systems for proactive monitoring and predictive maintenance. This ensures enhanced efficiency and reduced operational downtime in production environments.

Expanded Temperature Range and High Thermal Sensitivity

Designed for high-precision industrial and scientific applications, the FLIR A70 offers a temperature range from -20°C to 1000°C (-4°F to 1832°F) and thermal sensitivity of <50mK, allowing for detection of even the smallest temperature fluctuations. These capabilities make it an ideal solution for monitoring critical assets, preventing equipment failures, and maintaining process stability.

Advanced Data Capture and Industry 4.0 Connectivity

The FLIR A70 supports radiometric image capture, real-time thermal video streaming, and industrial IoT connectivity, making it a powerful tool for automated inspections and data-driven decision-making. Integrated with FLIR Research Studio and other analysis software, it enables detailed reporting, trend analysis, and remote monitoring, helping industries embrace Industry 4.0 automation and efficiency.

Digital Downloads

Product Specifications and Downloads

Documentation

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
