FLIR Acoustic Imaging Camera

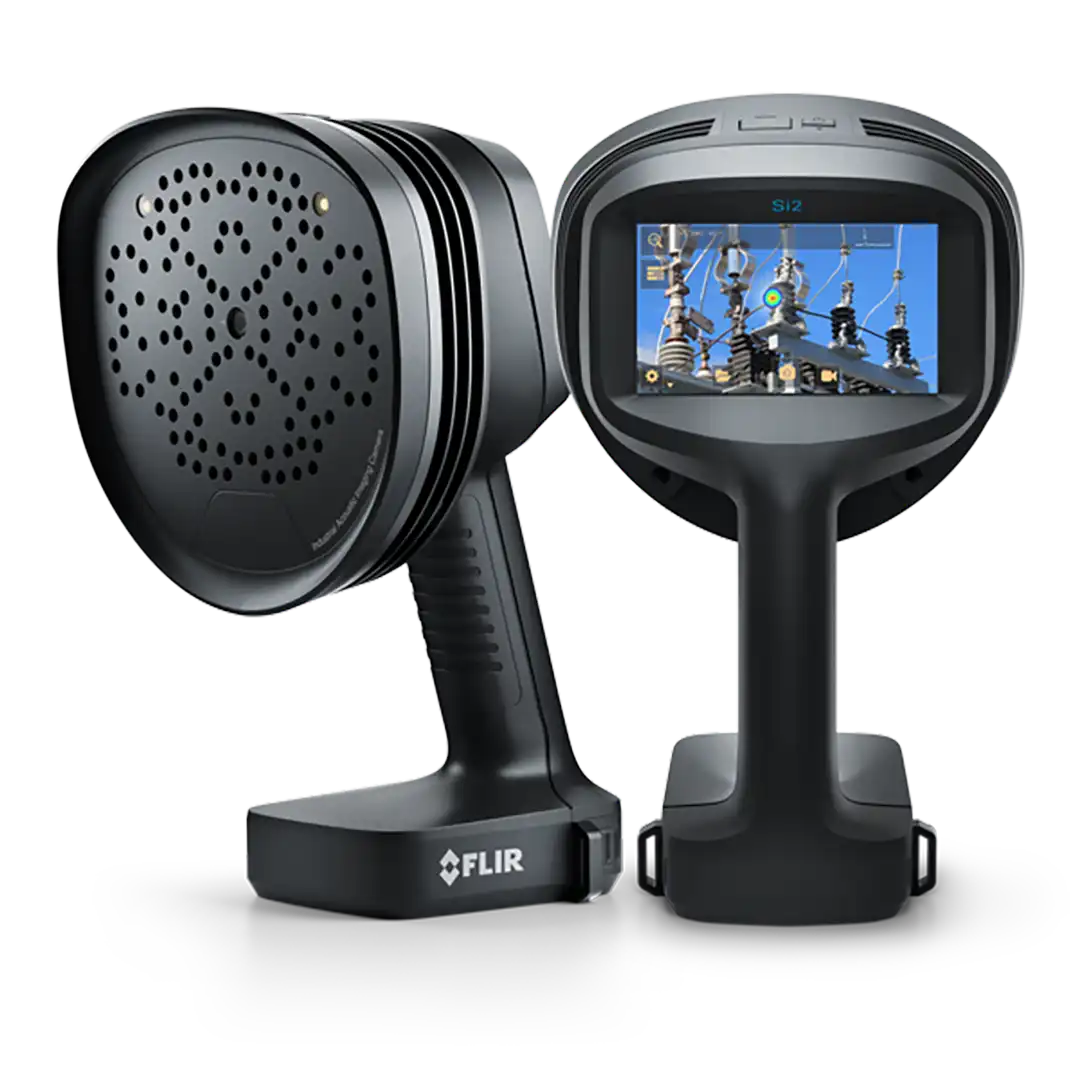

FLIR Si2-PD Acoustic Imaging Camera

FLIR Si2-PD Acoustic Imaging Camera

  • Advanced Partial Discharge Detection: Detects, locates, classifies, and assesses partial discharge (PD) faults from up to 200 meters (656 feet) away, identifying PD issues 30 times smaller than previously possible.
  • Comprehensive Analysis Tools: Provides on-camera and software-based severity assessments, including recommended actions, aiding in swift decision-making and appropriate response planning.
  • High-Resolution Imaging: Equipped with a 12 MP digital camera, 8x digital zoom, and a 5-inch resistive touch screen with 1280 × 720 resolution for clear visualization.
  • Wide Detection Bandwidth: Operates within a 2 kHz to 130 kHz bandwidth, utilizing 124 low-noise MEMS microphones for precise acoustic measurements.
  • Extended Detection Range: Capable of detecting PD faults from distances ranging from 0.3 meters (1 foot) up to 200 meters (656 feet).
  • Durable and Ergonomic Design: Features an IP54-rated enclosure for protection against dust and water, with a lightweight design (~1.2 kg) for one-handed operation.
  • Integrated Flashlight: Built-in LEDs with adjustable brightness illuminate dimly lit areas, enhancing inspection capabilities.
  • Data Transfer and Storage: Supports Wi-Fi (2.4 GHz and 5 GHz) and USB connections; includes 128 GB internal storage and external USB storage options.
  • Analysis and Reporting Software: Compatible with FLIR Acoustic Camera Viewer (cloud service) and FLIR Thermal Studio (desktop software) for advanced analysis and reporting.
  • Fleet Management Functionality: Offers features such as cloud data integration and over-the-air (OTA) software updates, ensuring optimal use and maintenance of equipment in large-scale industrial settings.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: T912305
View full details

Product Information

FLIR Si2-PD Acoustic Imaging Camera

The FLIR Si2-PD acoustic imaging camera helps you reduce maintenance costs for electrical equipment by offering an effective solution for partial discharge (PD) detection and response. This camera detects, locates, classifies, and assesses PD faults from up to 200 m (656 ft) away, identifying PD issues 30 times smaller than previously possible. It provides on-camera and software-based severity assessments, giving you the decision support needed for precise maintenance decisions.

For specific applications, you can choose the Si2-LD for leak detection and bearing fault detection, or the Si2-Pro for comprehensive electric utility, leak detection, and bearing fault detection applications. These models are available in the related products section, allowing you to customize your maintenance approach to suit your needs.

Precision Acoustic Imaging for Partial Discharge Detection

The FLIR Si2-PD is a state-of-the-art acoustic imaging camera specifically designed for detecting and analyzing partial discharge in high-voltage electrical systems. Using an array of highly sensitive microphones, it captures real-time acoustic data to pinpoint insulation breakdowns, corona discharge, and other electrical faults. This advanced technology allows for non-contact inspections, reducing the risk of exposure to hazardous high-voltage environments while improving the reliability of electrical infrastructure.

AI-Enhanced Diagnostics for Smarter Maintenance

The Si2-PD utilizes artificial intelligence-driven algorithms to automatically classify, locate, and assess the severity of partial discharge events. By providing detailed insights into fault types and risk levels, the system enables maintenance teams to prioritize repairs and prevent costly equipment failures. With real-time cost analysis and trend tracking, facilities can take a proactive approach to improving power system reliability and extending the lifespan of critical assets.

Ergonomic and Rugged Design for Field Inspections

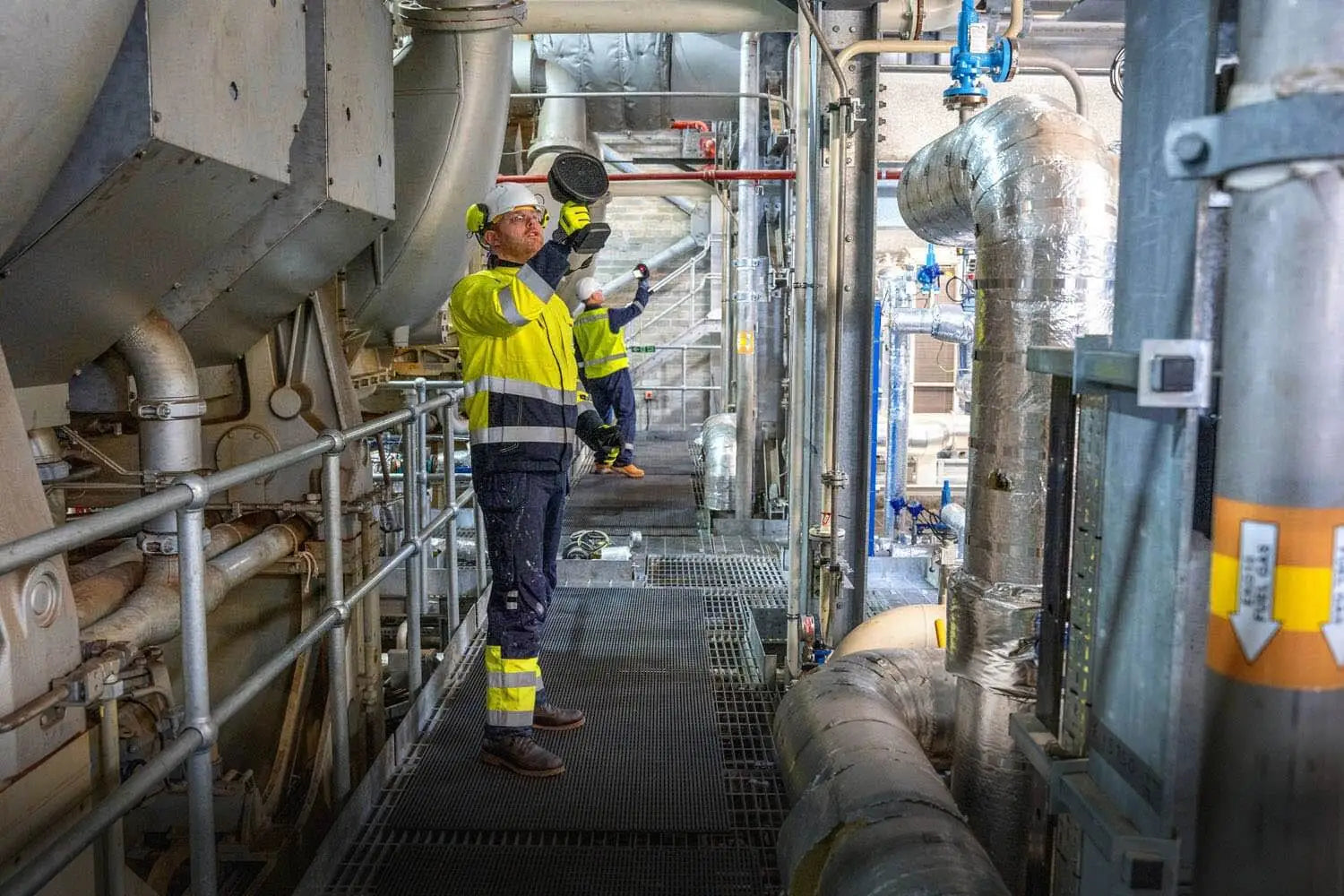

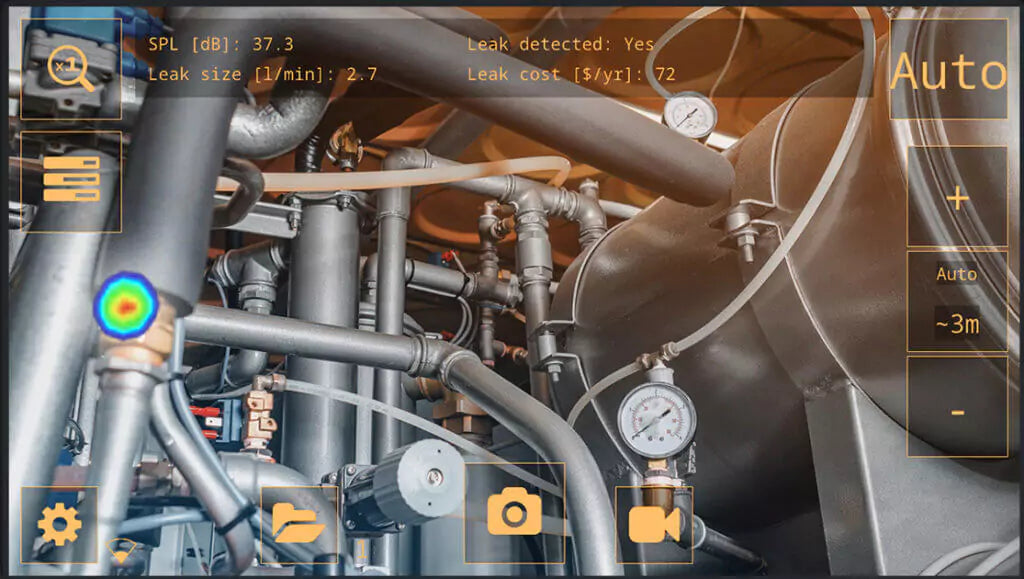

Built for industrial and utility environments, the FLIR Si2-PD features a lightweight, handheld design that allows for easy, one-handed operation. Its rugged construction ensures durability in demanding conditions, making it a reliable tool for electrical utility workers, substation inspectors, and facility managers. The intuitive touchscreen interface provides quick access to acoustic images, zoom functions, and real-time analysis, ensuring that users can diagnose issues efficiently in the field.

Seamless Data Integration and Automated Reporting

The FLIR Si2-PD integrates with FLIR Thermal Studio and FLIR Acoustic Camera Viewer software, allowing users to analyze, document, and share inspection results effortlessly. With Wi-Fi connectivity and cloud-based storage options, teams can transfer data in real time, ensuring that findings are immediately available for further analysis and action. Automated reporting tools enable organizations to track discharge trends, maintain compliance records, and optimize predictive maintenance programs.

Digital Downloads

Product Specifications and Downloads

Documentation

Handheld Product Matrix

Handheld Product Matrix

Browse our selection of handheld thermal cameras with key specs and pricing to help you find the perfect fit for your needs.

View PDF

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
