FLIR High Performance Thermal Camera

FLIR T865

FLIR T865

  • Thermal Imaging Resolution: 640 × 480 pixels for ultra-clear thermal imaging.
  • Temperature Measurement Range: –40°C to 120°C (–40°F to 248°F), 0°C to 650°C (32°F to 1202°F), and optional calibration up to 2000°C (3632°F), suitable for industrial and utility applications.
  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, ensuring highly precise temperature measurements.
  • Field of View (FOV): Multiple interchangeable lenses available, including 6°, 14°, 24°, and 42°, for flexible inspection needs.
  • Display: 4-inch LCD touchscreen with 640 × 480 resolution, providing a bright and intuitive user interface.
  • Image Modes: Includes Thermal, MSX®, Picture-in-Picture, and High Sensitivity Mode for enhanced analysis.
  • Multi-Spectral Dynamic Imaging (MSX®): Overlays visual details onto thermal images for improved clarity.
  • High Sensitivity Mode: Enhances thermal sensitivity to detect subtle temperature differences.
  • Viewfinder: Integrated high-resolution viewfinder for optimal visibility in bright outdoor conditions.
  • Durability: Rugged design with an IP54 rating for dust and water resistance.
  • Operating Temperature Range: –15°C to 50°C (5°F to 122°F), ensuring reliability in various conditions.
  • Battery Life: Up to 4 hours of continuous operation, with a hot-swappable battery system for extended use.
  • Ergonomic Design: Features a 180° rotating optical block and an ergonomic handle for comfortable use over long periods.
  • Storage and Connectivity: Supports SD card storage, USB, HDMI, and Wi-Fi for easy data transfer and remote operation.
  • Compact and Portable: Weighs approximately 1.4 kg (3.1 lb), making it easy to carry and handle for extended inspections.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: 89201-0201
View full details

Product Information

FLIR T865

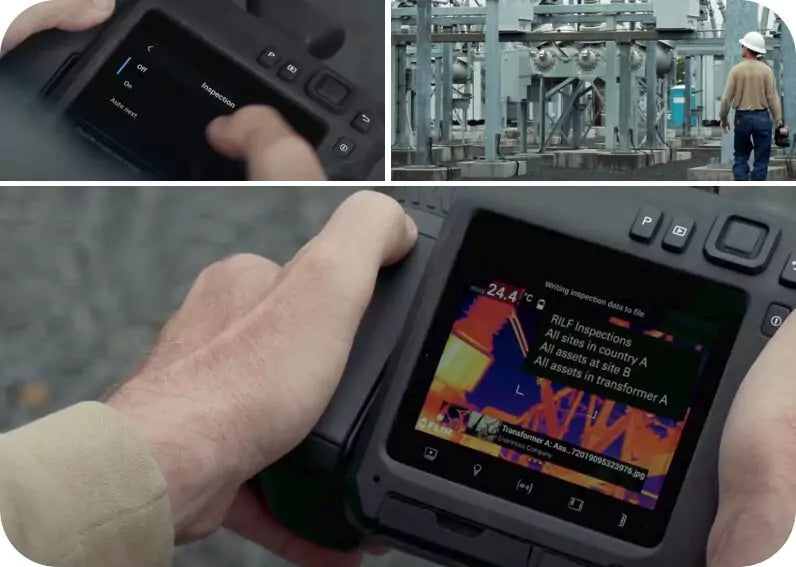

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you'll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.

High-Precision Thermal Imaging for Industrial and Utility Inspections

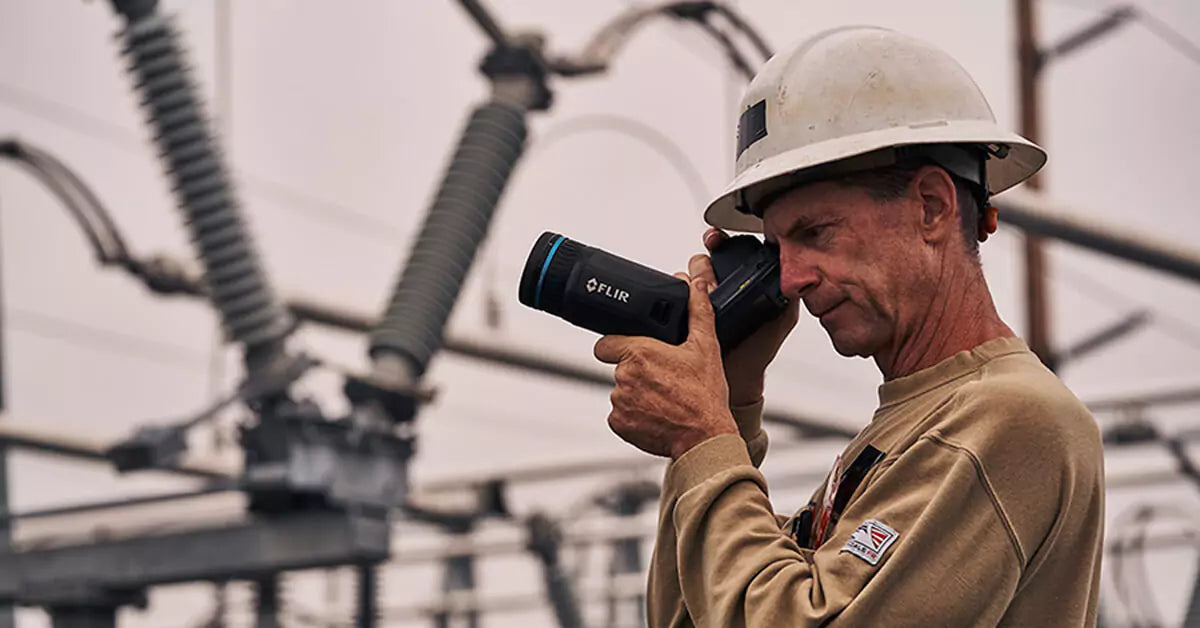

The FLIR T865 is a professional thermal imaging camera designed for electrical inspections, predictive maintenance, and critical infrastructure assessments. With a 640 × 480 thermal resolution and high-accuracy temperature measurements, it enables users to detect faults, prevent failures, and improve operational safety. The 4-inch LCD touchscreen display and integrated viewfinder ensure clear thermal imaging in any lighting condition.

Ergonomic 180° Rotating Optical Block for Flexible Inspections

The FLIR T865 features a 180° rotating optical block, allowing professionals to capture thermal images from overhead, ground-level, or difficult angles with ease. This design enhances comfort and efficiency, making it an ideal tool for long-duration inspections in industrial plants, substations, and manufacturing facilities. The intuitive user interface and one-touch level/span adjustments streamline data collection and analysis.

Enhanced Thermal Clarity with FLIR Vision Processing™

Equipped with FLIR Vision Processing™ technology, the T865 integrates UltraMax® and MSX® (Multi-Spectral Dynamic Imaging) to enhance image sharpness, structural definition, and temperature accuracy. With a temperature range of -40°C to 120°C (-40°F to 248°F) in standard mode and up to 2000°C (3632°F) with high-temperature mode, it delivers precise thermal analysis for various industrial applications.

Advanced Data Storage and Wireless Connectivity

The FLIR T865 supports radiometric JPEGs, thermal video recording, and Wi-Fi connectivity, enabling users to capture, store, and share thermal data seamlessly. Integrated with FLIR Thermal Studio software, it provides detailed reporting, trend analysis, and remote collaboration capabilities. These features make the T865 an essential tool for electrical diagnostics, power grid inspections, and facility maintenance.

Digital Downloads

Product Specifications and Downloads

Documentation

Handheld Product Matrix

Handheld Product Matrix

Browse our selection of handheld thermal cameras with key specs and pricing to help you find the perfect fit for your needs.

View PDF

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
