FLIR Spot Thermal Camera

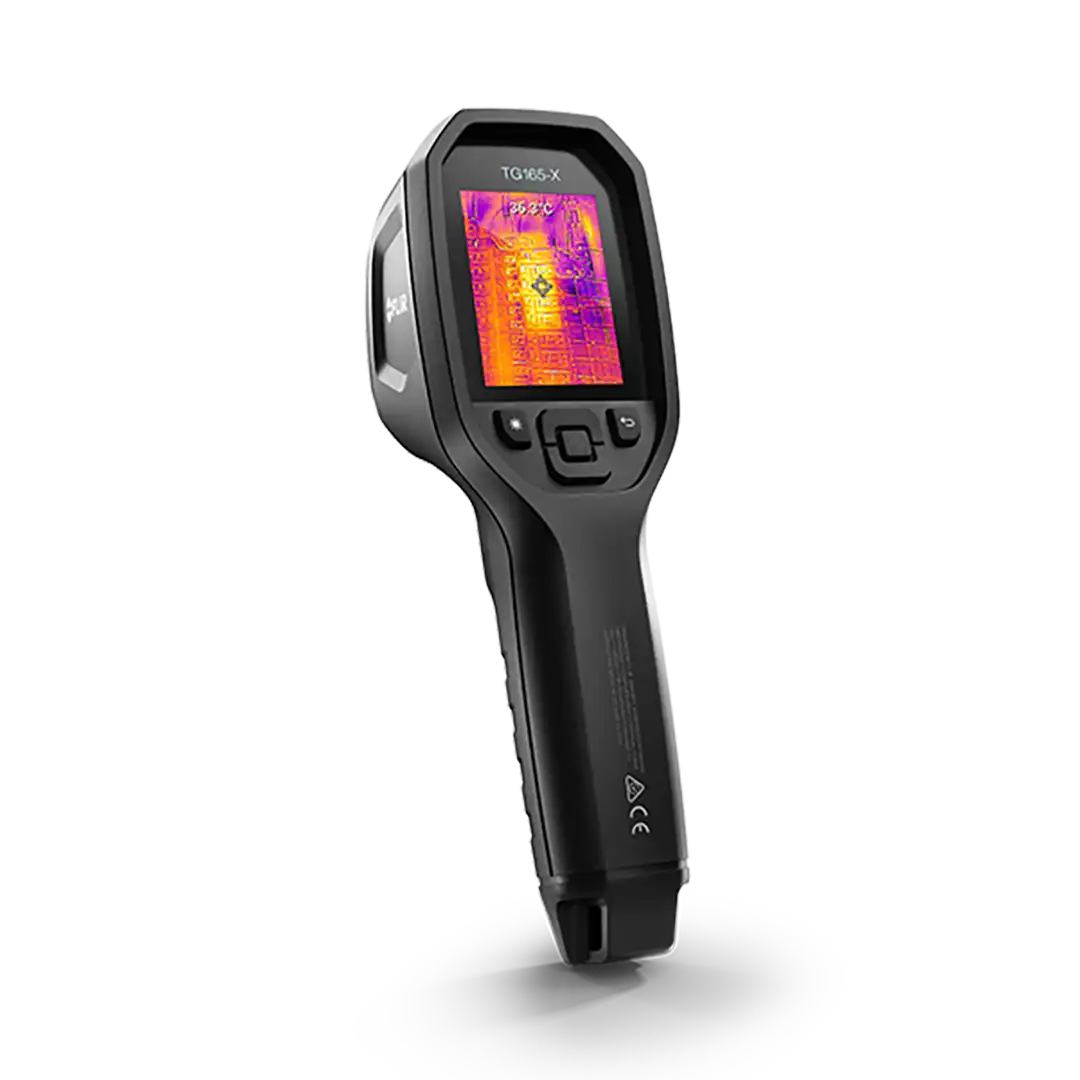

FLIR TG165-X Thermal Camera MSX

FLIR TG165-X Thermal Camera MSX

  • Thermal Imaging Resolution: 80 × 60 pixels (4,800 pixels) for clear thermal images.
  • Temperature Measurement Range: -25°C to 300°C (-13°F to 572°F), suitable for various applications.
  • Accuracy: ±1.5°C (±3°F) within 50°C to 100°C (122°F to 212°F); ±2.5°C (±5°F) from 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F); ±3°C (±7°F) from -25°C to 0°C (-13°F to 32°F).
  • Thermal Sensitivity (NETD): <70 mK, detecting subtle temperature differences.
  • Field of View (FOV): 51° × 66° for a wide viewing area.
  • MSX® Image Enhancement: Multi-Spectral Dynamic Imaging adds visual details to thermal images for improved clarity.

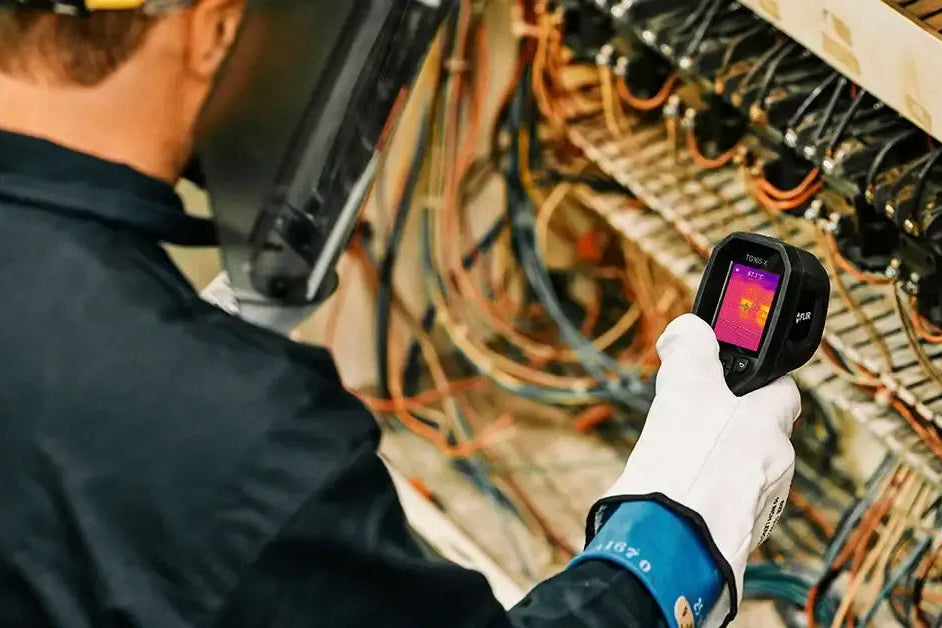

  • Bullseye Laser Pointer: Ensures accurate targeting of measurement areas.
  • Display: 2.4-inch TFT LCD with 320 × 240 pixels resolution for clear image viewing.
  • Storage Capacity: Internal memory of 4 GB, capable of storing up to 50,000 images.
  • Battery Life: Approximately 5 hours of continuous scanning; rechargeable via USB-C.
  • Durability: Designed to withstand a 2-meter (6.5 feet) drop; IP54-rated for protection against dust and water.
  • Emissivity Correction: Four pre-set levels with custom adjustment from 0.1 to 0.99 for accurate measurements on various surfaces.
  • Color Palettes: Offers six options, including Iron, Rainbow, Whitehot, Blackhot, Arctic, and Lava, to suit different inspection needs.
  • Worklight: Built-in LED flashlight to illuminate dark areas during inspections.
  • Compact and Lightweight: Measures 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 inches) and weighs 0.394 kg (13.9 ounces), making it portable and easy to handle.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$349.00 USD
$349.00 USD $349.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: 87501-0101
View full details

Product Information

FLIR TG165-X Thermal Camera MSX

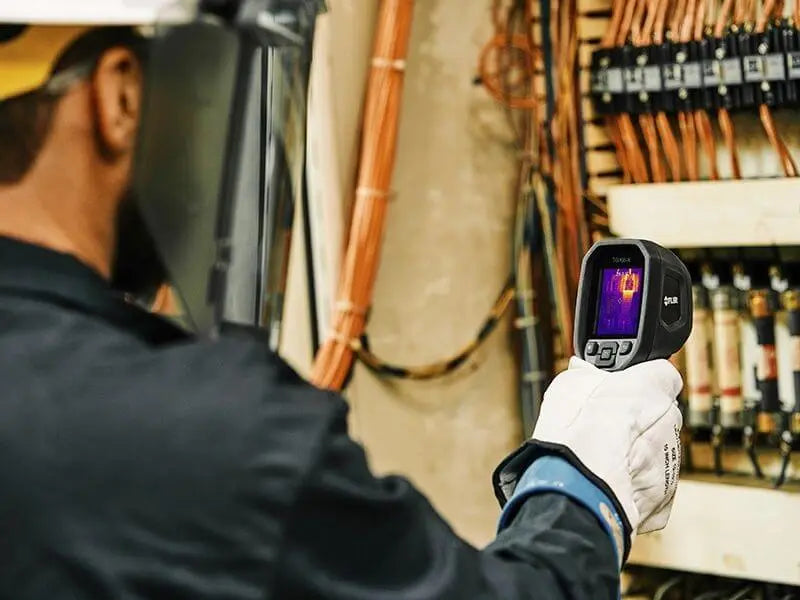

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

Enhanced Thermal Imaging with MSX® Technology

The FLIR TG165-X combines thermal and visible-light imaging using FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging) technology, delivering crisp and detailed thermal images. By overlaying visible-light outlines onto infrared images, the TG165-X ensures that fine details such as numbers, labels, and structural features remain clear, improving target identification and diagnostic accuracy. This advanced imaging capability makes it easier to detect hotspots, insulation issues, and electrical faults with confidence.

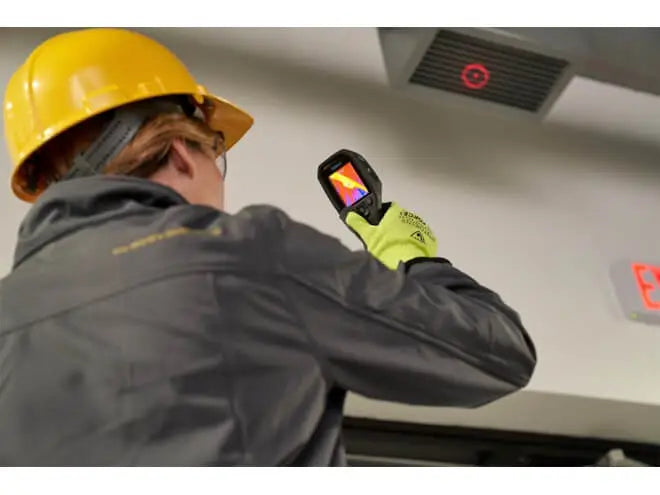

Wide Temperature Range for Industrial and HVAC Applications

Designed to handle demanding work environments, the FLIR TG165-X features a temperature measurement range from -25°C to 300°C (-13°F to 572°F). This broad range enables professionals to diagnose overheating components, detect failing mechanical parts, and troubleshoot HVAC systems effectively. The high thermal sensitivity ensures that even small temperature differences are clearly visible, making it a valuable tool for predictive maintenance and energy efficiency assessments.

Durable and Easy-to-Use for Field Inspections

Built for rugged conditions, the FLIR TG165-X features a drop-resistant housing that withstands falls from up to 2 meters (6.6 feet). Its ergonomic, pistol-grip design allows for one-handed operation, providing a comfortable and intuitive user experience. The simple point-and-shoot functionality makes it ideal for technicians, electricians, and inspectors who need fast, reliable thermal measurements without complex setup procedures.

Onboard Image Storage and Quick Data Transfer

The FLIR TG165-X is equipped with a built-in 8GB internal memory, allowing users to capture and store thousands of thermal images for later review. With a USB-C connection, data transfer is quick and seamless, making it easy to generate reports and share findings with teams. Whether performing routine inspections or troubleshooting critical systems, the TG165-X ensures accurate thermal data is always within reach.
