FOTRIC High-Performance Acoustic Camera

FOTRIC H6

FOTRIC H6

  • 162 MEMS Microphones: Provides high-resolution acoustic imaging for precise detection of air and gas leaks, partial discharge, and mechanical faults.
  • Advanced Acoustic Focus Mode: Filters out background noise, allowing users to isolate and pinpoint specific sound sources for accurate diagnostics.
  • Wide Frequency Range (2 kHz - 100 kHz): Detects a broad spectrum of sound frequencies, making it suitable for ultrasonic and audible noise detection.
  • Real-Time Acoustic Visualization: Transforms sound waves into clear, visual heatmaps overlaid on a live camera feed for intuitive leak detection and fault identification.
  • Adjustable Gain Control: Enhances sensitivity for detecting subtle leaks or faults in noisy industrial environments.
  • Long Detection Range: Capable of identifying issues from a distance, reducing the need for direct contact or close-range inspections.
  • Multi-Mode Operation: Includes specific modes for gas leak detection, mechanical fault analysis, and electrical partial discharge detection.
  • High-Resolution Optical Camera: Captures detailed images to complement acoustic overlays for comprehensive reporting.
  • Lightweight & Ergonomic Design: Designed for easy handheld use, reducing fatigue during extended inspections.
  • Built-In Data Logging & Analysis: Allows users to store, review, and analyze captured data directly on the device for better decision-making.
  • Wireless Connectivity & Data Transfer: Enables seamless sharing of reports and images via Wi-Fi, USB, or Bluetooth to streamline workflow.
  • Durable & Rugged Construction: Engineered to withstand harsh industrial environments for reliable, long-term use.
  • Intuitive Touchscreen Interface: User-friendly controls for quick setup and operation, even for first-time users.
  • Versatile Industrial Applications: Ideal for electrical maintenance, mechanical reliability, compressed air leak detection, HVAC system inspections, and more.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$9,999.00 USD
$9,999.00 USD $9,999.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: FOTRIC H6
View full details

Product Information

FOTRIC H6

The FOTRIC H6 Acoustic Imaging Camera is a high-performance device designed for industrial inspection, excelling in air and gas leak evaluation as well as partial discharge detection. It features an array of 162 MEMS digital microphones, providing exceptional sensitivity to detect even the faintest acoustic signals. The camera operates in two primary modes: LQ Mode, which displays the leakage level, and PD Mode, which presents a PRPD diagram adapted to different AC frequencies (50/60Hz). Its Acoustic Focus Mode filters out background noise, ensuring precise targeting and accurate diagnostics. The FOTRIC H6 is equipped with a 5-inch, 1280x720 pixel LCD touchscreen display with Gorilla Anti-Explosion glass, and includes two batteries, each supporting continuous work for over 4 hours, depending on the environment and workload. With a compact and lightweight design, weighing approximately 2.86 pounds (1.3 kg), and an IP54 enclosure rating, it is both portable and durable, suitable for various industrial environments. The device also supports on-device analysis and comes with AnalyzIR professional thermal and acoustic image analysis software for comprehensive post-inspection evaluation.

Pinpoint Hidden Air Leaks and Electrical Discharges Instantly

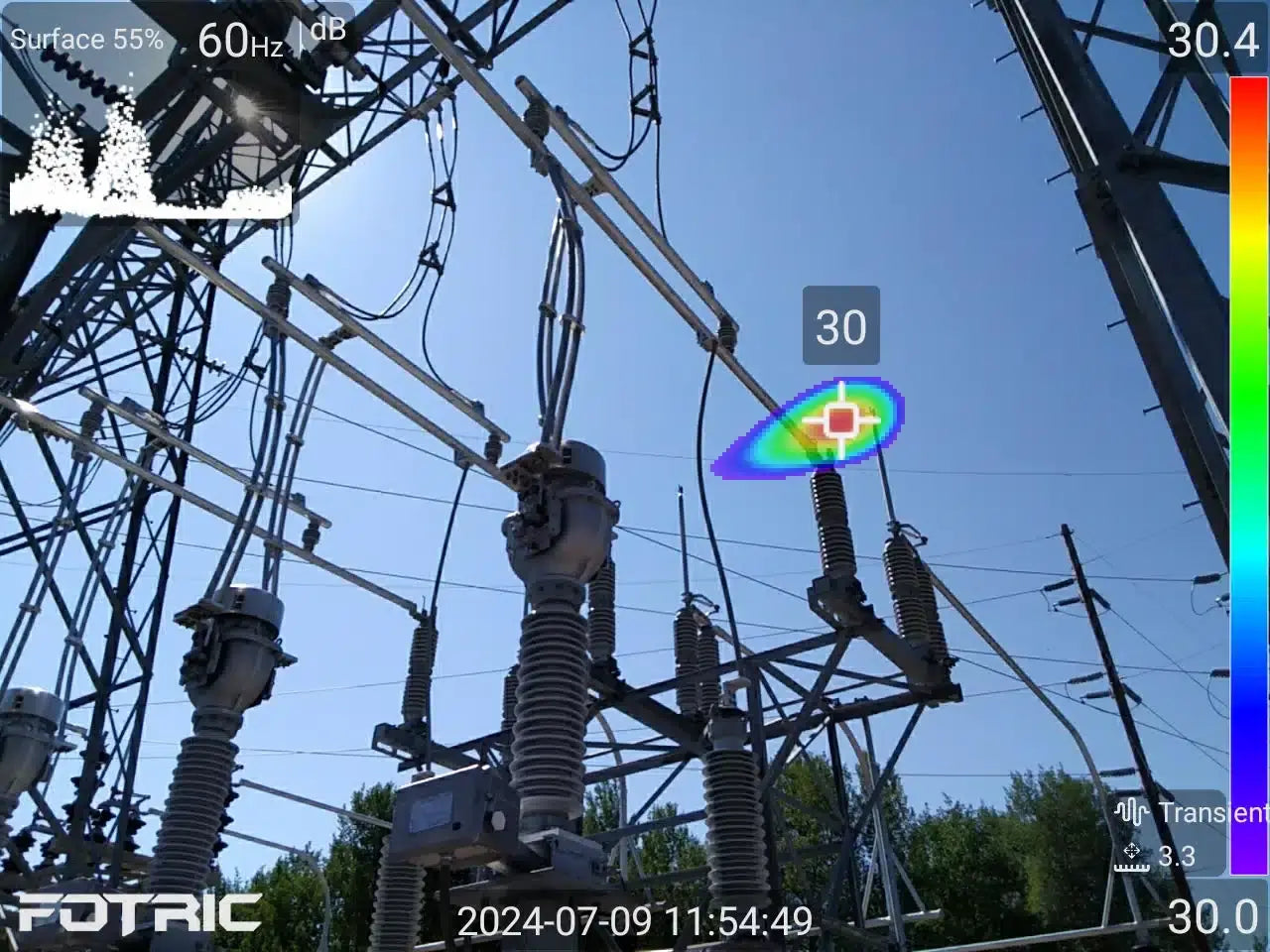

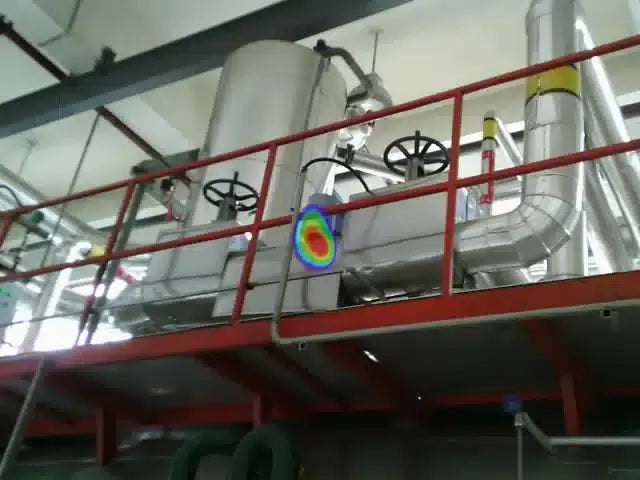

The FOTRIC H6 revolutionizes leak detection and predictive maintenance with its state-of-the-art acoustic imaging technology. By visualizing sound waves, it quickly identifies air, gas, and vacuum leaks, as well as partial electrical discharges such as corona, tracking, and arcing—even in noisy industrial environments. Its advanced microphone array precisely locates issues in real time, helping professionals reduce energy waste, prevent costly failures, and maintain system efficiency with minimal downtime.

Advanced AI-Driven Sound Source Detection

Equipped with an ultra-sensitive 128-microphone array, the FOTRIC H6 intelligently filters out background noise and isolates the exact source of leaks or electrical faults. The AI-powered system automatically classifies and prioritizes detected anomalies, ensuring maintenance teams can focus on the most critical issues. With real-time sound visualization and intuitive controls, users can locate problems up to 200 meters away, making inspections safer, faster, and more efficient.

Seamless Integration with Digital Workflows

The FOTRIC H6 isn’t just powerful—it’s built for seamless integration into modern industrial workflows. The Wi-Fi, Bluetooth, and USB-C connectivity enable quick data transfer, remote collaboration, and real-time reporting. Using the FOTRIC AcousticViewer software, users can analyze sound patterns, generate automated reports, and share findings with their team instantly. Whether conducting routine inspections or troubleshooting urgent issues, the H6 ensures professionals stay ahead of potential failures.

Ergonomic Design for On-the-Go Inspections

Designed for efficiency and comfort, the FOTRIC H6 features a lightweight, handheld design with an intuitive touchscreen interface that simplifies navigation. The rugged construction ensures durability in industrial settings, while the long-lasting battery supports extended fieldwork. With its easy one-handed operation and high-contrast display, professionals can confidently perform inspections in challenging lighting or hazardous environments, improving both productivity and safety.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
