FOTRIC Advanced Sharpview Thermal Camera

FOTRIC Ti7

FOTRIC Ti7

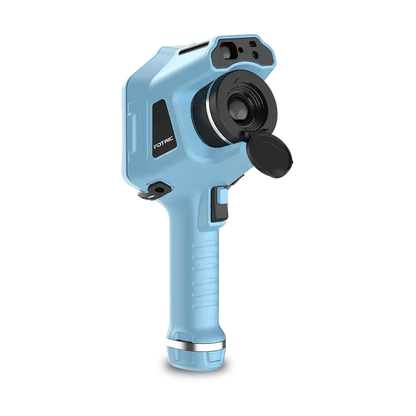

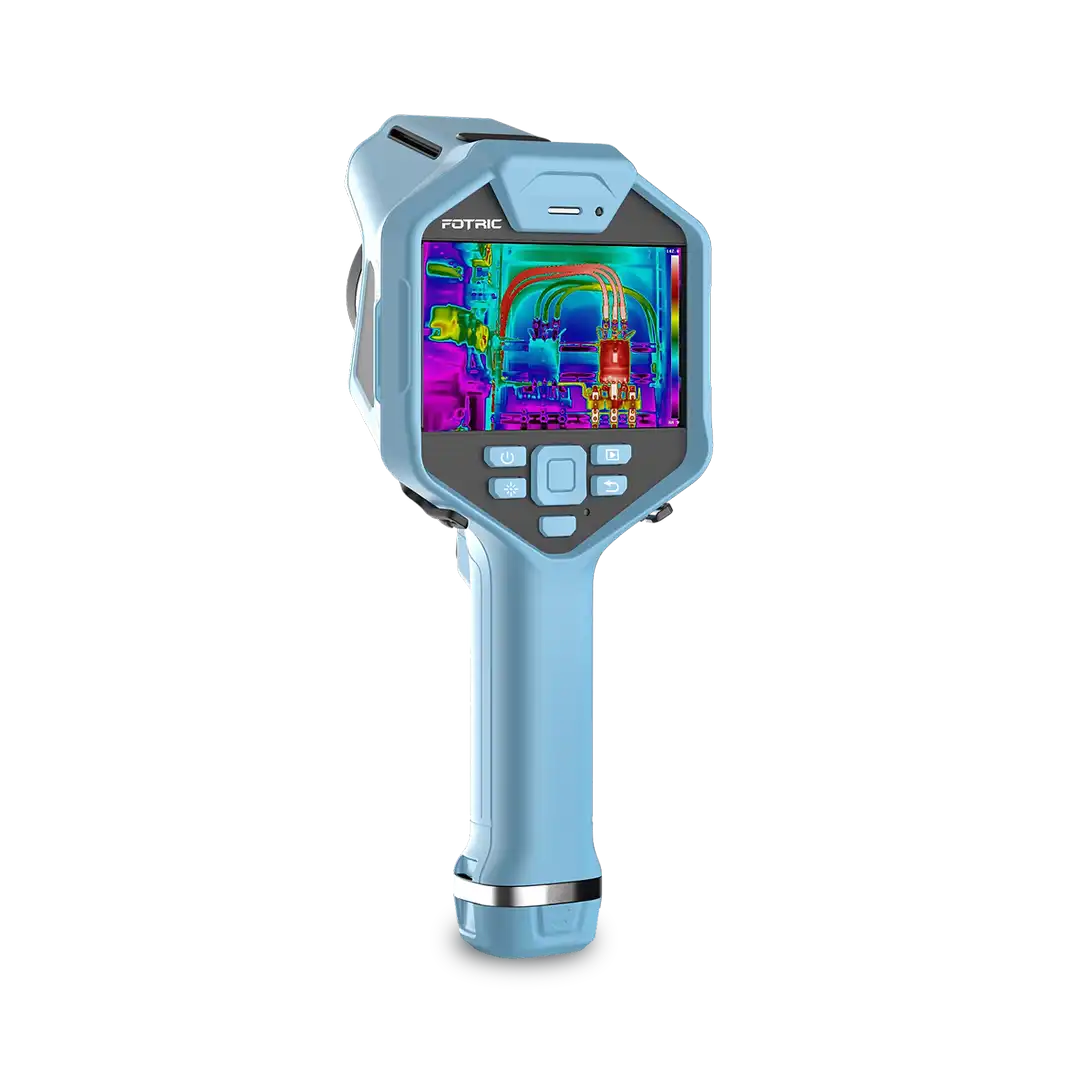

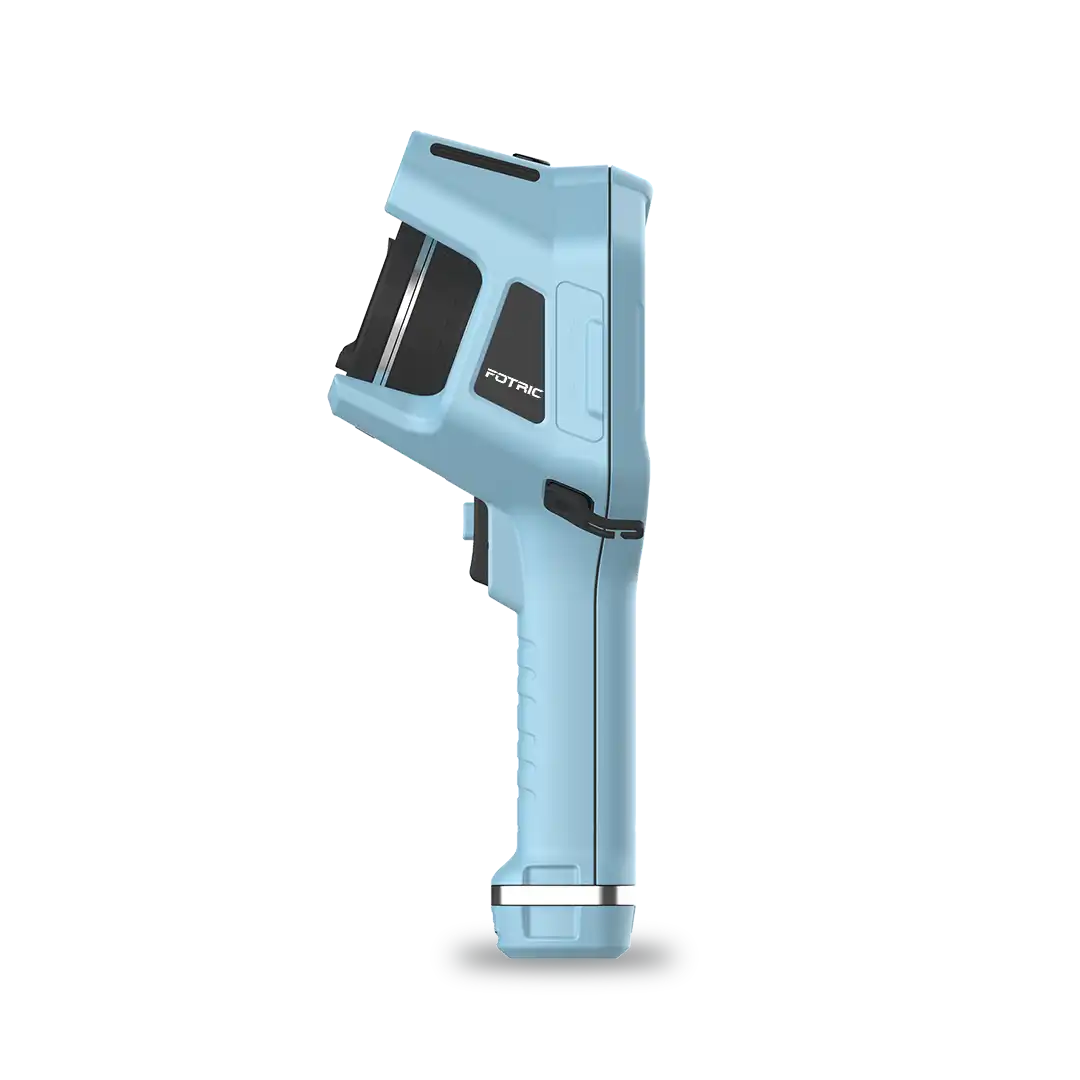

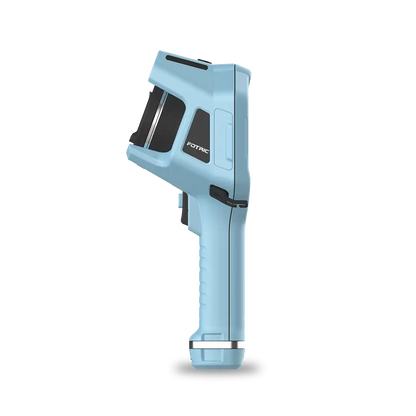

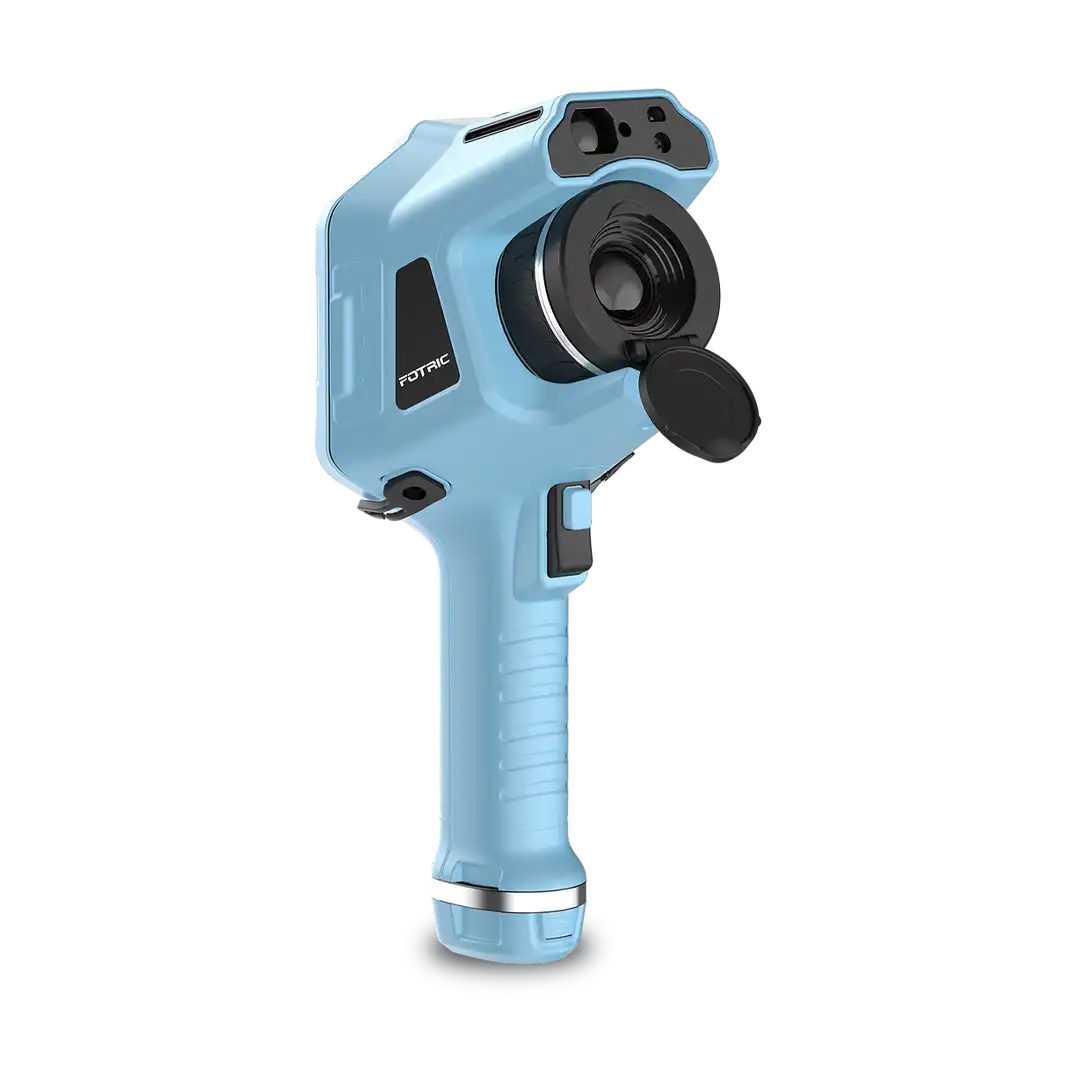

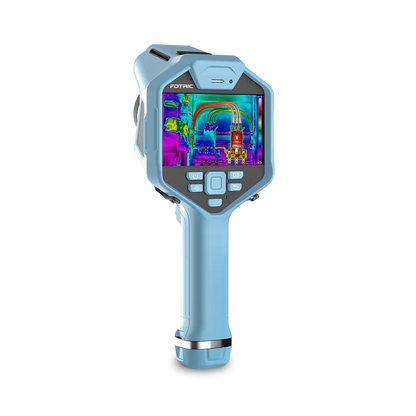

The FOTRIC TI7 Advanced SharpView Thermal Camera is a professional‑grade inspection tool designed for industrial diagnostics, predictive maintenance, and scientific research. With its high resolution, advanced autofocus system, and SharpView image enhancement technology, the TI7 delivers exceptional clarity and precision to help professionals detect hidden faults, streamline workflows, and ensure equipment reliability.

  • Infrared Resolution: 640 × 480 pixels for superior image clarity and detailed thermal analysis.
  • SharpView Technology: Enhances image sharpness and detail, improving visibility of structural and textural features.
  • Thermal Sensitivity (NETD): <30 mK (0.03°C) ensures detection of subtle temperature differences.
  • Temperature Measurement Range:
    • –20°C to 120°C (–4°F to 248°F)
    • 0°C to 650°C (32°F to 1202°F)
    • 300°C to 2000°C (572°F to 3632°F)
  • Accuracy: ±2°C or ±2% of reading at 25°C (77°F).
  • Focus Modes: TurboFocus™ intelligent autofocus system with continuous AF, laser‑assisted AF, thermal contrast AF, touch AF, and manual focus.
  • Field of View (Standard Lens): 25° × 19° with optional wide‑angle and telephoto lenses available.
  • Display: 5" IPS LCD touchscreen, 1280 × 720 pixels, Gorilla® anti‑explosion glass.
  • Frame Rate: 30 Hz for smooth, real‑time imaging.
  • Measurement Tools: Multiple spot markers, rectangles, circles, and measurement lines directly on device.
  • Image Modes: Thermal, Digital, Picture‑in‑Picture, and T‑DEF® blend.
  • Palettes: 16 standard palettes including Grey, Iron, Rainbow, Medical, Prism, and more.
  • Digital Camera: Integrated 13 MP industrial‑grade camera for reference images.
  • Video Recording: Radiometric thermal video (IRS) and MP4 non‑radiometric video recording.
  • On‑Device Analysis: Supports radiometric image and video data with QR code/barcode scanning.
  • Annotation: Voice, text, tags, and favorites saved with images and video.
  • Storage: Micro SD card, 128 GB standard, expandable up to 1 TB.
  • Connectivity: Radiometric IR video streaming via USB‑C 3.0; non‑radiometric streaming via HDMI; remote control supported through AnalyzIR® and IRExplorer™.
  • Battery: Rechargeable Li‑ion, 7.4V, 3500mAh; ≥4 hours per battery.
  • Durability: IP54 enclosure rating; engineered to withstand 2‑meter drops with standard lens.
  • Weight: <1.0 kg including battery (lens not included).
  • Operating Temperature: –20°C to 50°C (–4°F to 122°F).
  • Calibration Cycle: Recommended every 2 years.

The FOTRIC TI7 Advanced SharpView Thermal Camera is the ideal solution for professionals who demand high resolution, enhanced image clarity, and rugged reliability to make fast, confident decisions in industrial inspections and predictive maintenance.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: FOTRIC Ti7-L44
View full details

Product Information

FOTRIC Ti7

The FOTRIC Ti7 Advanced SharpView Thermal Camera is a high-performance imaging tool designed for precision diagnostics in industrial, electrical, mechanical, and building applications. Featuring a 640×480 infrared resolution and industry-leading <30mK thermal sensitivity, it captures even the most subtle temperature variations for accurate fault detection. Its TurboFocus® system offers laser-assisted, contrast-based autofocus, touch autofocus, and manual focus options to ensure sharp, clear images with minimal effort. A wide 44°×33° field of view enhances efficiency by covering larger areas in a single frame, while the 5-inch 1280×720 touchscreen provides an intuitive interface for real-time analysis. Built for durability, the Ti7 is lightweight and rugged, making it ideal for demanding environments. With an extended battery life of over four hours, comprehensive measurement tools, and versatile image modes—including thermal, digital, picture-in-picture, and T-DEF®—the Ti7 is a reliable, advanced solution for professionals seeking high-precision thermal imaging and diagnostics.

High-Resolution Imaging for Precision Diagnostics

The FOTRIC Ti7 Advanced SharpView Thermal Camera features a 640×480 infrared resolution, capturing fine thermal details for highly accurate diagnostics. This high-resolution imaging allows professionals to detect even the smallest temperature variations in electrical, mechanical, and building inspections, ensuring precise identification of potential issues before they become costly failures.

TurboFocus® System for Effortless and Accurate Measurements

Equipped with the TurboFocus® system, the Ti7 offers continuous, laser-assisted thermal contrast autofocus, touch autofocus, and manual focus options. This advanced focusing system ensures crisp, clear thermal images with minimal effort, reducing inspection time and improving measurement accuracy in various industrial and field applications.

Superior Thermal Sensitivity for Detecting Subtle Anomalies

With an industry-leading thermal sensitivity of <30mK at 30°C, the Ti7 can detect even the slightest temperature differences. This capability makes it an invaluable tool for professionals monitoring equipment performance, detecting energy inefficiencies, and identifying hidden faults in electrical and mechanical systems before they escalate.

5-Inch Touchscreen and Versatile Image Modes for Enhanced User Experience

Featuring a high-definition 1280×720 touchscreen display, the Ti7 provides crystal-clear visuals and intuitive operation, making it easy to analyze thermal data in real time. The camera supports multiple imaging modes, including thermal, digital, picture-in-picture, and T-DEF®, allowing users to customize their inspections for different applications and improve diagnostic efficiency.
