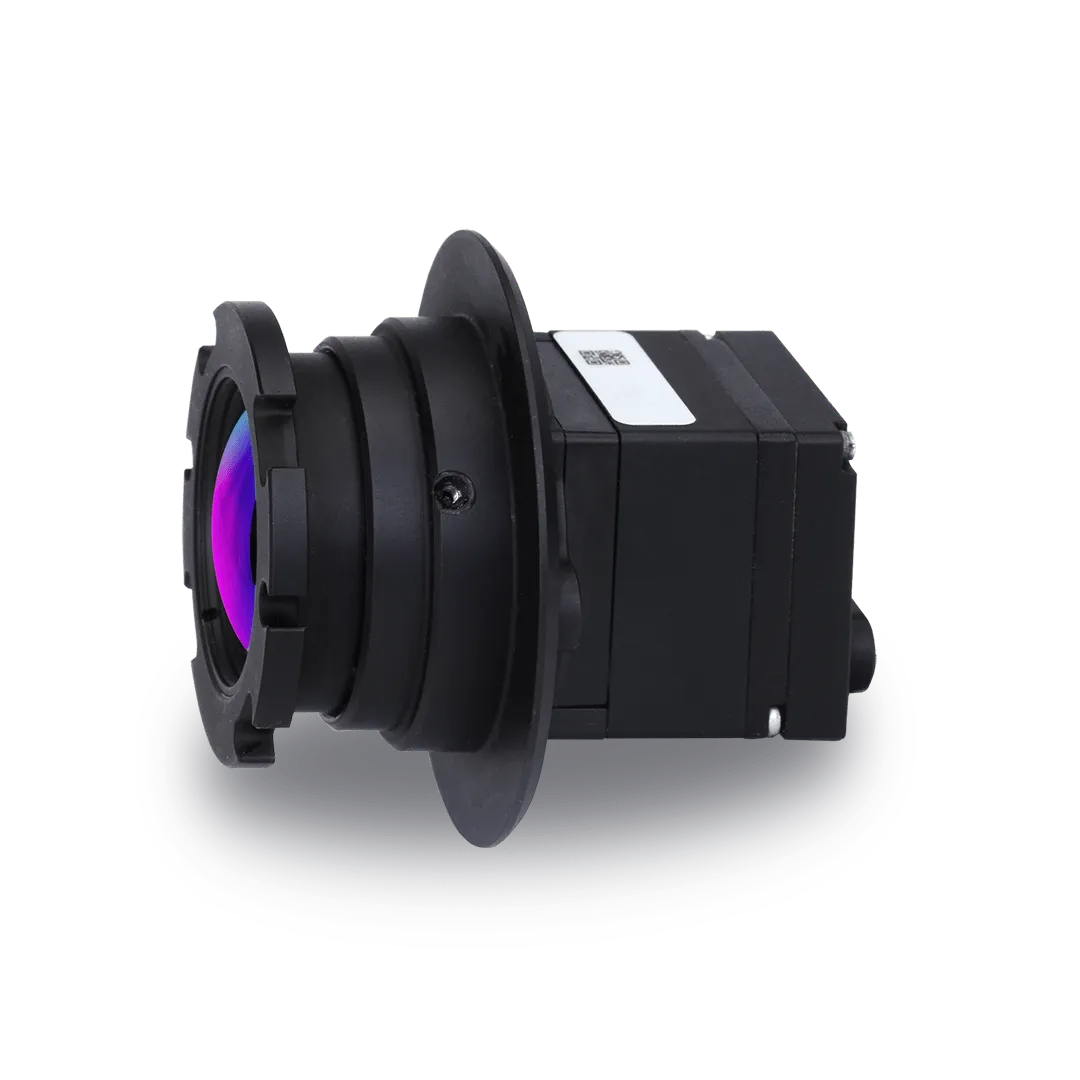

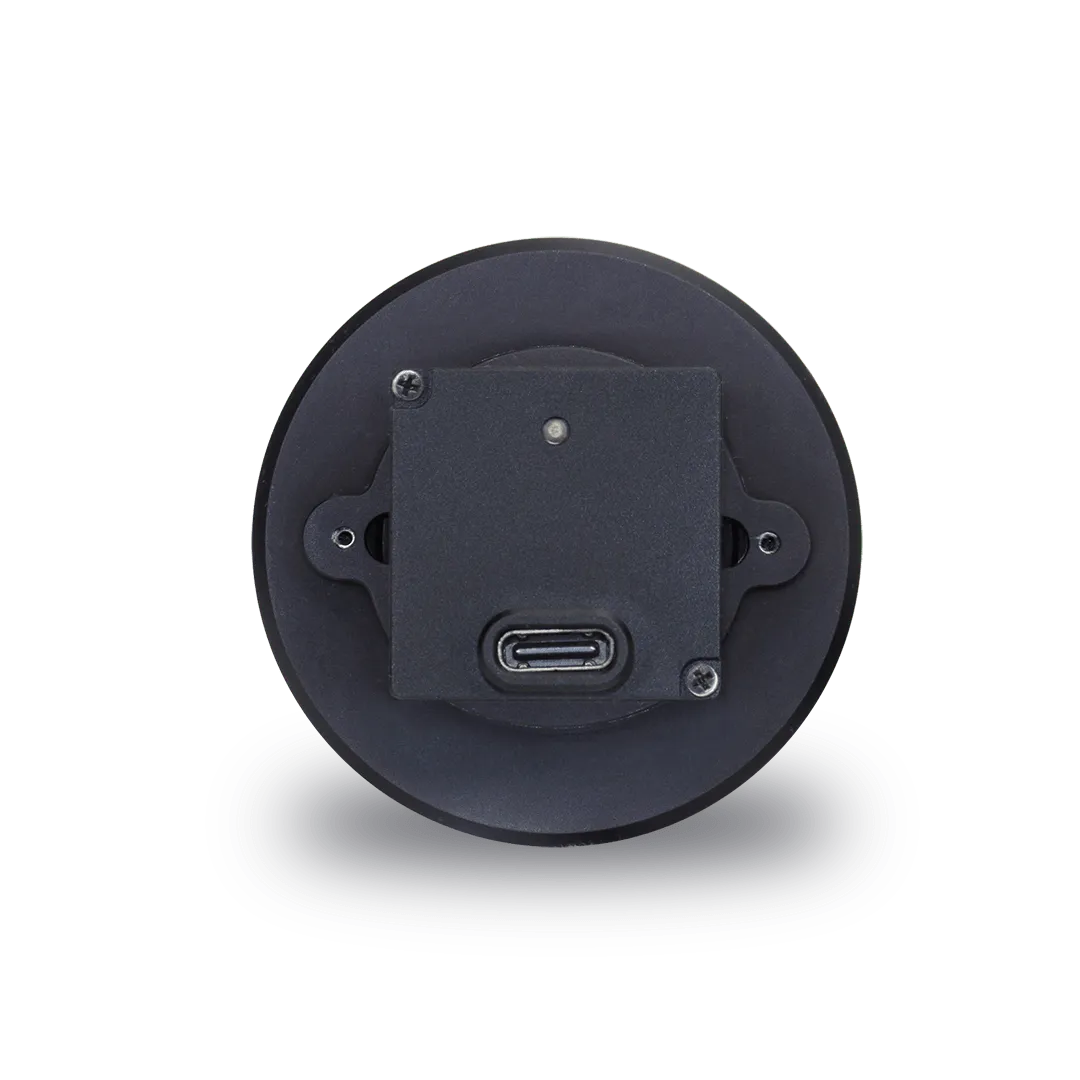

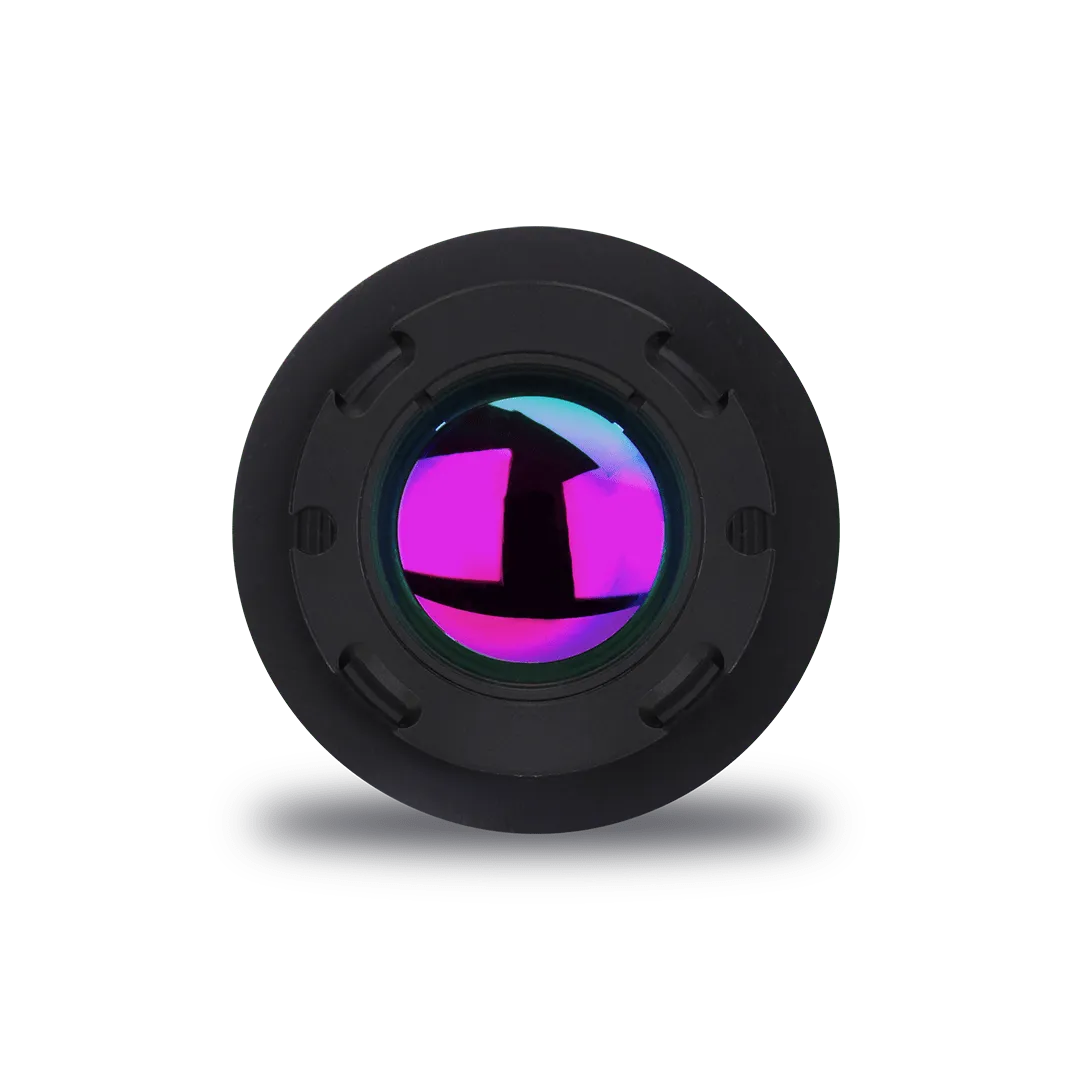

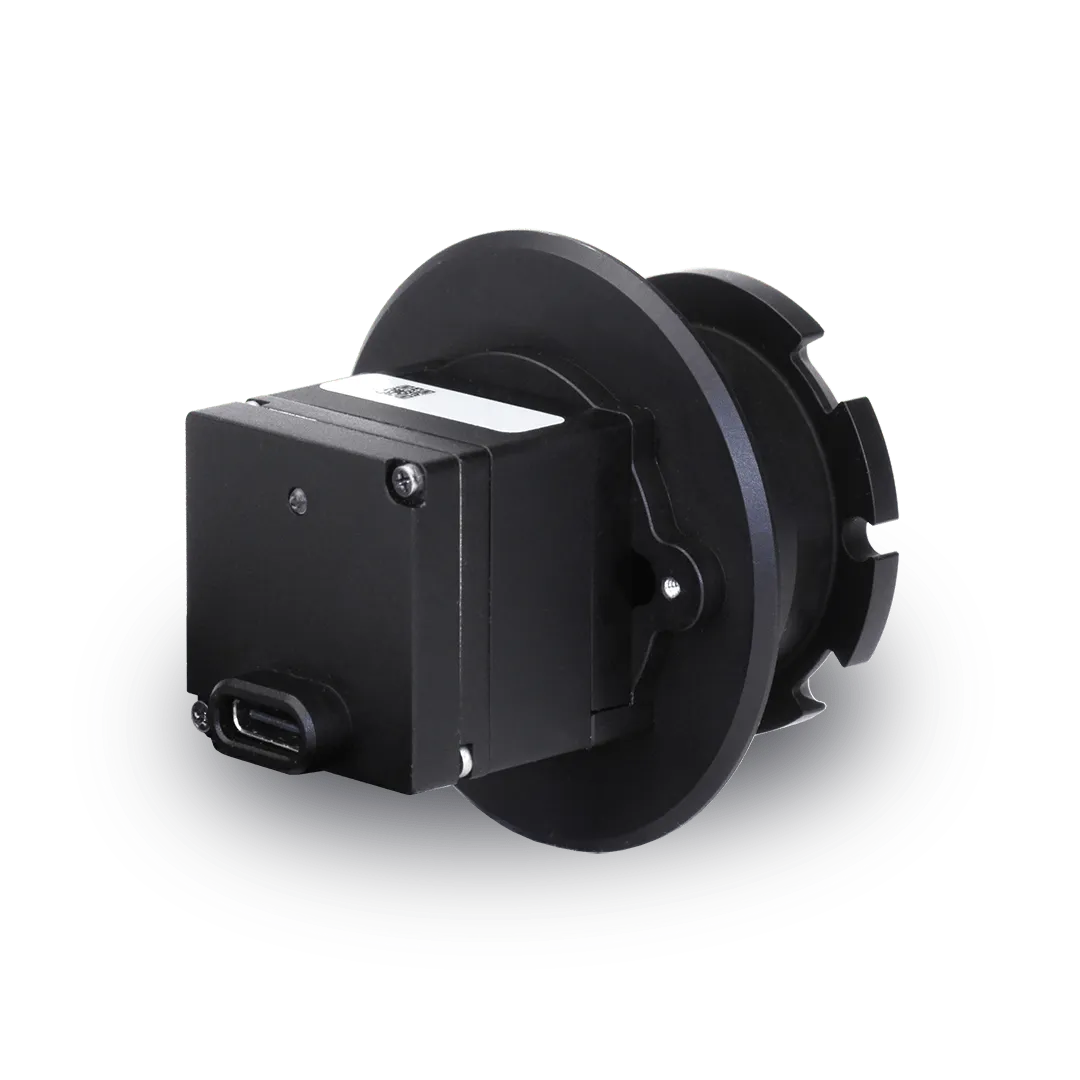

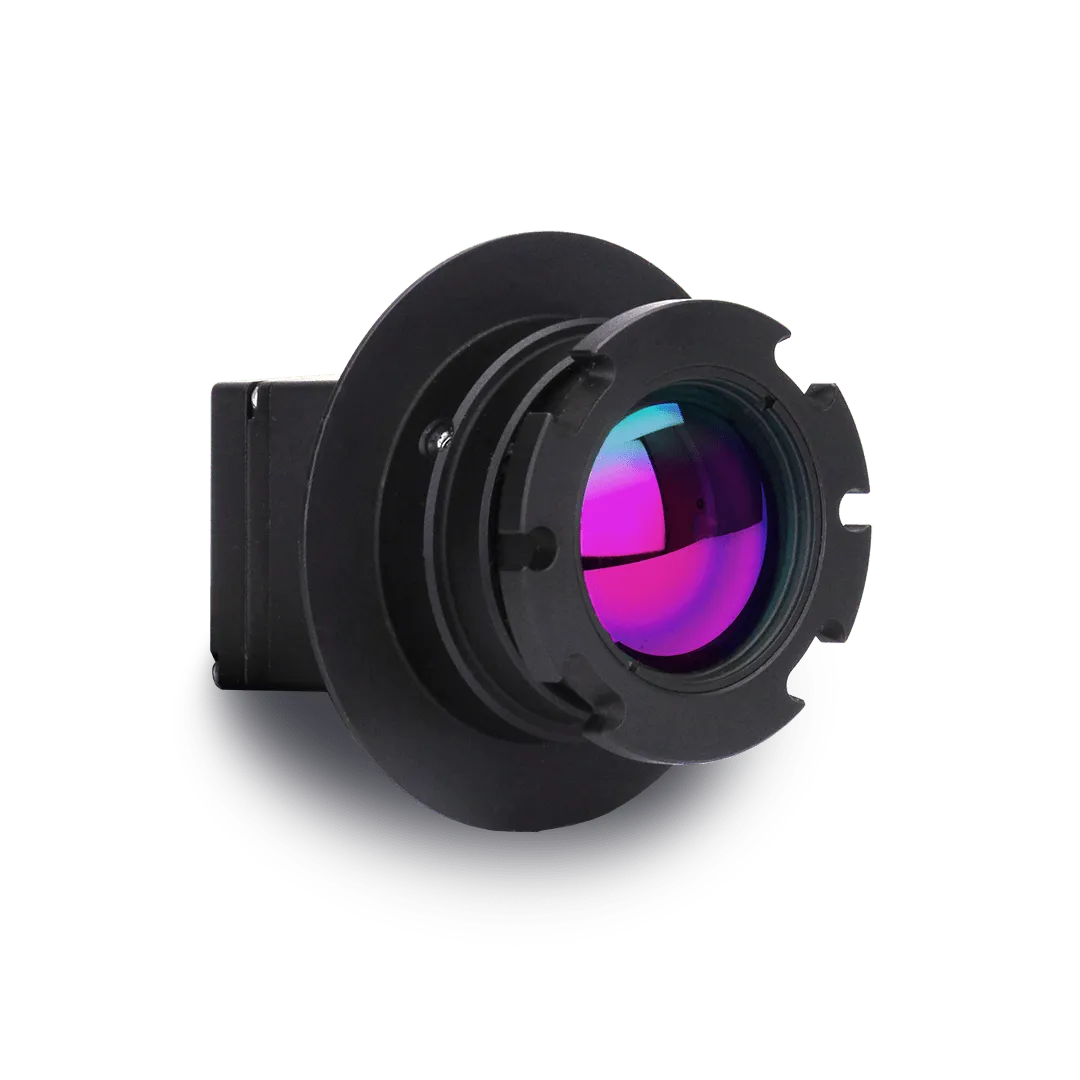

ICI GC-106 SF6 Gas Core

ICI GC-106 SF6 Gas Core



  • Thermal Imaging Resolution: 640 × 512 pixels for high-precision gas leak detection
  • Spectral Range: ~10.6 µm, tuned for sulfur hexafluoride (SF₆) and other gas detection
  • Temperature Measurement Range: –20°C to 120°C (–4°F to 248°F), suitable for industrial applications
  • Accuracy: ±3°C (±5.4°F) or ±3% of reading
  • Field of View (FOV): Lens dependent (call for lens options)
  • Image Frequency: 25 Hz for real-time leak visualization
  • Detector Type: Uncooled VOx microbolometer (UFPA)
  • Thermal Sensitivity (NETD): <20 mK at 30°C (86°F)
  • Focus: Lens dependent
  • Interfaces: RS-232, UART (3.3V), analog (PAL/NTSC), and digital (BT.656, LVCMOS, LVDS) video output
  • Video Features: Horizontal/vertical/diagonal mirror, white hot or black hot polarity, digital enhancement and denoising, adjustable brightness, 1x–8x continuous zoom, reticle overlay, and palette support
  • Power: 4V–6V DC, 1.3W typical, with over-voltage, under-voltage, and reverse polarity protection
  • Durability: Shock rated to 80 G, vibration to 6.06 G
  • Humidity Tolerance: 5% to 95% non-condensing
  • Operating Temperature Range: –20°C to 50°C (–4°F to 122°F)
  • Storage Temperature Range: –45°C to 85°C (–49°F to 185°F)
  • Dimensions: 26 × 26 × 22 mm (1.02 × 1.02 × 0.87 in), without lens
  • Weight: 21 g (0.74 oz), without lens
  • Gas Detection Capability: Sulfur hexafluoride (SF₆), ammonia, ethylene, crotonaldehyde, vinyl chloride, trichloroethylene, propene, cyclopropanone, acrylonitrile, ethyl cyanoacrylate, 2-chloropropylene, allyl bromide, 2-butynal, and C₃H₅FC

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$9,995.00 USD
$9,995.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: CC.AB.GC106
View full details
()

Powered by Salepify App

Product Information

ICI GC-106 SF6 Gas Core

The GC-106 core is specially designed to quickly, accurately, and safely detect and locate gas leaks - without system downtime. Temperature measurement up to 120°C (248°F) meets the requirements of industrial settings and is ideal for petroleum, chemical, natural gas, and electric power applications. Monitoring for gas leaks assists in daily equipment maintenance, accident prevention, and environmental protection. The GC-106 can be integrated into fixed mounted and handheld devices

Targeted Thermal Detection for SF₆ and Industrial Gases

The ICI GC-106 is a compact thermal core engineered for detecting sulfur hexafluoride (SF₆) and a wide range of industrial gases. With a 640 × 512 pixel resolution and a spectral band centered around 10.6 μm, it provides precise leak detection without the need for system shutdowns. Designed for use in power utilities, chemical plants, and gas handling facilities, the GC-106 helps enhance safety, support maintenance, and reduce environmental impact.

Integrated Temperature Measurement and Gas Visualization

The GC-106 measures temperatures up to 120°C (248°F) and supports customized point, line, and area temperature analysis, allowing for accurate thermal readings in complex industrial environments. With an accuracy of ±3°C or ±3%, it delivers reliable thermal and gas detection data essential for equipment diagnostics and leak localization.

Lightweight, Embedded-Ready, and Rugged Design

Weighing just 21 grams (0.74 oz) and measuring 26 mm × 26 mm × 22 mm, the GC-106 is built for seamless integration into fixed-mount, portable, or UAV-based gas detection systems. Its low power consumption (1.3W), robust shock/vibration resistance, and IP-compliant build make it ideal for demanding industrial environments.

Versatile Video Outputs and Intelligent Image Processing

The ICI GC-106 offers both analog (PAL/NTSC) and digital (BT.656, LVCMOS, LVDS) video formats for flexible integration. It includes onboard features such as image polarity switching, 8x digital zoom, video mirroring, and reticle overlays, along with image enhancement and denoising for clearer, more actionable visual data. These features make the GC-106 a powerful solution for real-time leak detection and temperature monitoring.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
