Handheld Gas Imager

ICI G-Cam 106 SF6

Wide temperature range
Ideal for petroleum, chemical, natural gas, and electric power industries
Center/hot/cold spot temperature points
Alarming features
Stream media to a PC
Cloud services also offered

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$5,000.00 USD

~~$12,995.00 USD~~ $5,000.00 USD

Sale Sold out

SKU: CAISF6GC48

Quantity

View full details

Product Information

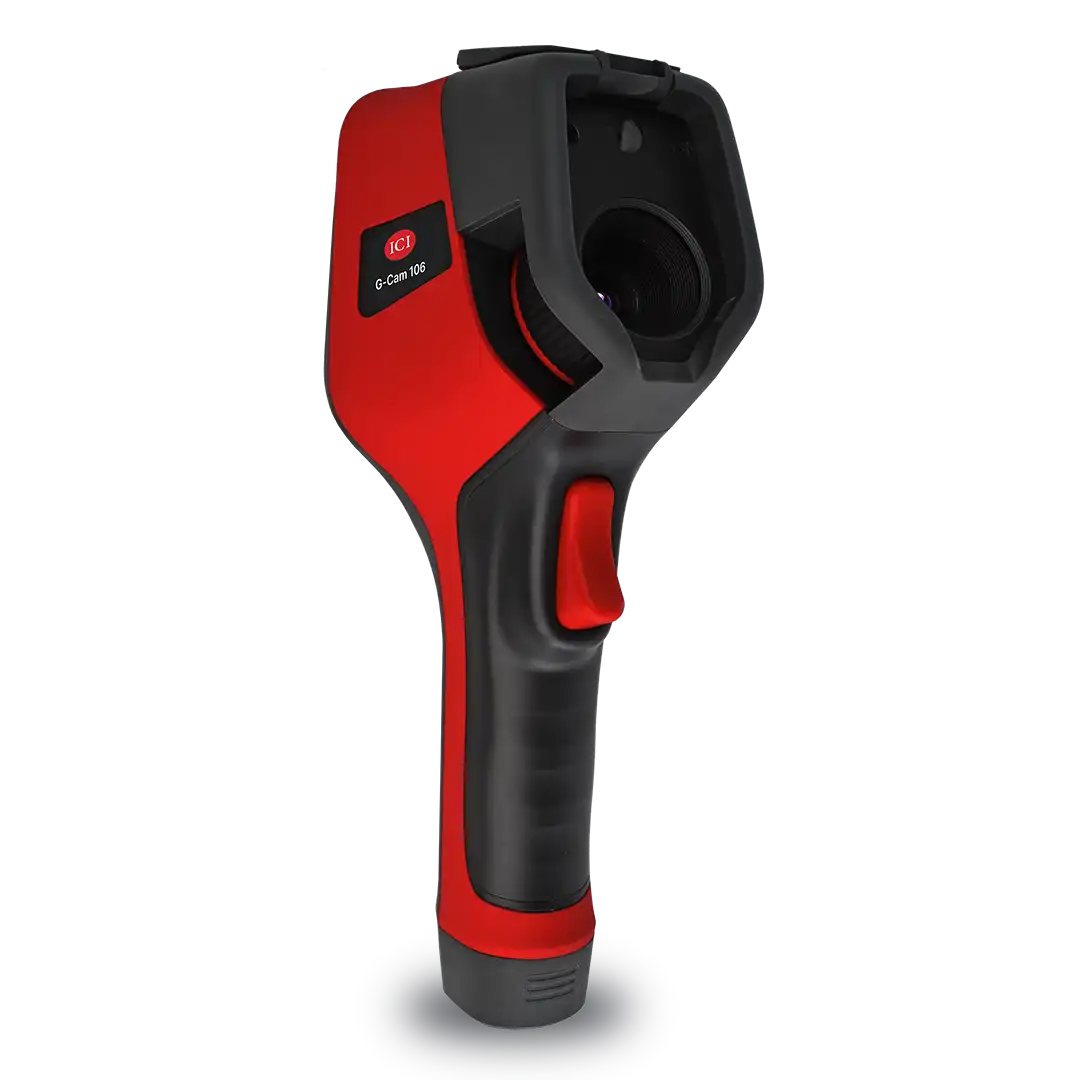

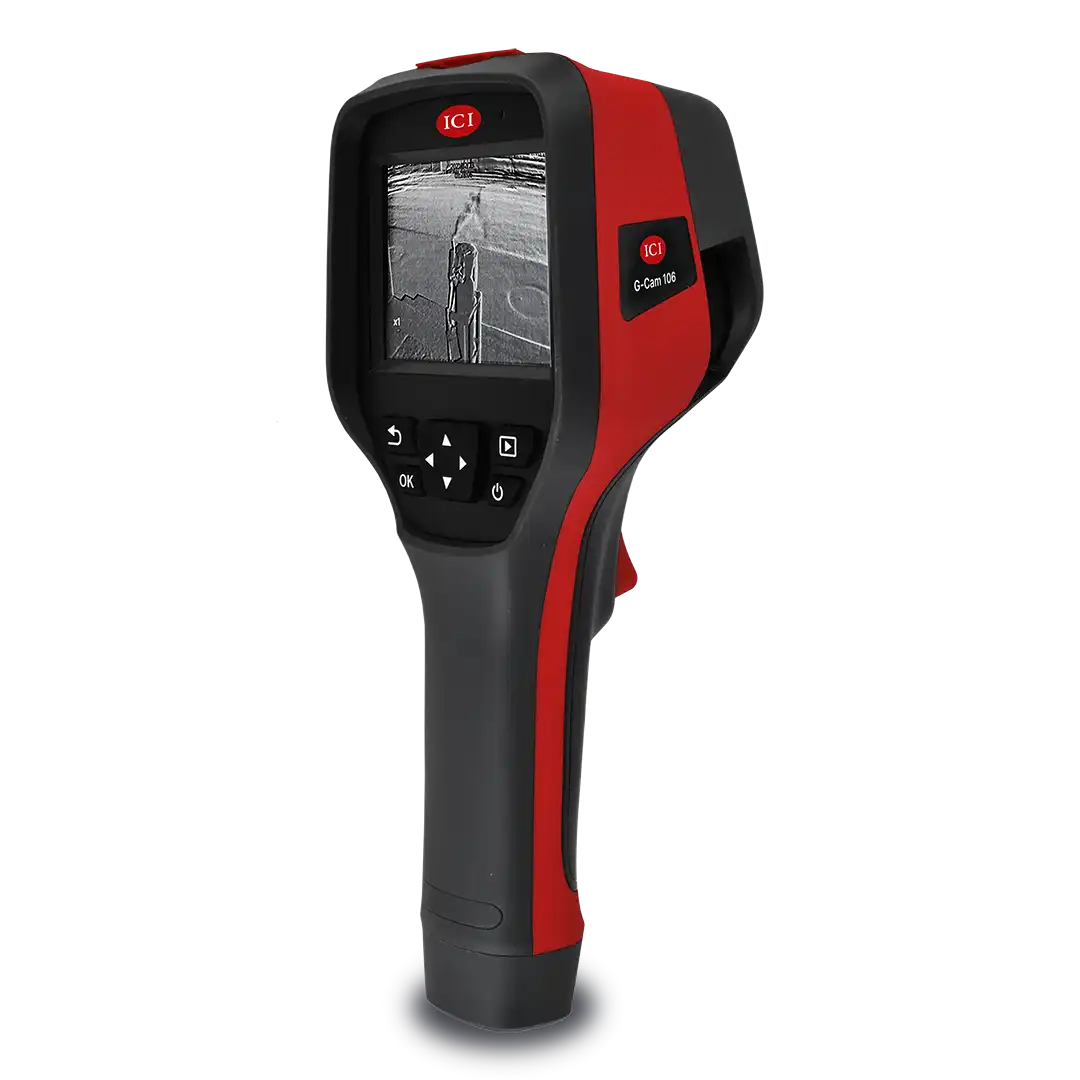

ICI G-Cam 106 SF6

The G-Cam 106 handheld gas imager provides clear vision of SF6 and other dangerous gases. Measuring up to up to 550°C (1022°F), the imager has an accuracy of ± 2°C (± 3.6°F) or ± 2%. Obtain sharp 640 x 512 resolution images with manual focus and stream media to a PC using the USB Type-C connector. Features tools for performing analysis on-the-go making it ideal for the petroleum, chemical, natural gas and electric power industries. Cloud services offered.

Uncooled Gas Detection + Temperature Measurement

Featuring a wide temperature range, the G-Cam 106 is ideal for petroleum, chemical, natural gas, and electric power industries to routinely inspect as well as maintain equipment, prevent accidents and protect the environment. Enable the center/hot/cold spot temperature points and alarming features to assist in detecting costly gas leaks. Stream media to a PC using the USB Type-C connector. The G-Cam 106 is easy to use and has reliable performance. Cloud services also offered.

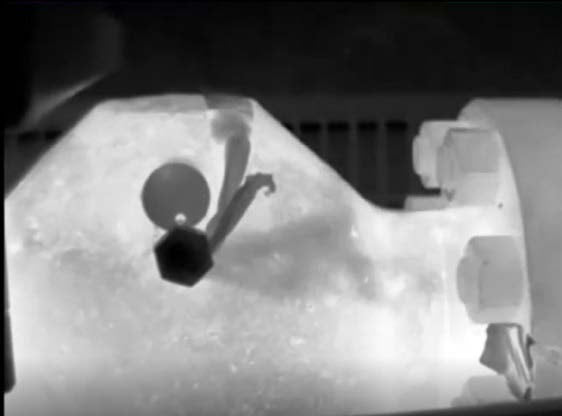

Long Lasting Sf6 Detection

The highly sensitive G-Cam 106 has an uncooled VOx detector designed specifically to detect SF6 and other gases. Each G-Cam 106 ships with two rechargeable, replaceable 4500 mAh batteries and a charging dock to meet the requirements of heavy daily use. Power management is built-in to conserve battery life.

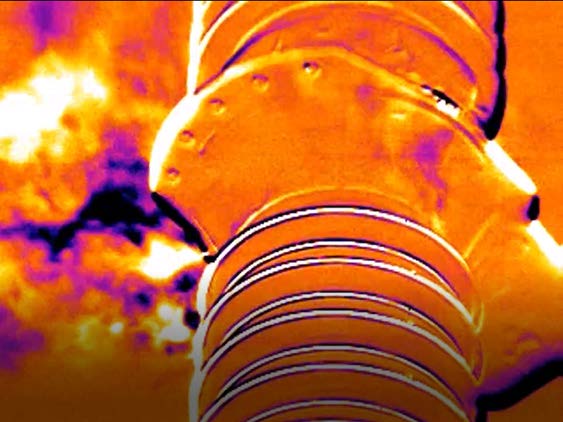

Hi-Res Thermal Images

Provides 640 x 512 high resolution thermal images. Captures visible images with 5 MP digital camera. Features 5 image modes: detail enhancement, picture-in-picture, visible, infrared and ICI Dual Vision for situational awareness and target location. 10 color palettes to enhance viewing and easily find hot spots. Save images to the provided MicroSD card.

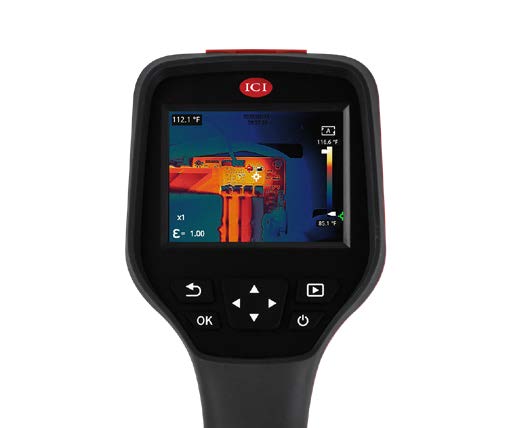

Easy to Use

Quick start instruction guide provided. No additional training required. One-handed, 5-button easy operation for fast inspections. Use handheld or on a tripod. Features a 3.5” LCD high definition (640 × 480) capacitive touch screen with adjustable screen brightness for on the spot analysis. Also utilize the Type-C connector to plug-and-play streaming to an external device

Digital Downloads from ICI

Product Specifications and Downloads

Documentation

ICI G-Cam 106 SF6 Data Specifications Sheet (PDF)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
