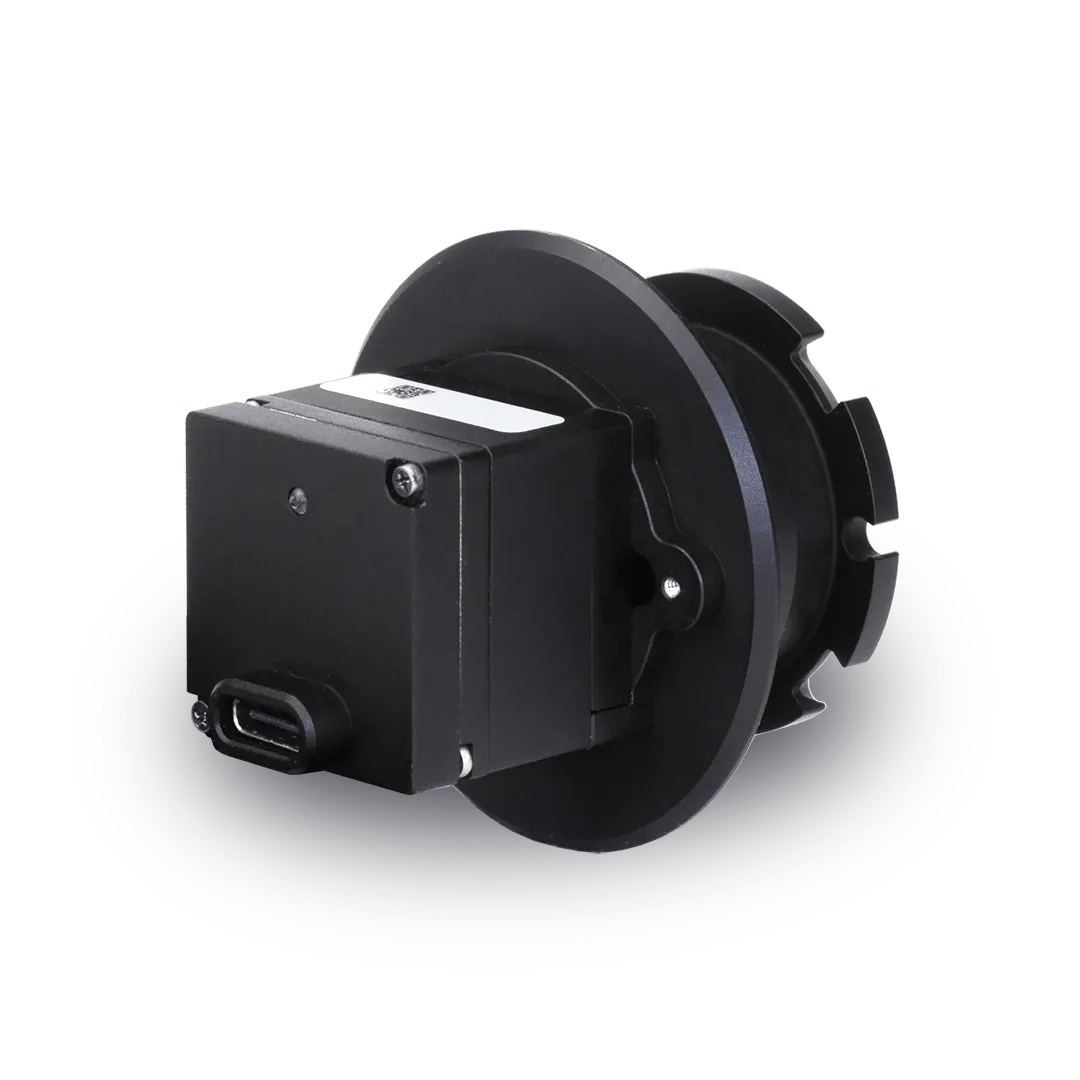

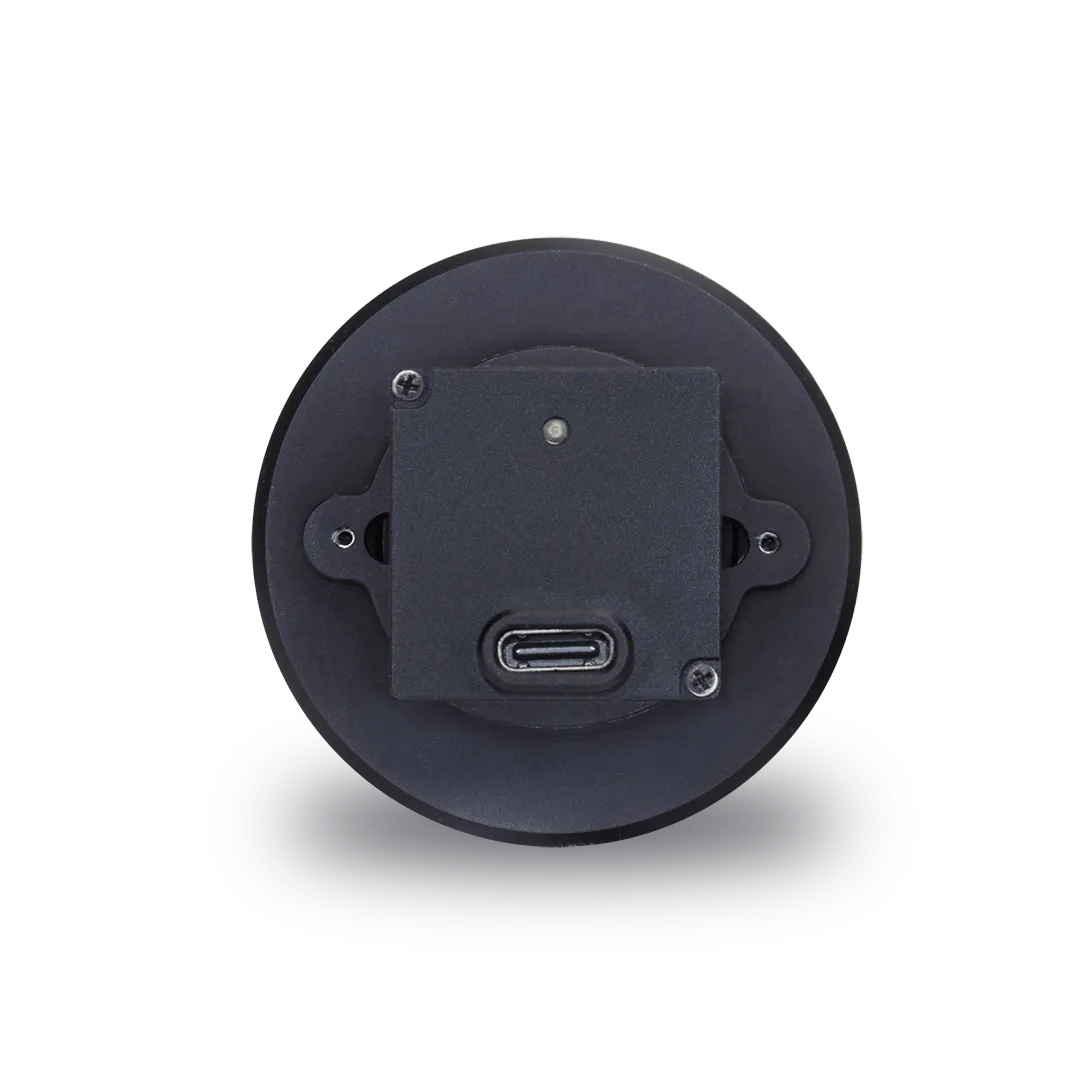

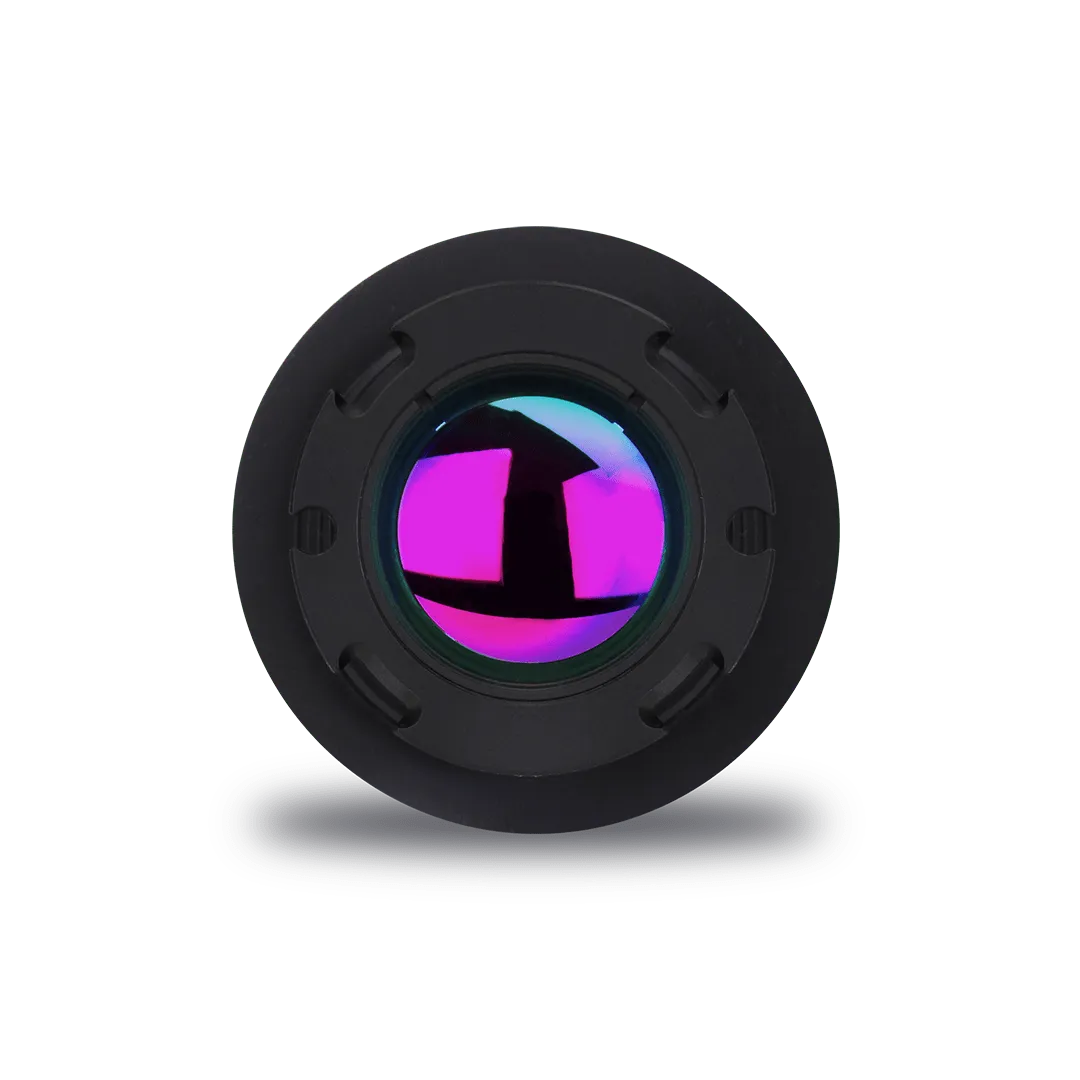

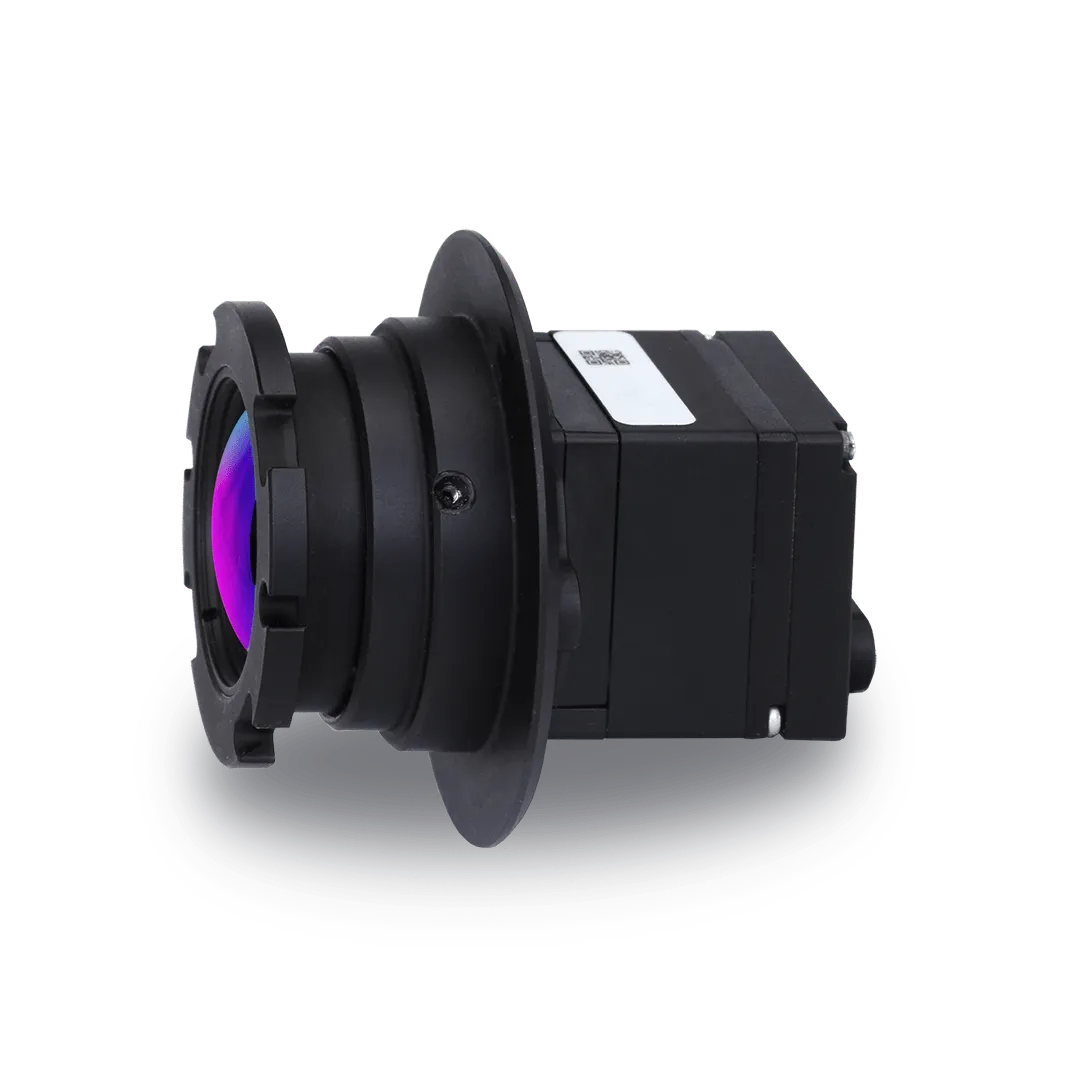

ICI GC-76 Methane Gas Core

ICI GC-76 Methane Gas Core



  • Thermal Imaging Resolution: 640 × 512 pixels for high-precision gas leak detection
  • Spectral Range: 7 µm to 8.5 µm, optimized for methane and other gas identification
  • Temperature Measurement Range: –20°C to 120°C (–4°F to 248°F), suitable for industrial monitoring
  • Accuracy: ±3°C (±5.4°F) or ±3% of reading
  • Field of View (FOV): Lens dependent (call for lens options)
  • Image Frequency: 25 Hz for real-time leak visualization
  • Detector Type: Uncooled VOx microbolometer (UFPA)
  • Thermal Sensitivity (NETD): <20 mK at 30°C (86°F)
  • Focus: Lens dependent
  • Interfaces: RS-232, UART (3.3V), analog (PAL/NTSC), and digital (BT.656, LVCMOS, LVDS) video output
  • Video Features: Horizontal/vertical/diagonal mirror, white hot or black hot polarity, digital enhancement and denoising, adjustable brightness, 1x–8x continuous zoom, reticle overlay, and palette support
  • Power: 4V–6V DC, 1.3W typical, with over-voltage, under-voltage, and reverse polarity protection
  • Durability: Shock rated to 80 G, vibration to 6.06 G
  • Humidity Tolerance: 5% to 95% non-condensing
  • Operating Temperature Range: –20°C to 50°C (–4°F to 122°F)
  • Storage Temperature Range: –45°C to 85°C (–49°F to 185°F)
  • Dimensions: 26 × 26 × 22 mm (1.02 × 1.02 × 0.87 in), without lens
  • Weight: 21 g (0.74 oz), without lens
  • Gas Detection Capability: Methane, nitrous oxide, sulfur dioxide, phenol, cyclopentanone, hydroxycarbonyl, R13, R13B1, R123, R125, R134A, R417A, R422A, and R508A

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: CC.AB.GC76
View full details

Product Information

ICI GC-76 Methane Gas Core

The GC-76 core is specially designed to quickly, accurately, and safely detect and locate gas leaks - without system downtime. Temperature measurement up to 120°C (248°F) meets the requirements of industrial settings and is ideal for petroleum, chemical, natural gas, and electric power applications. Monitoring for gas leaks assists in daily equipment maintenance, accident prevention, and environmental protection. The GC-76 can be integrated into fixed mounted and handheld devices.

Digital Downloads

Product Specifications and Downloads

Documentation

OGI Product Matrix

OGI Product Matrix

Browse our selection of OGI thermal cameras with key specs and pricing to help you find the perfect fit for your needs.

View PDF

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
