• FLIR PT-Series HD
1 4

Fixed Security Camera

PT-Series HD

PT-Series HD

  • Camera Type: FLIR PT-Series HD Dual-Sensor Pan/Tilt Camera
  • Thermal Sensor: 640 × 480 resolution; cooled or uncooled VOx microbolometer
  • Visible Sensor: 1080p HD with 30× optical zoom and autofocus
  • Thermal Lens Options: Fixed focal lengths or 4× optical zoom lenses
  • Spectral Range: 7.5–13.5 μm
  • Thermal Sensitivity: <50 mK NETD
  • Frame Rates: 30 Hz (NTSC), 25 Hz / 8.3 Hz (PAL) depending on model
  • Pan/Tilt Performance: Continuous 360° pan; ±90° tilt; speeds up to 60°/s pan and 30°/s tilt
  • Video Compression: Dual streams of H.264 and MJPEG for each sensor
  • Smart Features: Dual-sensor viewing mode, automated PTZ tracking, fixed camera-target handoff
  • Integration: Compatible with FLIR United VMS 8.0 and major third-party VMS; ONVIF compliant
  • Outputs: Simultaneous IP and analog video outputs for both thermal and visible-light channels
  • Housing: Weather-resistant with deicing and defogging capabilities; IP66 rated; vandal-resistant
  • Power Input: 24 VDC (21–30 VDC) or 24 VAC (21–30 VAC)
  • Power Consumption: Up to 203 W with heaters active
  • Operating Temperature: –26°F to +131°F (–32°C to +55°C)
  • Dimensions (L × W × H): 13.7 × 18.4 × 12.8 inches (348 × 467 × 326 mm)
  • Weight: Approximately 37 lbs (16.8 kg), depending on configuration

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$32,989.00 USD
$32,989.00 USD $32,989.00 USD
Sale Sold out
Shipping calculated at checkout.

427-0075-06-00
View full details

Product Information

PT-Series HD

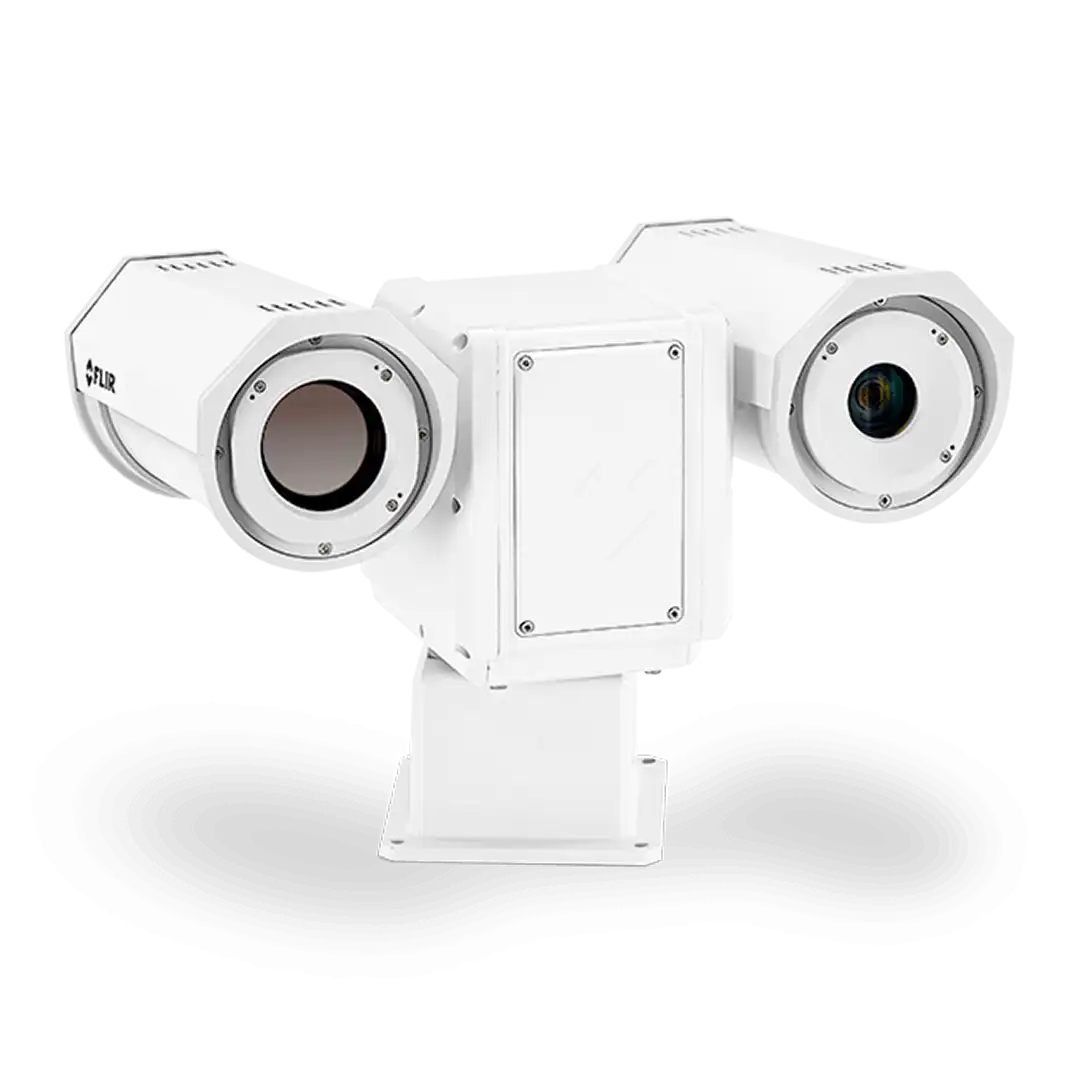

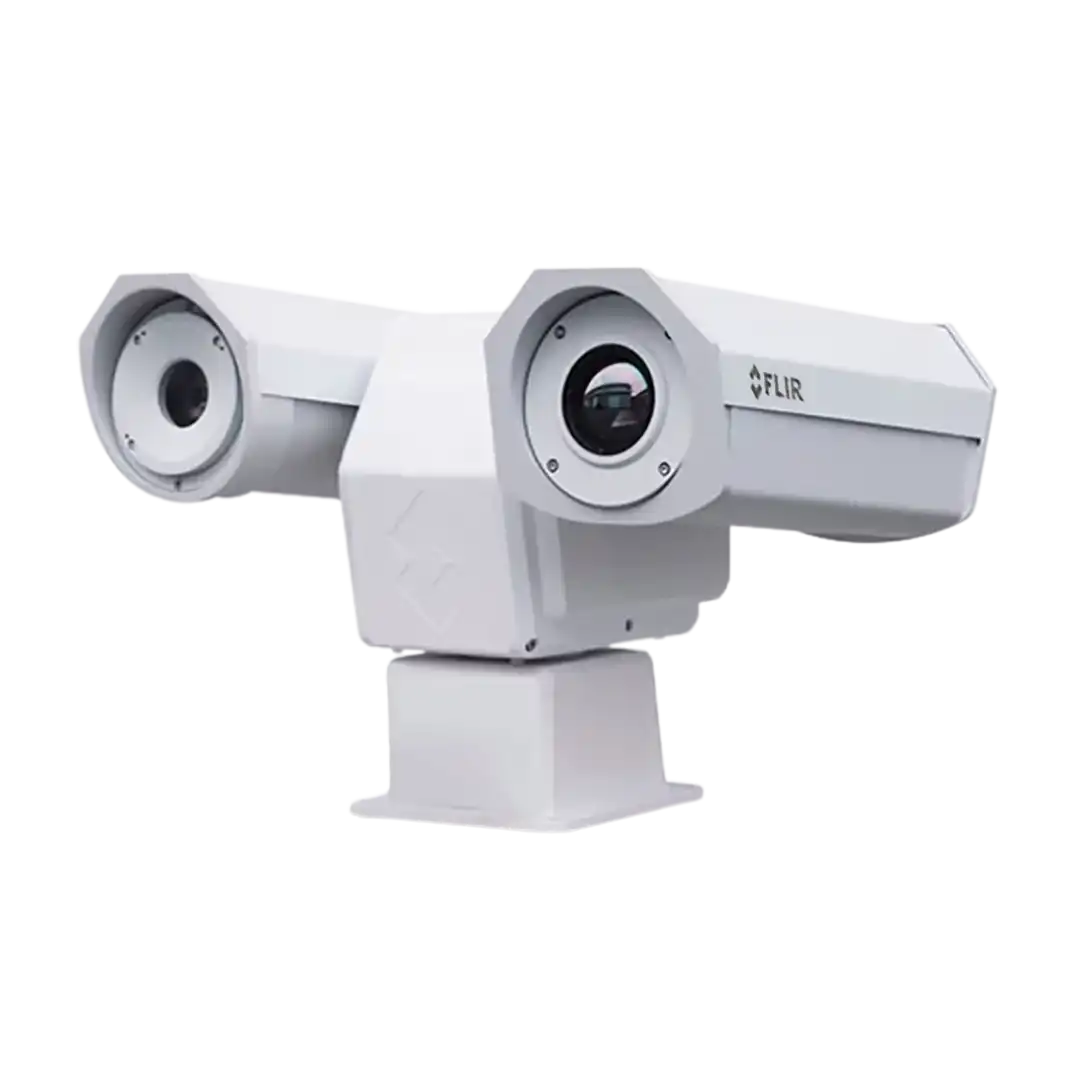

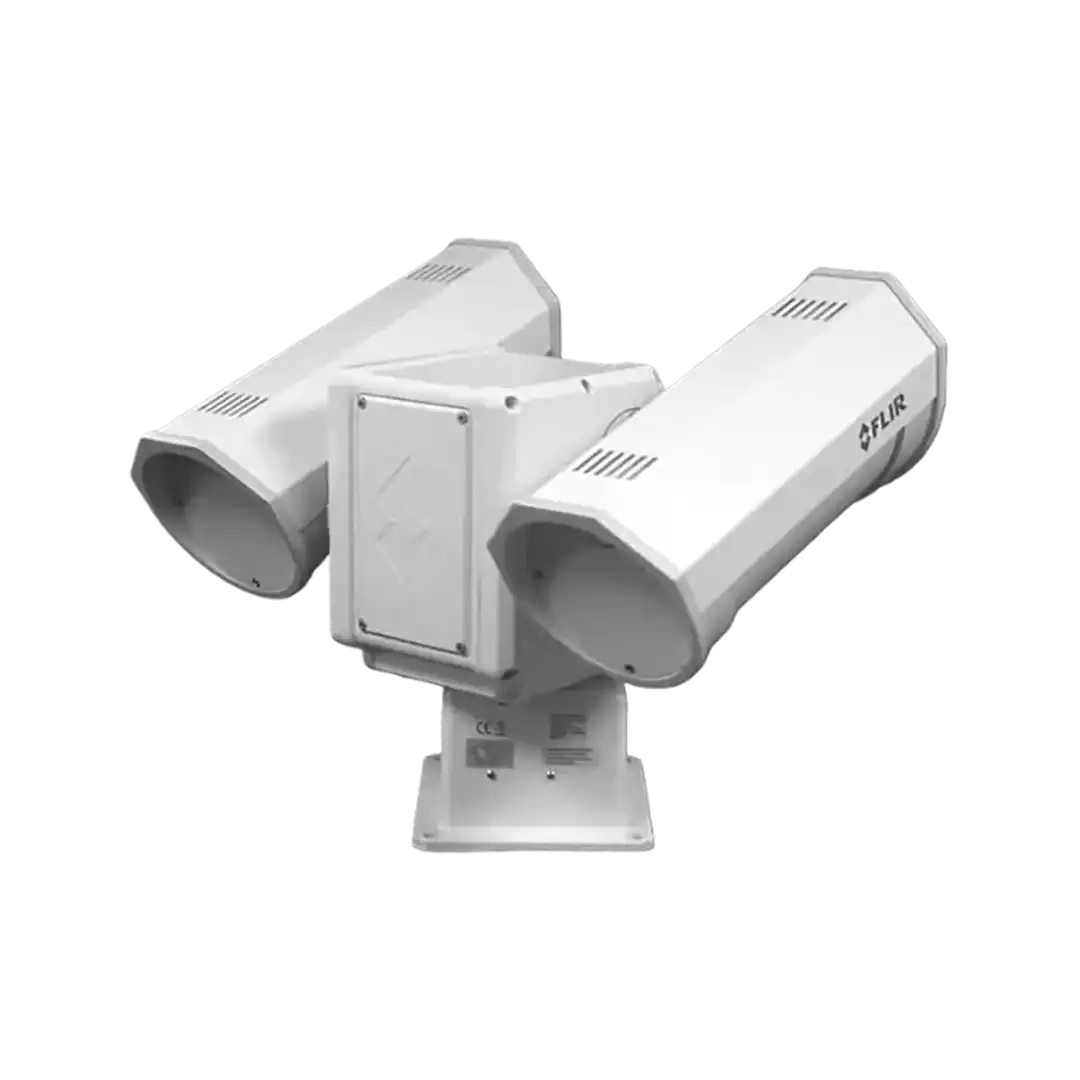

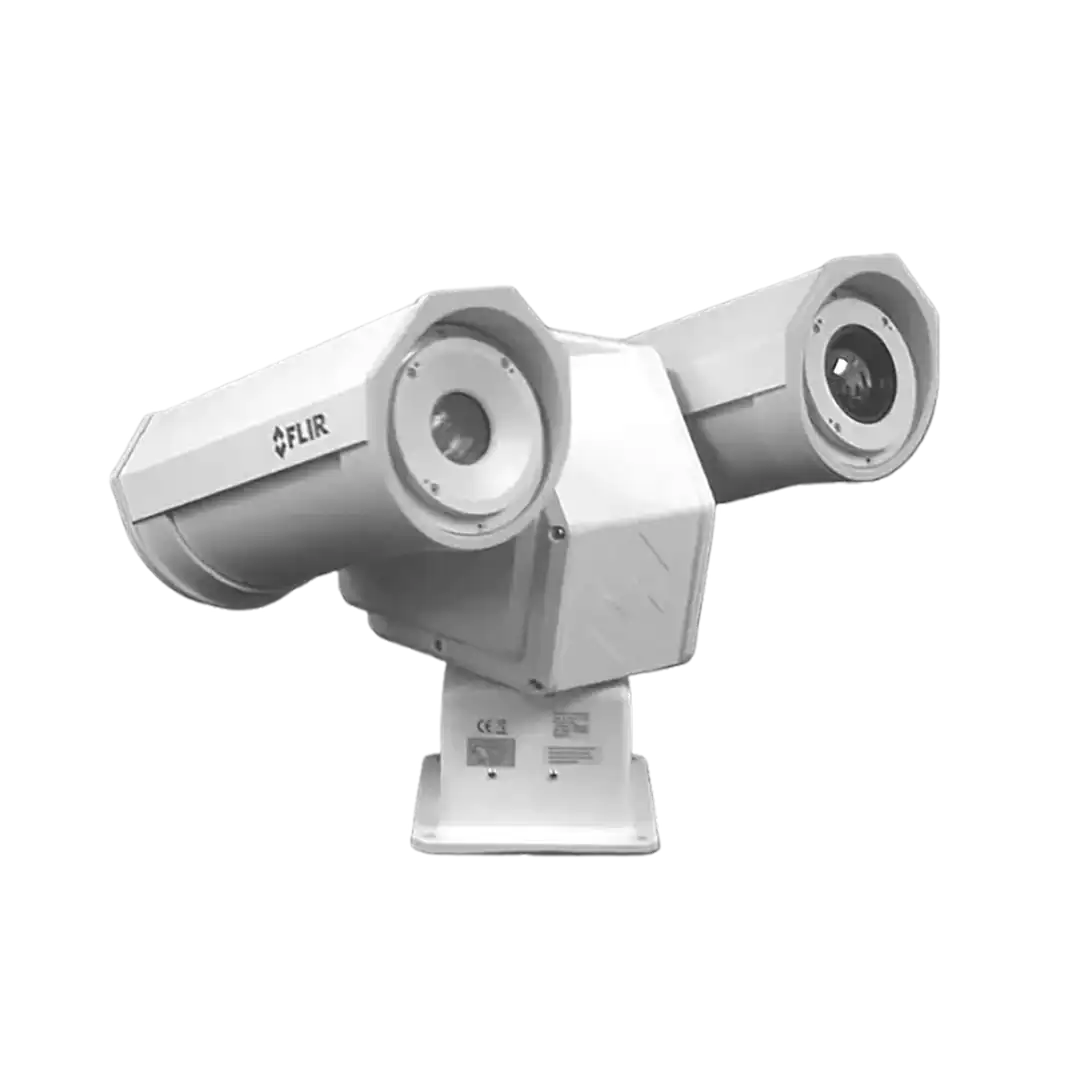

The FLIR PT-Series HD is a high-performance, multi-sensor pan/tilt security camera that combines long-range thermal imaging with full HD visible-light capabilities for unmatched situational awareness and detection accuracy. Designed for critical infrastructure protection, perimeter security, and wide-area surveillance, it provides clear imagery and tracking in complete darkness, bright sunlight, and extreme weather conditions.

Equipped with a precision pan/tilt mechanism, the PT-Series HD offers fast, smooth positioning and continuous 360° coverage, with powerful zoom options on both thermal and visible sensors. Its thermal camera enables long-range detection, while the HD visible sensor provides detailed identification and verification. Optional analytics, such as FLIR’s onboard intrusion detection, allow for automated tracking and classification of potential threats.

The PT-Series HD supports ONVIF compliance and integrates easily with leading video management systems. Built to withstand harsh environments, it features a rugged, weatherproof enclosure for 24/7 reliable operation. Ideal for airports, ports, substations, and other high-security sites, the PT-Series HD is FLIR’s flagship solution for advanced multi-spectral surveillance.

FLIR PT-Series HD

High-Definition Thermal Imaging with Precision PTZ Control

The FLIR PT-Series HD combines high-definition thermal imaging with pan-tilt-zoom (PTZ) functionality, providing superior situational awareness for long-range detection. Ideal for critical infrastructure, perimeter security, and public safety, this camera allows for dynamic, real-time tracking and precise monitoring across expansive areas.

Enhanced Video Analytics for Smarter Surveillance

Equipped with advanced video analytics, the PT-Series HD includes features such as motion detection, line crossing, intrusion detection, and auto-tracking, allowing for automated security monitoring and immediate alerts when unusual activity is detected. These tools help reduce manual monitoring while enhancing the system’s ability to respond to threats quickly.

Rugged and Reliable for Outdoor Conditions

The PT-Series HD features an IP66-rated weatherproof enclosure, ensuring dustproof and water-resistant protection in challenging environments. With an operating temperature range from -40°F to +140°F, it’s designed to perform reliably in harsh outdoor conditions, including remote sites, border security, and industrial facilities.

Seamless Integration and Efficient Compression

The PT-Series HD supports H.265, H.264, and MJPEG compression, ensuring efficient video streaming and minimizing bandwidth usage. It also features edge storage (up to 256GB), two-way audio, and alarm I/O, making it highly adaptable for integration into existing VMS platforms and security systems for enterprise-level surveillance.

Digital Downloads

Product Specifications and Downloads

Documentation

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
