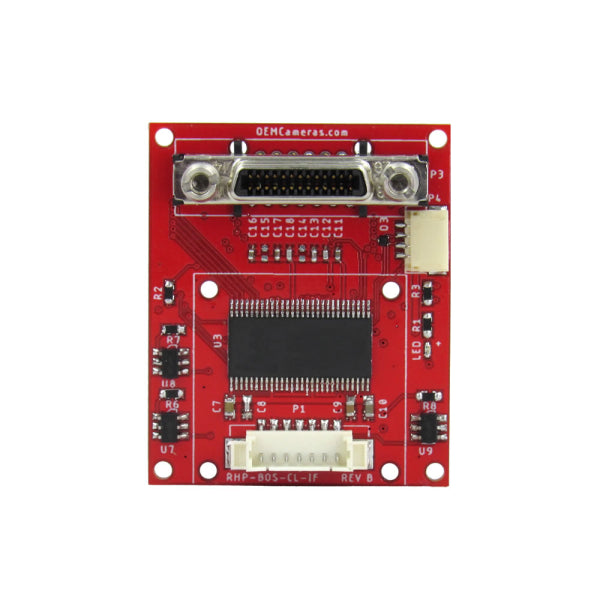

• RHP Boson Camera Link Interface Board
  • RHP Boson Camera Link Interface Board - left side
  • RHP Boson Camera Link Interface Board - right side
  • RHP Boson Camera Link Interface Board - diagram

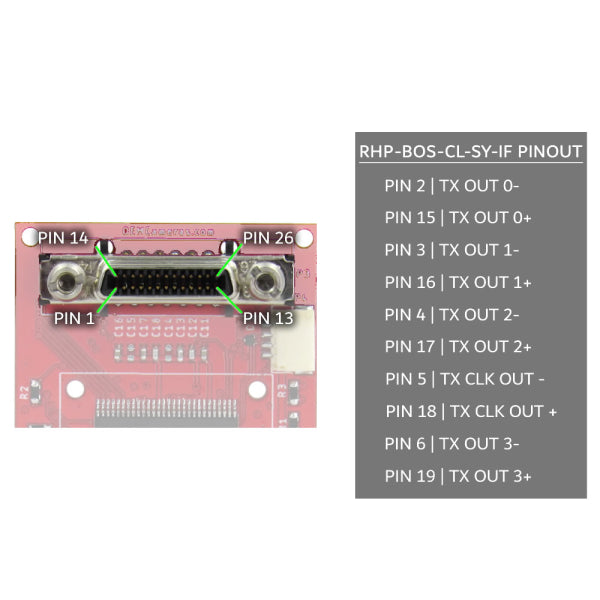

  • RHP Boson Camera Link Interface Board - pin out explanation
1 5

OEM Cameras Interface Module

RHP BOSON Camera Link Interface Board

RHP BOSON Camera Link Interface Board

  • Video Output: Camera Link SDR-26 Base Mode
  • Power Input: 5 to 26 V DC
  • Power Protection: Reverse polarity protected
  • USB Video Support: Yes
  • Control Channels: 3.3V TTL/UART
  • Master/Slave Sync Option: Available at 30 Hz only
  • Mounting Features: Compatible with Boson Tripod Mount Adapter
  • Operating Temperature Range: –40°C to 80°C
  • USB Video and Control: Supported
  • External Sync: Disabled on Boson ≤9Hz cameras

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$459.00 USD
$459.00 USD $459.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-CL-SY-IF-1
View full details
()

Powered by Salepify App

Product Information

RHP BOSON Camera Link Interface Board

The RHP Boson Camera Link Interface Board (SKU: RHP-BOS-CL-SY-IF) is a robust and adaptable module designed for seamless integration with the Teledyne FLIR Boson thermal camera. Featuring an SDR-26 Base Mode Video Output and a wide 5–26V DC input range with reverse polarity protection, this interface board delivers reliable performance across diverse power configurations. It supports USB video and control, as well as 3.3V TTL/UART control for flexible system management. The Master/Slave Sync option enables precision synchronization in multi-device setups, and the board is fully compatible with the Boson Tripod Mount Adapter for ease of integration. Whether used in advanced imaging systems or embedded platforms, this Camera Link module provides the connectivity and stability professionals require. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

RHP Boson Camera Link Interface Board

High-Speed Digital Video Output for FLIR Boson Integration

The RHP Boson Camera Link Interface Board enables seamless integration of Teledyne FLIR Boson thermal cores into systems requiring high-speed digital video output. Featuring a Camera Link SDR-26 Base Mode video output, it delivers uncompressed, low-latency thermal imagery, making it ideal for applications in industrial inspection, surveillance, and scientific research.​

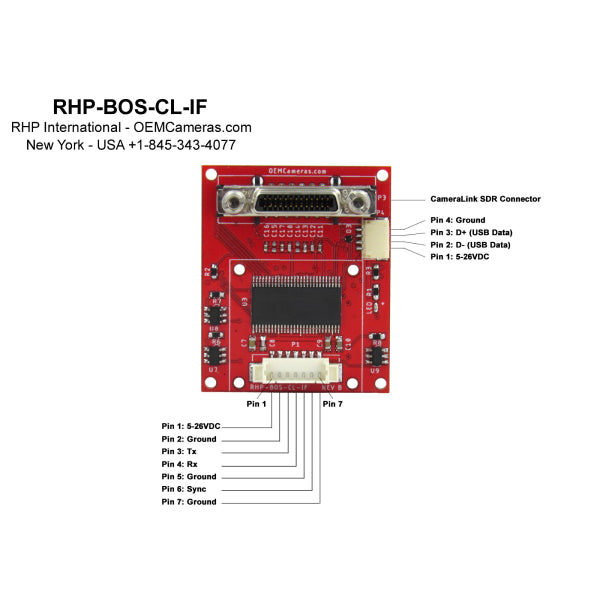

RHP Boson Camera Link Interface Board - diagram

Flexible Synchronization and Control Options

This interface board supports Master/Slave synchronization modes (30Hz only), allowing precise timing coordination with external equipment. It offers 3.3V TTL/UART control for serial communication, facilitating integration into complex systems. Additionally, the board provides USB video and control capabilities, enabling easy configuration and operation through standard interfaces.​

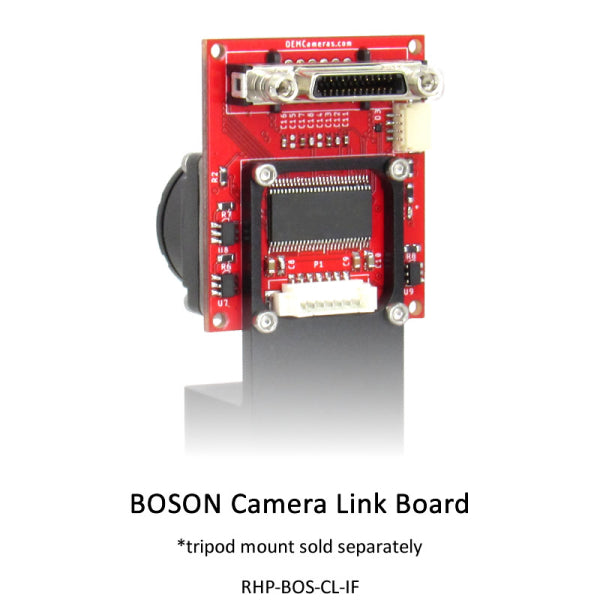

RHP Boson Camera Link Interface Board - left side

Robust Power Management and Protection

Designed for versatility, the board operates within a wide input voltage range of 5–26VDC and includes multiple power input options. Its reverse polarity protection safeguards against incorrect power connections, ensuring reliable performance in various operating conditions.

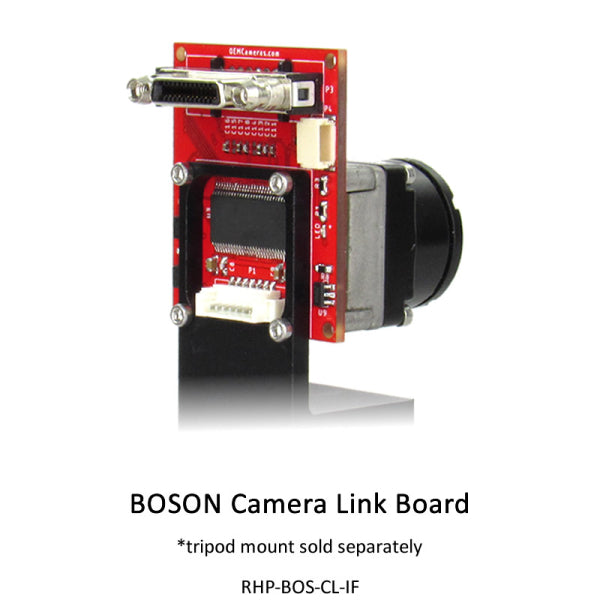

RHP Boson Camera Link Interface Board - right side

Compact Design with Mounting Flexibility

The RHP Boson Camera Link Interface Board features a compact form factor compatible with the Boson Tripod Mount Adapter, providing flexible mounting solutions for diverse applications. Its design facilitates easy integration into existing systems, making it a practical choice for enhancing thermal imaging capabilities.​

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
