RHP Boson LVDS Encoder Board

RHP Boson LVDS Encoder Board

  • Interface Type: LVDS Encoder Board
  • Video Output: Converts Boson LVDS to standard HDMI
  • Camera Support: Compatible with FLIR Boson thermal cores
  • Input Connector: Standard 60-pin Hirose interface
  • Output Connector: Full-size HDMI port
  • Power Input: 5 to 26 V DC
  • Board Features: Compact and lightweight for embedded use
  • Control Support: Serial passthrough for camera control
  • Mounting Features: Multiple mounting holes for secure integration
  • Use Case: Real-time HDMI video streaming from Boson via LVDS conversion

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$345.00 USD
$345.00 USD $345.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-LVDS-IF
View full details

Product Information

RHP Boson LVDS Encoder Board

The RHP Boson LVDS Encoder Board (SKU: RHP-BOS-LVDS-IF) is a compact, high-performance interface module designed to convert the FLIR Boson’s native LVDS video signal into standard analog or digital output formats for seamless integration into embedded systems. This board supports real-time video processing, enabling users to output NTSC/PAL composite video for legacy systems or overlay video content for heads-up displays and analog monitors. With support for 6 to 26V DC input and reverse polarity protection, it’s built for reliable deployment in a range of environments. Compatible with the RHP IP LVDS Encoder Board, it offers flexible expansion options for enhanced IP video functionality. Ideal for aerospace, industrial, and custom OEM applications, this encoder board provides the bridge between advanced digital imaging and traditional video workflows. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

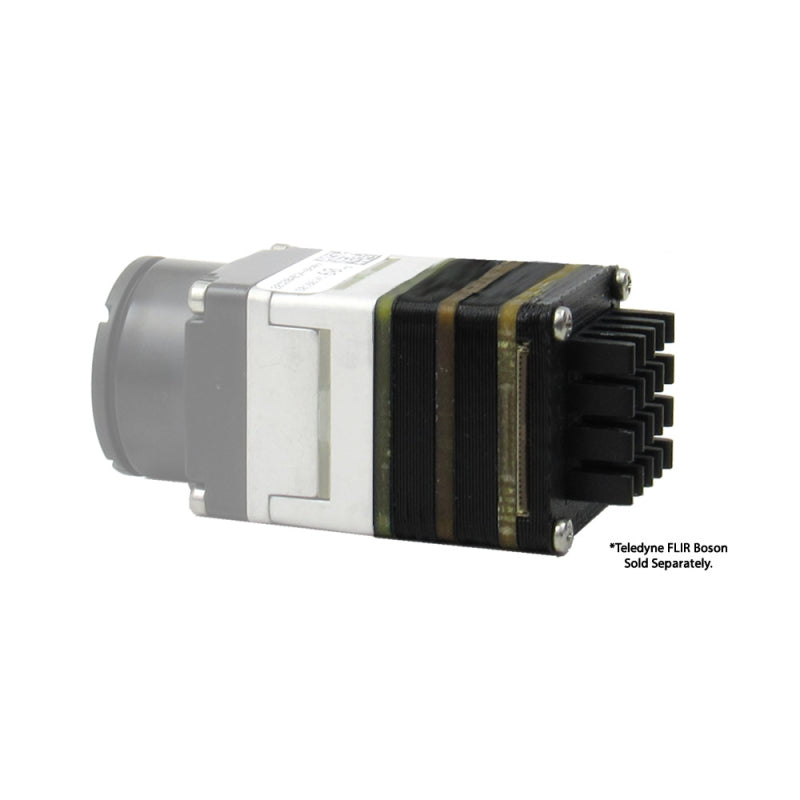

RHP BOSON LVDS Encoder Board - side view

Real-Time LVDS to HDMI Encoding

The RHP Boson LVDS Encoder Board provides real-time conversion of the Boson’s native LVDS video output to standard HDMI, enabling seamless integration with a wide range of modern display and recording devices. This ensures sharp, low-latency thermal imaging—ideal for development environments, field testing, or integration into systems lacking LVDS support.

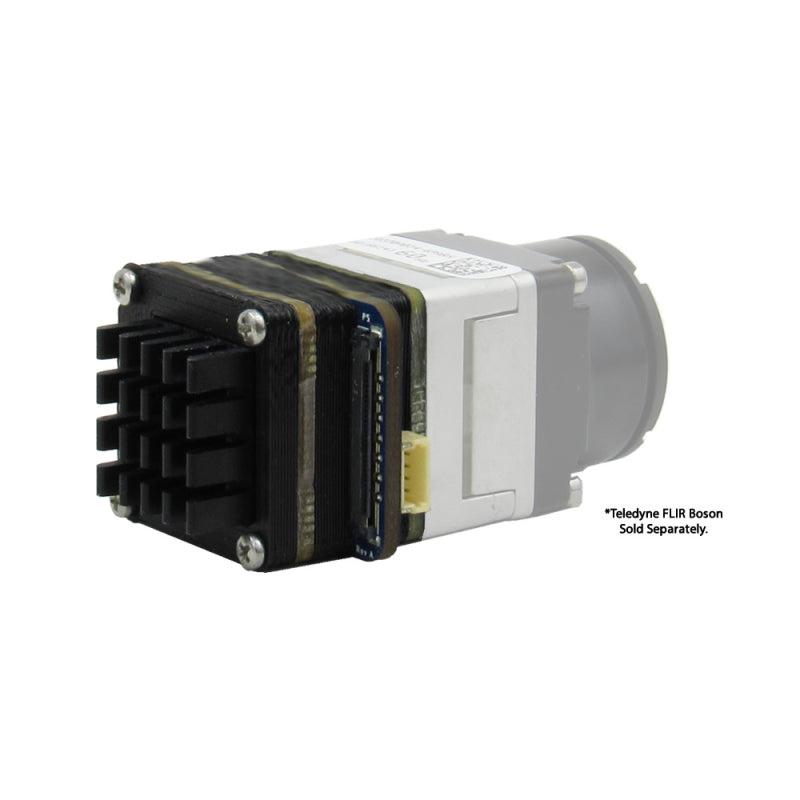

RHP BOSON LVDS Encoder Board

Plug-and-Play Boson Compatibility

Specifically designed for FLIR Boson thermal cores, the encoder board offers a direct-connect interface with minimal setup. It simplifies video signal handling without requiring extensive custom development, making it a go-to solution for rapid prototyping or OEM integration where time-to-deployment is crucial.

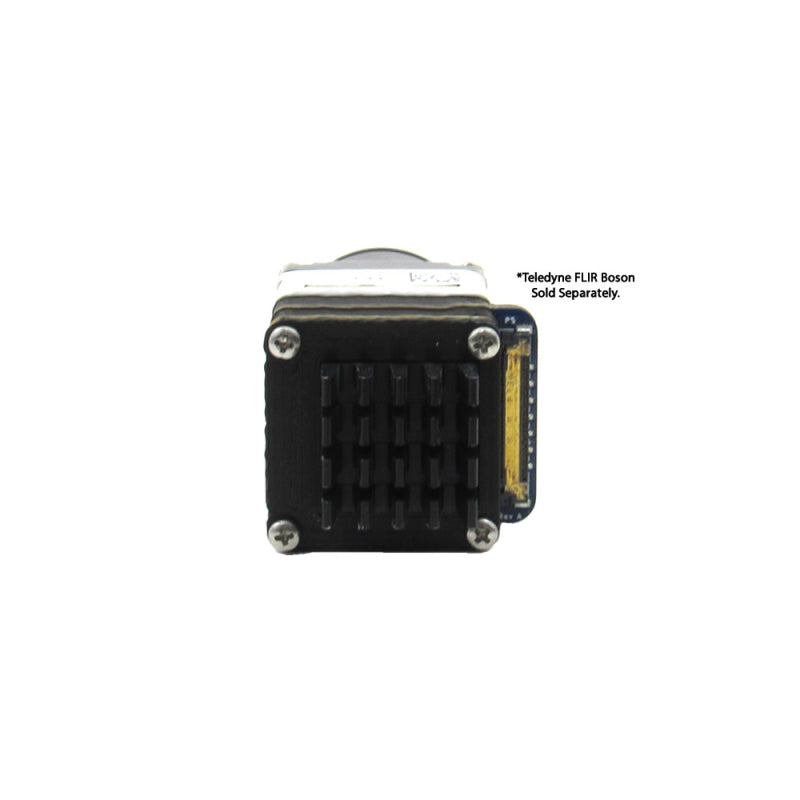

RHP BOSON LVDS Encoder Board - back view

Compact, Lightweight, and UAV-Ready

Engineered with size-sensitive applications in mind, this board is both lightweight and compact, making it ideal for airborne or embedded thermal systems. Despite its minimal footprint, it delivers robust video encoding performance while maintaining power efficiency—critical for payload-limited platforms such as drones and handhelds.

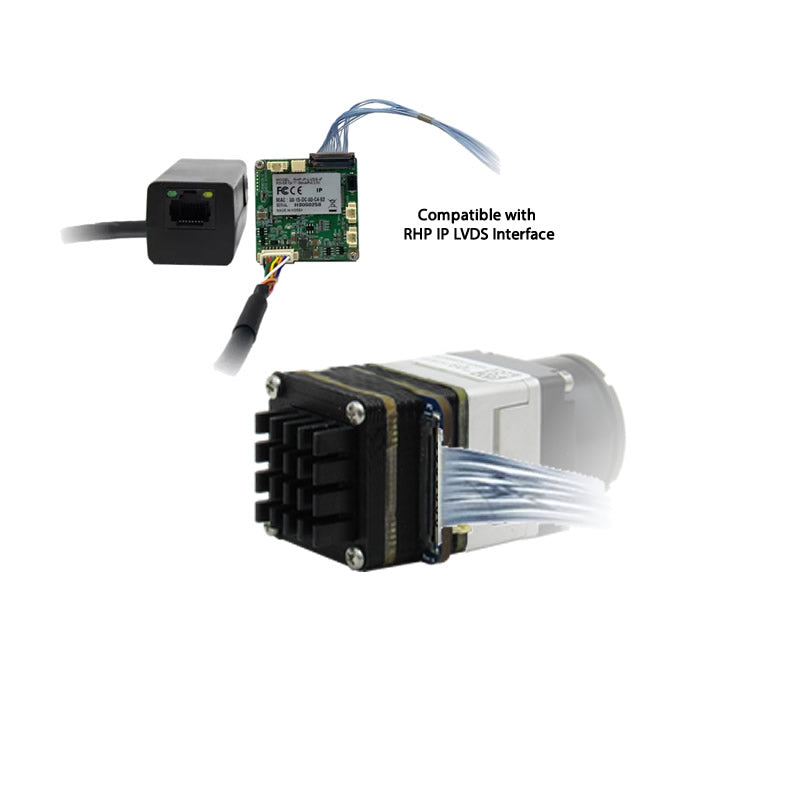

RHP BOSON LVDS Encoder Board - with interface

Robust Power Support & Signal Integrity

The encoder operates with a 6–26 VDC input range and includes reverse polarity protection to ensure safe and stable performance in diverse power environments. High-quality signal processing components preserve thermal video fidelity during conversion, offering a reliable solution for professional imaging applications in defense, research, and industrial sectors.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
