OEM Cameras Interface Module

RHP BOSON RC-IF Remote Control Interface

RHP BOSON RC-IF Remote Control Interface

  • Control Interface: Supports 16-channel S-Bus and 5-channel PWM for remote camera control
  • Power Input: 6 to 26 V DC with reverse polarity protection
  • Video Outputs: Dual composite video outputs and USB video output
  • Camera Functions: Remote control of color palettes, Flat Field Correction (FFC) shutter, Digital Detail Enhancement (DDE), thermal AGC, and continuous digital zoom
  • Weight: 5.8 grams
  • Ideal Applications: Designed for small Unmanned Aerial Systems (sUAS) and UAV operations
  • Additional Features: Powers RC wireless receiver; includes setup and calibration software

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$459.00 USD
$459.00 USD $459.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-RC-IF-1
View full details

Product Information

RHP BOSON RC-IF Remote Control Interface

The RHP Boson RC-IF Remote Control Interface (SKU: RHP-BOS-RC-IF) is a lightweight and powerful control solution designed for the Teledyne FLIR Boson and Boson+ cameras. Weighing just 5.8 grams, this module is ideal for sUAS and UAV applications where space and weight are critical. It features a wide 6–26V DC input range with reverse polarity protection for secure operation in variable power environments. The RC-IF provides remote control functionality via S-Bus and PWM connections, allowing drone operators to manage camera settings directly from their flight controller. Additional outputs include dual composite video feeds and USB video output, offering flexibility in data transmission and live-streaming configurations. Built for aerial integration and field reliability, this compact interface is a must-have for mission-critical thermal imaging control. We usually have a majority of these items in stock. If unsure, please call or contact for availability.

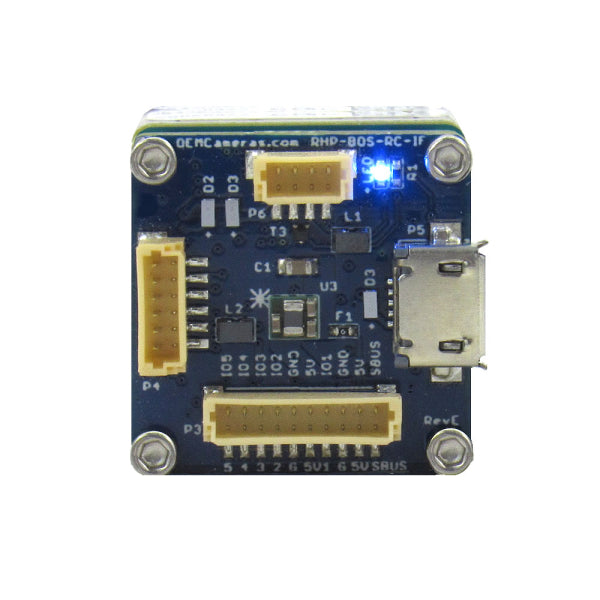

RHP Boson RC-IF Remote Control Interface

Remote Control Interface for FLIR Boson Integration

The RHP Boson RC-IF Remote Control Interface is designed to facilitate seamless integration of Teledyne FLIR Boson thermal cores into various systems. Its compact design ensures minimal space usage, making it ideal for applications where size and weight are critical factors. This module provides essential connectivity for video, power, and communication interfaces, streamlining the integration process.

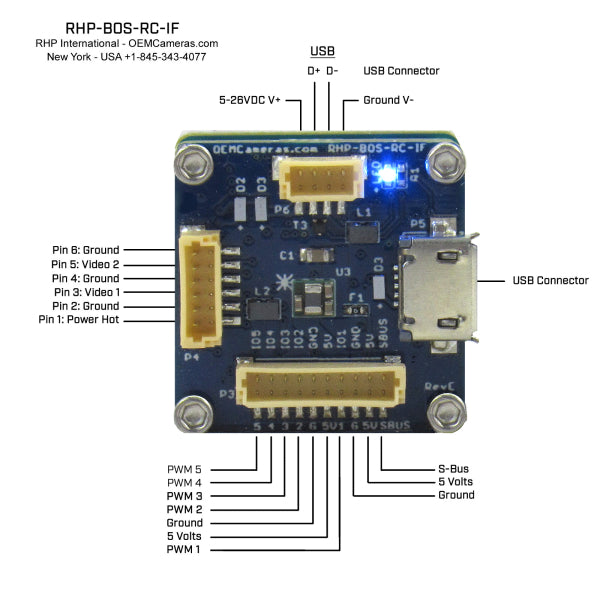

RHP Boson RC-IF Remote Control Interface - diagram

Enhanced Connectivity with USB Support

Equipped with USB capabilities, this interface module allows for efficient data transfer, enabling real-time video streaming and communication with host systems. The module supports standard USB protocols, ensuring compatibility with a wide range of devices and facilitating flexible integration options.

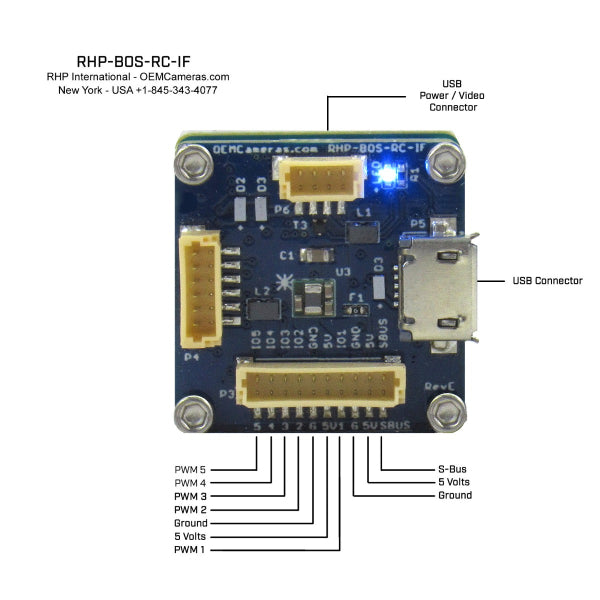

RHP Boson RC-IF Remote Control Interface - pin out

Robust Power Management and Protection Features

Designed to operate within a 6 to 26 Volts DC input range, the module includes reverse polarity protection to safeguard against incorrect power connections. This feature enhances the reliability and safety of the system, ensuring consistent performance in various operating conditions.

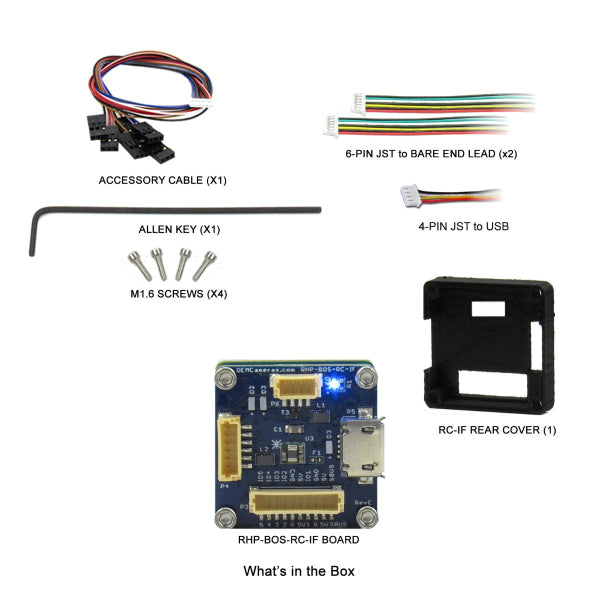

RHP Boson RC-IF Remote Control Interface - What's Included

Versatile Applications Across Industries

The RHP Boson RC-IF Remote Control Interface is suitable for a broad spectrum of applications, including aerial surveillance, industrial inspection, and scientific research. Its compact form factor, combined with robust connectivity and power management features, makes it a valuable component for systems requiring high-quality thermal imaging capabilities.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
