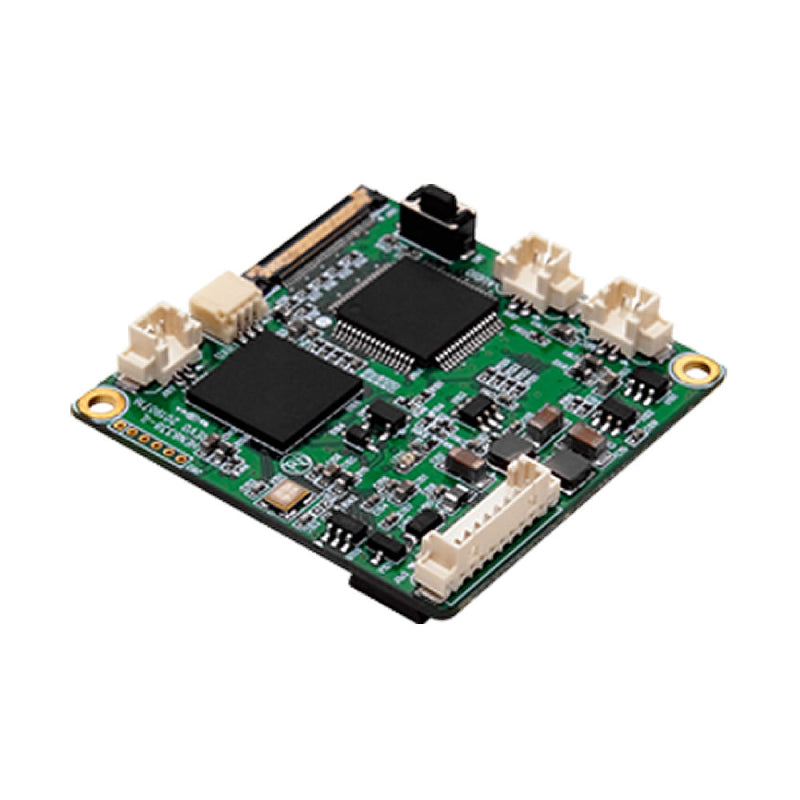

• RHP IP LVDS Encoder Board
  • RHP IP LVDS Encoder Board - connector
  • RHP IP LVDS Encoder Board - angle view
  • RHP IP LVDS Encoder Board - data specs
1 4

OEM Cameras Encoder Board

RHP IP LVDS Encoder Board

RHP IP LVDS Encoder Board

  • Interface Type: IP Encoder for LVDS Video
  • Video Input: Supports FLIR Boson LVDS output
  • Video Streaming: Converts LVDS to IP for network-based video transmission
  • Compression Format: H.264/H.265 encoding
  • Network Interface: Ethernet (RJ45) for IP streaming
  • Power Input: 5 to 26 V DC
  • Control Support: Web-based GUI or SDK control
  • Mounting Features: Compact form factor with multiple mounting points
  • Integration: Ideal for remote and embedded IP video systems
  • Use Case: Stream Boson video over IP networks for surveillance, monitoring, or recording

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$344.99 USD
$344.99 USD $344.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-IP-LVDS-IF
View full details

Product Information

RHP IP LVDS Encoder Board

The RHP IP LVDS Encoder Board (SKU: RHP-IP-LVDS-IF) is a powerful solution for converting FLIR Boson LVDS output into IP video for network-based applications. Designed with versatility in mind, it supports a wide 5–26V DC input range (6–26V DC recommended) and offers the ability to draw power directly over the LVDS interface. This encoder upscales video to 1080p and outputs it over LVDS for seamless backward compatibility with existing infrastructure.

Ideal for ONVIF-compliant network systems, the board pairs with the LVDS Encoder to provide a full IP video streaming solution. Setup and configuration are simplified via USB, with three configurable profiles available to define default settings on power-up. Whether used in surveillance, defense, or industrial integration, this module bridges traditional video pipelines with modern IP architecture. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

RHP IP LVDS Encoder Board

Stream LVDS Video Directly Over IP Networks

The RHP IP LVDS Encoder Board transforms the raw LVDS output from FLIR Boson cores into IP-ready video, allowing you to stream thermal footage over Ethernet. This opens the door to remote monitoring, networked recording, and scalable system architecture—ideal for long-distance, multi-node, or cloud-connected surveillance and inspection applications.

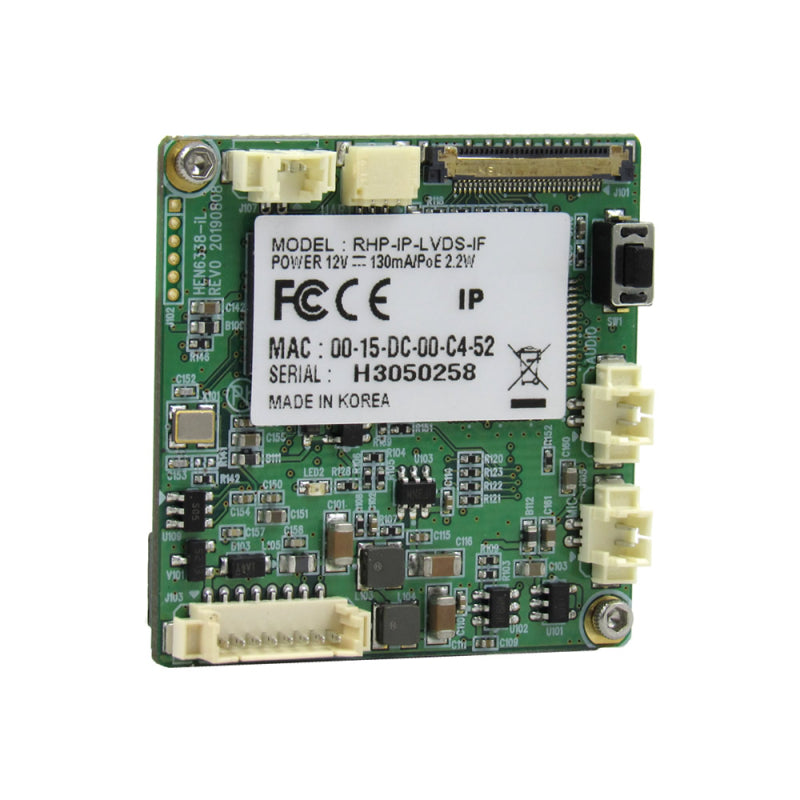

RHP IP LVDS Encoder Board - angle view

High-Quality Encoding with Minimal Latency

Equipped with low-latency video processing, the encoder board delivers high-resolution thermal video with minimal delay—critical for real-time decision-making and mission-critical applications. Whether used in industrial automation or defense systems, this board ensures reliable thermal visualization across your IP infrastructure.

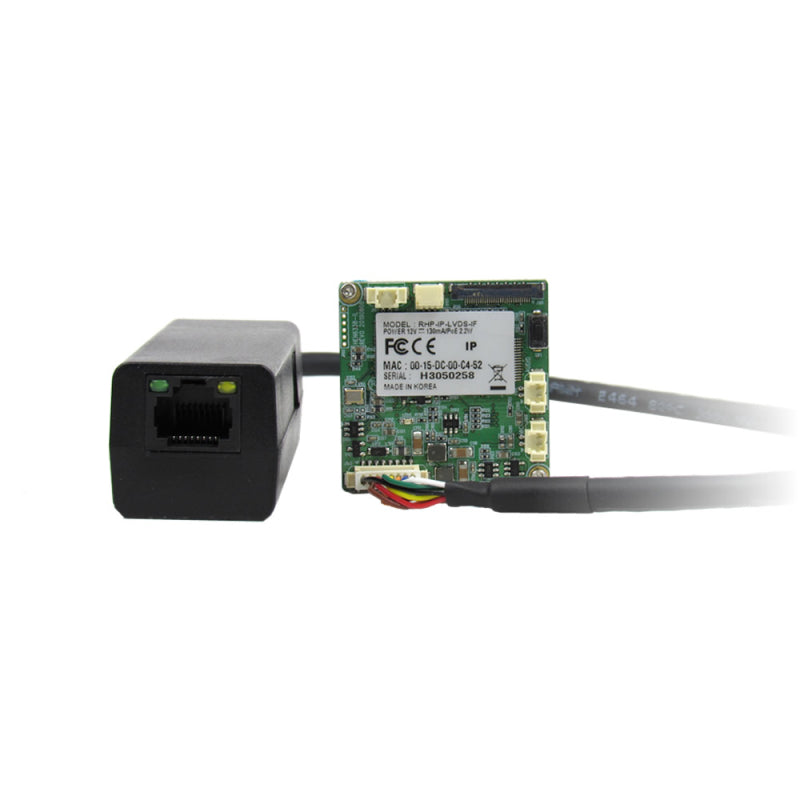

RHP IP LVDS Encoder Board - connector

Compact Design for Easy Integration

Designed for seamless integration into compact systems, the IP LVDS Encoder Board maintains a small footprint and lightweight profile, making it perfect for embedded platforms, UAV payloads, and portable field units. Its efficient form factor doesn’t compromise on functionality, enabling flexible deployment without bulk.

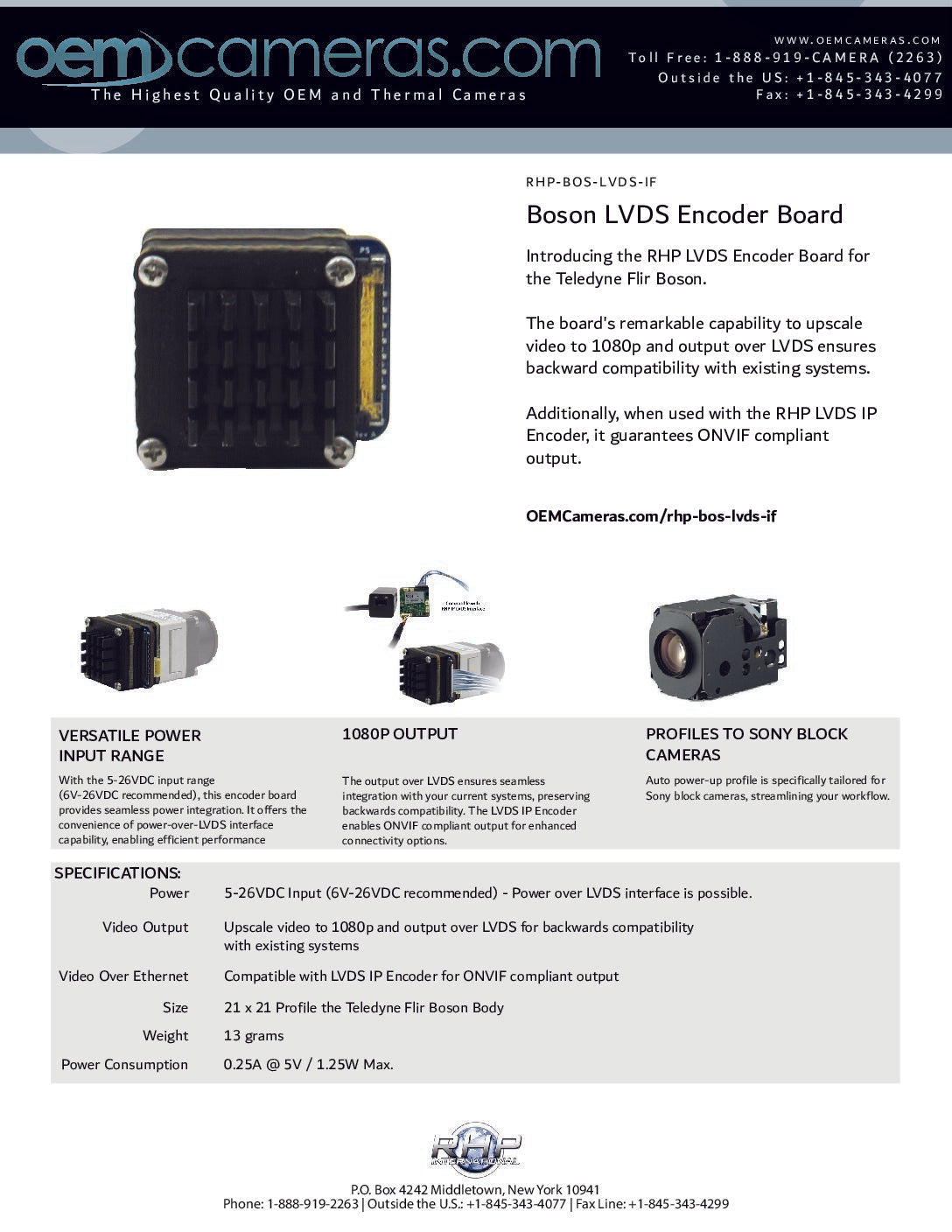

RHP IP LVDS Encoder Board - data specs

Industrial-Grade Power & Protection

The encoder supports a 6–26 VDC input range with built-in reverse polarity protection, offering dependable operation in harsh environments. Engineered for rugged performance, this board is suited for continuous use in demanding conditions, ensuring your thermal feed remains uninterrupted and secure.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
