Seek Reveal 300

Seek Reveal 300

The Seek Reveal 300 is a rugged, handheld thermal imaging camera built for industrial inspections, search and rescue, nighttime navigation, and general safety. With its high‑resolution thermal sensor, powerful LED flashlight, and durable design, the Reveal 300 empowers professionals to detect hidden heat signatures, improve efficiency, and ensure safety in the toughest environments.

  • Infrared Resolution: 320 × 240 pixels (76,800 temperature pixels with SV1 Image Optimization).
  • Thermal Sensitivity (NETD): <35 mK with SV1 for enhanced detail and clarity.
  • Temperature Measurement Range: –20 °C to 550 °C (–4 °F to 1022 °F).
  • Accuracy: Precise spot temperature readings with Center Spot mode.
  • Lens Field of View: 18° × 24° for targeted inspections.
  • Display: 2.8" TFT screen, 320 × 240 resolution, ergonomic 90° viewing angle.
  • Frame Rate: >25 Hz FastFrame for smooth imaging.
  • Measurement Tools: Imaging modes include Basic, Center Spot, and Survey for flexible analysis.
  • Palettes / Image Optimization: SV1 Image Optimization with Mixed Gain mode for simultaneous high/low temperature observation.
  • Digital Features: Supports image capture and video recording with embedded temperature data.
  • Flashlight: Integrated 300‑lumen LED for illumination in dark environments.
  • Durability: IP67 enclosure rating; drop‑tested to withstand 2 m (6.5 ft) onto concrete.
  • Weight & Size: 325 g (0.7 lb.), dimensions 5.1" × 3" × 1.8".
  • Battery: Rechargeable Li‑ion battery, up to 6 hours (thermal only) or 3.5 hours with flashlight.
  • Operating Temperature: –20 °C to 60 °C (–4 °F to 140 °F).
  • Software Compatibility: Designed for seamless use with Seek Thermal tools and reporting workflows.

The Reveal 300 Thermal Camera is the ideal solution for professionals who need a durable, reliable, and versatile thermal imaging tool. Whether for industrial maintenance, search and rescue, early fire detection, or wildlife observation, the Reveal 300 combines performance and ruggedness to deliver confidence in every inspection.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: RQ-9AAX
View full details

Product Information

Seek Reveal 300

The Seek Reveal 300 is a robust handheld thermal imaging camera engineered for diverse applications, including industrial inspections, search and rescue operations, nighttime navigation, and general safety. Equipped with a high-resolution **320x240 thermal sensor** enhanced by Seek's proprietary SV1 Image Optimization, it delivers 76,800 temperature pixels with superior detail, contrast, and edge clarity. The device features an **18° x 24° field of view**, enabling efficient scanning of large areas to locate people, animals, or equipment anomalies. Built to withstand harsh environments, the Reveal 300 boasts an **IP67 rating** and can endure drops from up to 2 meters onto concrete. Its compact dimensions (5.1” x 3” x 1.8”) and lightweight design (325 grams) make it portable and easy to handle in various field conditions. The integrated **300-lumen LED flashlight** aids visibility in complete darkness, while the rechargeable battery offers over **6 hours of continuous thermal imaging**, or **3.5 hours with the flashlight activated**. With a thermal sensitivity of **<35 mK**, the Reveal 300 can detect minute temperature differences, making it ideal for early fire detection, maintenance inspections, and wildlife observation. The device operates within a temperature range of **-20°C to 550°C (-4°F to 1022°F)** and offers multiple imaging modes, including Basic, Center Spot, and Survey, to cater to various user needs. Designed and manufactured in the USA, the Seek Reveal 300 is a reliable tool for professionals and adventurers requiring dependable thermal imaging capabilities.

Rugged Design for Demanding Environments

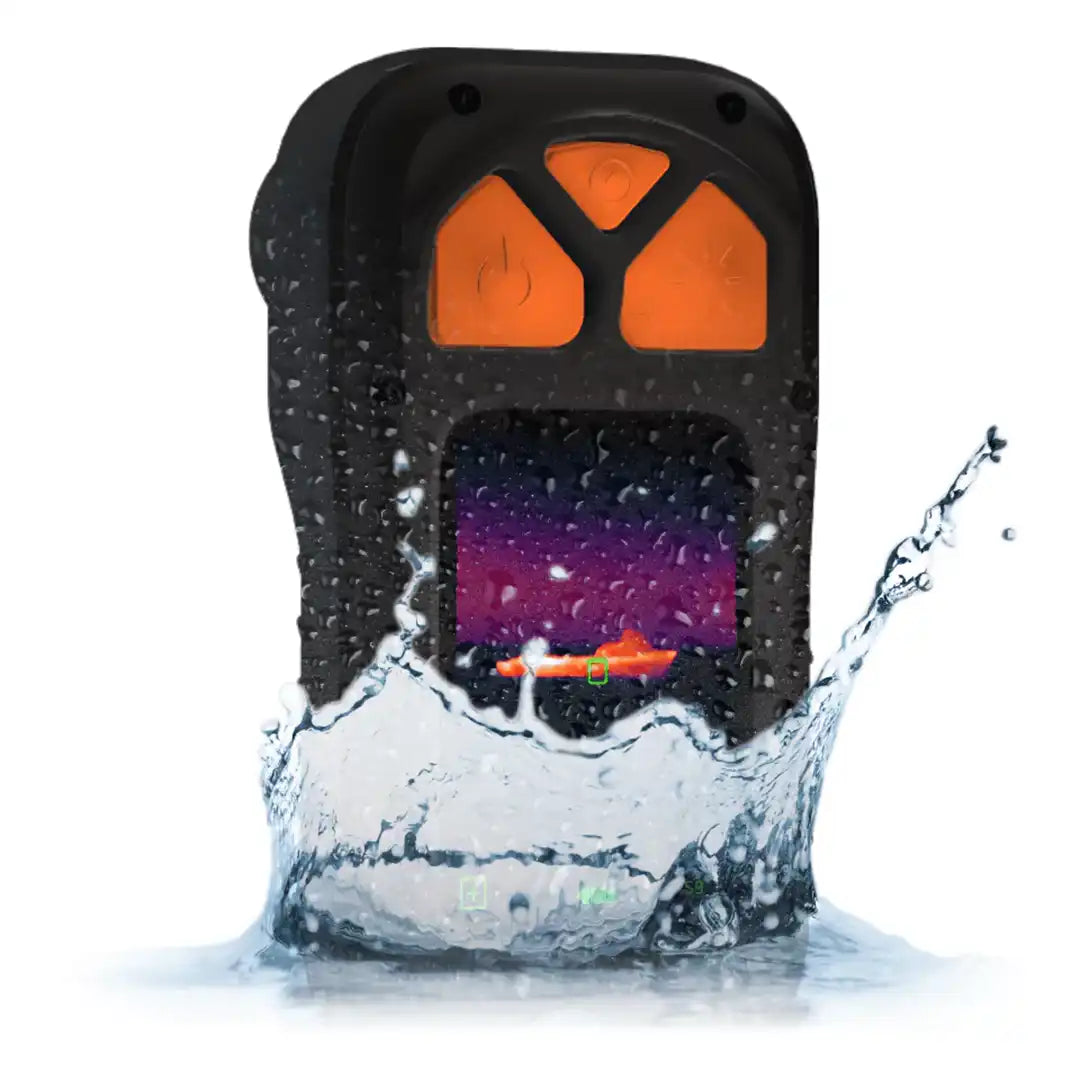

The Seek Reveal 300 is engineered to withstand the toughest conditions, featuring an IP67-rated housing that ensures protection against water and dust ingress. Its robust construction allows it to survive drops from up to 2 meters onto concrete, making it a reliable tool for professionals in challenging environments. Whether you're conducting industrial inspections or navigating through rugged terrains, the Reveal 300 is built to endure.

High-Resolution Thermal Imaging with Enhanced Clarity

Equipped with a 320 x 240 thermal sensor, the Reveal 300 delivers sharp and detailed thermal images, enabling users to detect subtle temperature differences with ease. The integration of Seek's proprietary SV1 Image Optimization technology enhances image quality by providing higher detail, better contrast, and improved edge clarity. This makes it an invaluable tool for identifying overheating machinery, electrical faults, or locating individuals in search and rescue operations.

Integrated High-Powered Flashlight for Versatility

The Reveal 300 features a built-in 300-lumen LED flashlight, providing powerful illumination to assist in low-light conditions. This dual functionality allows professionals to carry a single device for both thermal imaging and visible light needs, enhancing efficiency and reducing equipment load. Whether you're navigating dark areas or conducting inspections in poorly lit environments, the Reveal 300 ensures you have the visibility required to perform your tasks effectively.

Extended Battery Life for Prolonged Use

Designed for extended field operations, the Reveal 300 offers up to 6 hours of continuous thermal imaging on a single charge, and 3.5 hours when the flashlight is in use. This long-lasting battery life ensures that the device remains operational throughout your critical tasks, minimizing downtime and the need for frequent recharging. Whether you're on a prolonged search and rescue mission or conducting comprehensive industrial inspections, the Reveal 300 is ready to support you for the duration.

Digital Downloads

Product Specifications and Downloads

Documentation

Handheld Product Matrix

Handheld Product Matrix

Browse our selection of handheld thermal cameras with key specs and pricing to help you find the perfect fit for your needs.

View PDF

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
