Fixed Security Camera

Axis Q2101-TE

Axis Q2101-TE

  • Camera Type: Fixed thermal network camera
  • Thermal Resolution: 384 × 288 (upscaled to 768 × 576)
  • Lens Options: 7 mm, 13 mm, and 19 mm
  • Thermal Sensitivity (NETD): <40 mK @ 25°C, F1.0
  • Temperature Monitoring Range: –40°C to 350°C (–40°F to 660°F)
  • Temperature Accuracy: ±5°C for 0–120°C; ±15% above 120°C
  • Video Compression: H.264, H.265, MJPEG; includes Zipstream technology
  • Frame Rate Options: 8.3 fps or 30 fps, depending on model
  • Thermometric Guard Tour: Supports up to 256 presets with 10 polygonal detection areas each
  • Analytics Features: Early fire detection, spot temperature reading, temperature gradient triggers
  • Cybersecurity Features: Axis Edge Vault, TPM (FIPS 140-2 Level 2), signed firmware
  • Power Input: PoE (IEEE 802.3af/at)
  • Operating Temperature Range: –40°C to 60°C (–40°F to 140°F)
  • Protection Rating: IP66, IP67, IK10, NEMA 4X
  • Mounting Options: Compatible with Axis positioning units for 360° coverage
  • Audio Support: Two-way audio with built-in microphone and speaker support
  • I/O Ports: 4 configurable alarm inputs/outputs
  • Edge Storage: MicroSD card slot for local recording
  • Included Accessories: Mounting bracket, installation guide, and necessary connectors

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$4,899.00 USD
$4,899.00 USD $4,899.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: Axis 02649-001
View full details
()

Powered by Salepify App

Product Information

Axis Q2101-TE

The AXIS Q2101-TE Thermal Camera (SKU: AXIS-Q2101-TE) is a robust and intelligent solution for remote temperature monitoring across large areas. Engineered for industrial and perimeter surveillance applications, it measures temperatures ranging from -40 °C to 350 °C (-40 °F to 660 °F) with multiple trigger options including high/low thresholds and temperature gradients. When paired with a positioning unit (sold separately), it provides a 360° unobstructed field of view, enabling advanced thermometric guard tours with up to 256 presets—each supporting 10 customizable polygonal detection zones.

Designed for precision, the Q2101-TE features spot temperature readings for localized inspection, along with real-time thermal metadata for advanced analytics, statistical tracking, and process diagnostics. Built for harsh environments, it ensures dependable performance in mission-critical monitoring where accuracy and wide-area coverage are essential.

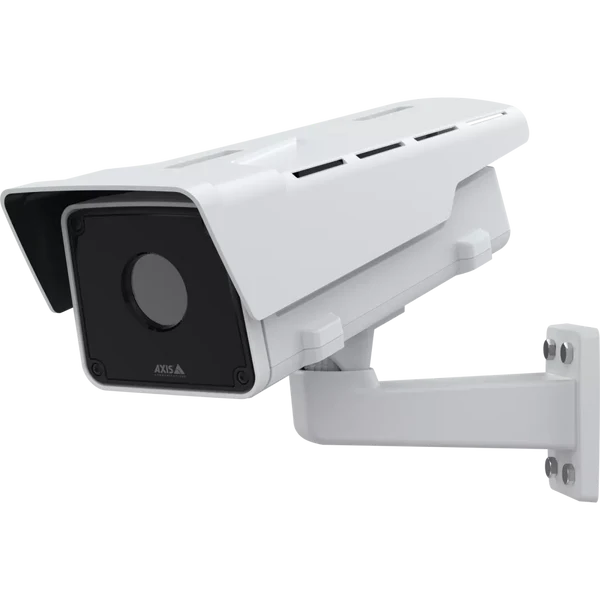

Axis Q2101-TE_left-angle-view

Advanced Thermal Monitoring with Radiometric Precision

The Axis Q2101-TE is designed for high-accuracy temperature detection, offering radiometric thermal imaging with an accuracy of ±2°C. It supports continuous temperature monitoring and triggers alerts when thresholds are crossed—making it ideal for early fire detection, equipment monitoring, and perimeter surveillance in critical infrastructure and industrial settings.

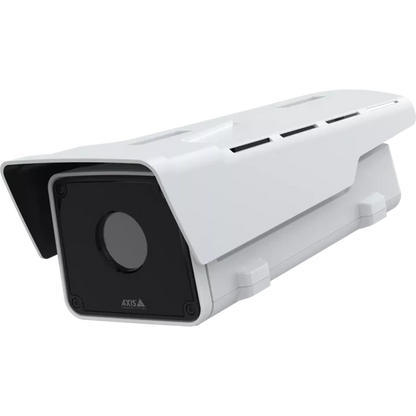

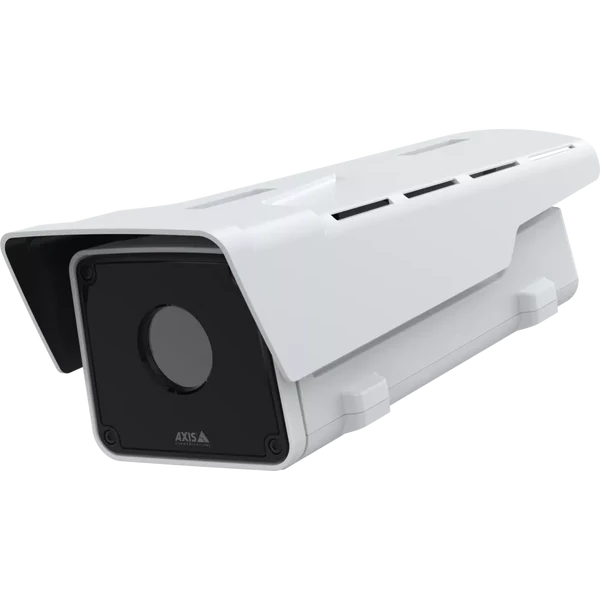

Axis Q2101-TE_angle-view

Dual-View Capability: Thermal + Visual

With dual imaging sensors, the Q2101-TE captures both thermal and visual streams simultaneously. This enables operators to verify temperature-based alerts visually, combining the power of heat mapping with situational context. The result is faster, smarter response to abnormal conditions, reducing downtime and improving safety.

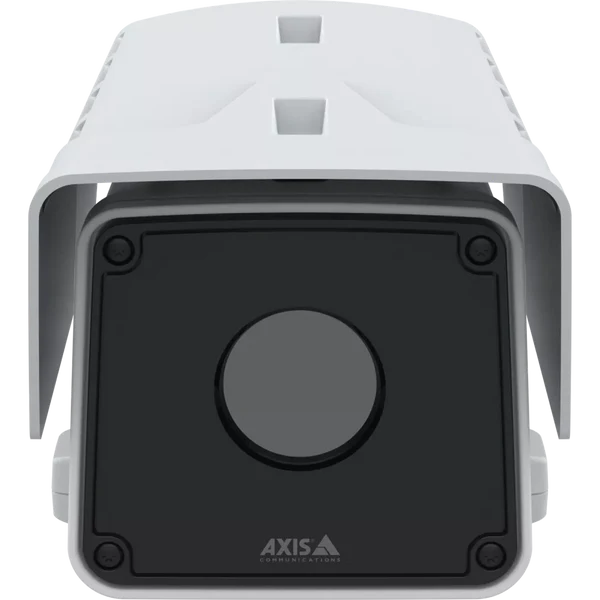

Axis Q2101-TE_front-view

Built Tough for Demanding Environments

Encased in an IP66-, IP67-, NEMA 4X-, and IK10-rated housing, the camera is engineered for use in extreme environments—including high-dust, moisture-prone, or corrosive areas. It also features a built-in window heater to prevent condensation or frost on the lens, ensuring reliable image clarity in all weather conditions.

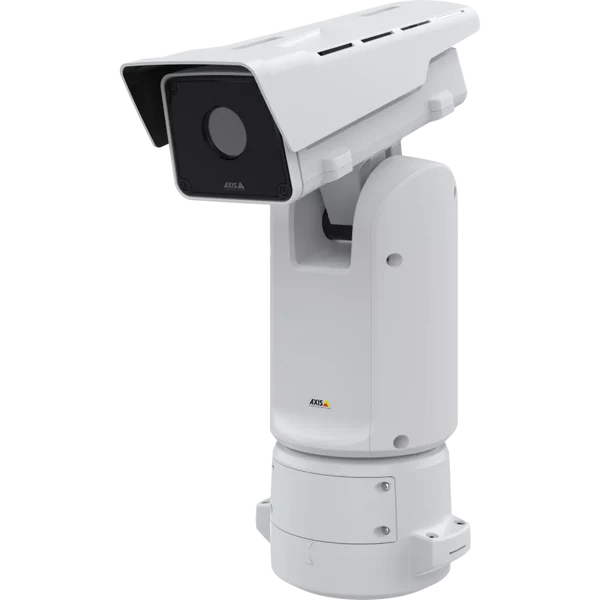

Axis Q2101-TE_production-view

Easy Integration with Smart Analytics & Axis Tools

The Q2101-TE integrates effortlessly with AXIS Camera Station, third-party VMS platforms, and advanced analytics tools. With support for AXIS Temperature Alarm, Motion Guard, and Perimeter Defender, this camera empowers automated monitoring and detailed insights for security, safety, and predictive maintenance applications.

Digital Downloads

Product Specifications and Downloads

Documentation

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
