FLIR Advanced Thermal Camera 24/7 Process Monitoring & Quality Control

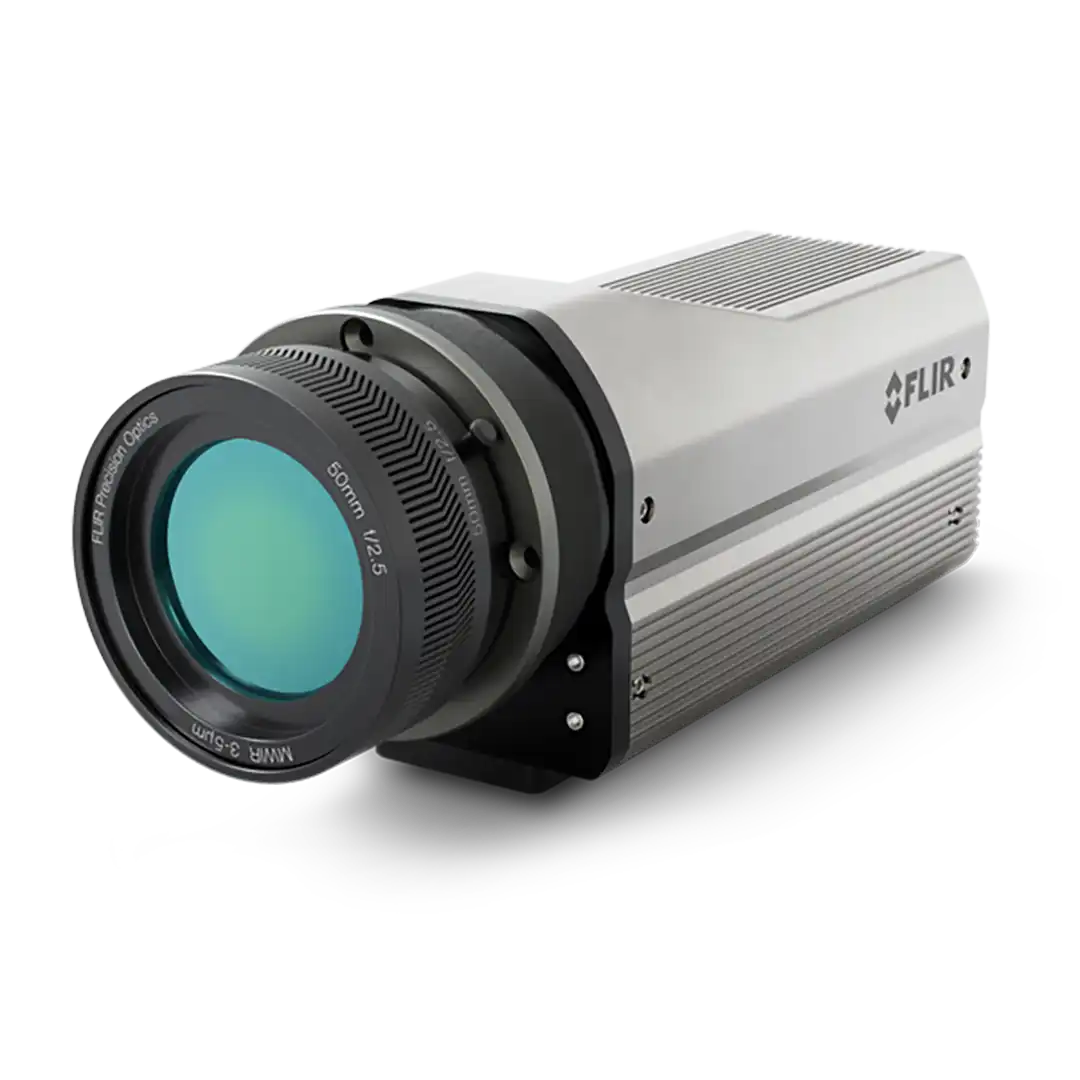

FLIR A6301

FLIR A6301

  • Thermal Imaging Resolution: 640 × 512 pixels for high-resolution thermal imaging.
  • Spectral Range: 3.0 – 5.0 µm (midwave infrared, MWIR) for advanced scientific and industrial applications.
  • Temperature Measurement Range: –20°C to 350°C (–4°F to 662°F), with optional calibration for extended ranges.
  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, ensuring precise temperature measurements.
  • Field of View (FOV): Supports multiple lens options, including 17mm, 25mm, 50mm, and 100mm, for adaptable imaging needs.
  • Image Frequency: 60 Hz for real-time thermal analysis.
  • Detector Type: Indium Antimonide (InSb) cooled detector for superior sensitivity and fast response times.
  • NETD (Thermal Sensitivity): <25 mK at 30°C (86°F), allowing detection of very small temperature differences.

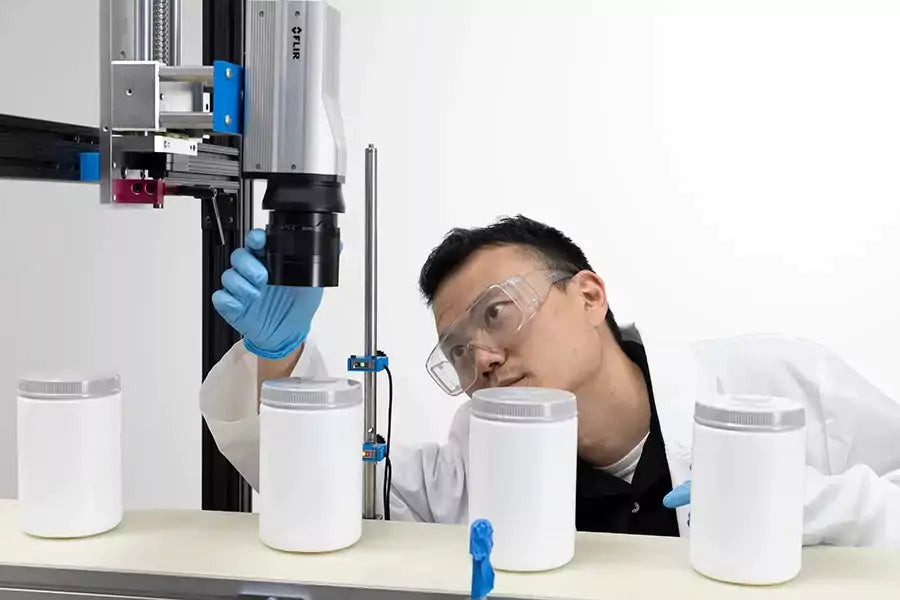

  • Focus: Motorized and manual focus for precise imaging.
  • Interfaces: Gigabit Ethernet (GigE) and Camera Link for high-speed data transfer and system integration.
  • Data Streaming: Full dynamic radiometric data streaming for real-time analysis and process monitoring.
  • Durability: IP54-rated housing for protection against dust and water in laboratory and industrial environments.
  • Operating Temperature Range: –40°C to 50°C (–40°F to 122°F), ensuring reliable performance in various conditions.
  • Compact and Lightweight: Weighs approximately 2.5 kg (5.5 lb) and measures 249 × 105 × 92 mm (9.8 × 4.1 × 3.6 inches), making it easy to mount and integrate into fixed installations.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$49,999.00 USD
$55,000.00 USD $49,999.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: 29433-206
()

Powered by Salepify App

View full details

Product Information

FLIR A6301

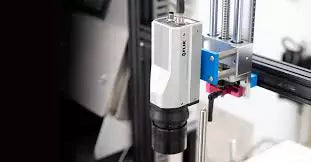

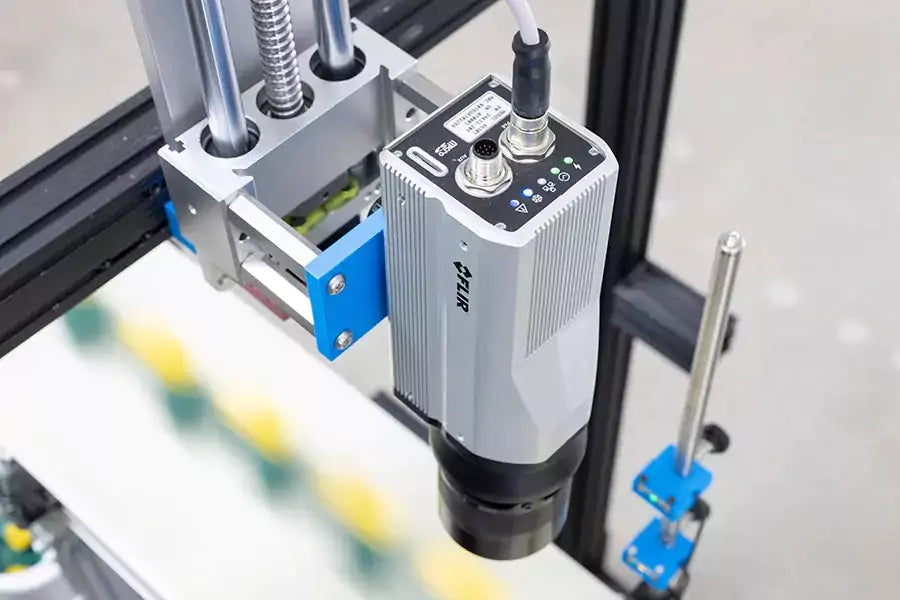

​The FLIR A6301 is an advanced thermal imaging camera designed for industrial process monitoring and quality control applications. It features a 640 x 512 pixel cooled MWIR (Mid-Wave Infrared) sensor with a thermal sensitivity (NETD) of ≤15 mK at 25°C, allowing for the detection of minute temperature differences. The camera offers fast integration times, enabling accurate temperature measurements on moving products and production lines. It supports standard GigE Vision protocols and features a REST API and built-in web interfaces, facilitating seamless integration into automation systems. The A6301 is equipped with a durable cryogenic cooler with a lifespan of 27,000 hours, ensuring consistent performance and reduced maintenance costs. The camera is compatible with various interchangeable lenses, including 17 mm, 25 mm, and 50 mm options, to accommodate different field-of-view requirements. Its compact design measures 267 x 76 x 92 mm and weighs 1.77 kg with the lens, making it suitable for integration into existing industrial setups. The A6301 operates within a temperature range of -20°C to 50°C and has an IP50-rated enclosure, providing reliable performance in challenging industrial environments.

High-Speed Thermal Imaging for Scientific and Industrial Applications

The FLIR A6301 is a high-performance thermal imaging camera designed for scientific research, industrial testing, and process monitoring. With a 640 × 512 thermal resolution and a high-speed capture rate, it provides detailed thermal analysis for precise temperature measurement. Whether used in defense, aerospace, or electronics testing, the A6301 delivers accurate and reliable thermal data for critical applications.

Fast Frame Rates and Superior Image Quality

The FLIR A6301 supports high-speed thermal imaging with a frame rate of up to 200 Hz, ensuring smooth data acquisition for fast-moving targets and dynamic processes. The advanced thermal sensitivity of <50mK enables users to detect subtle temperature differences, making it ideal for high-precision testing, failure analysis, and material evaluation.

Flexible Integration with GigE Vision™ and GenICam™ Compliance

Designed for seamless system integration, the FLIR A6301 is GigE Vision™ and GenICam™ compliant, allowing for real-time thermal data streaming and high-speed connectivity. Its compact and lightweight design makes it easy to install in fixed or portable monitoring setups, ensuring versatile deployment in laboratory and industrial environments.

Advanced Data Processing and Research-Grade Software Compatibility

The FLIR A6301 supports radiometric data capture, thermal video recording, and in-depth thermal analysis tools. It integrates with FLIR Research Studio and other scientific software, providing comprehensive data visualization, trend analysis, and automated reporting. These features make the A6301 an essential tool for scientific research, industrial automation, and precision engineering applications.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
