• FLIR FC-Series AI R
1 1

Fixed Security Camera

FLIR FC-Series AI-R

FLIR FC-Series AI-R

  • Thermal Sensor Type: Long-life uncooled VOx microbolometer
  • Thermal Resolution: 640 × 512
  • Spectral Range: 7.5 µm to 13.5 µm
  • Thermal Sensitivity: <35 mK @ 25°C
  • Field of View Options: 69°, 44°, 25°, and 17° horizontal, based on model
  • Radiometric Measurement: Surface temperature tracking with accuracy up to ±5°C or ±5%
  • Temperature Range: 0°C to 380°C with dual gain modes (video analytics in High Gain mode only)
  • Focus: Athermalized, focus-free optics
  • Video Output: IP and analog, dual streaming (H.264/H.265 or MJPEG)
  • Analytics Features: Intrusion detection, region entrance, crossover, fence trespassing, deep learning-based object classification
  • Vehicle Exclusion Mode: Reduces false alarms from hot exhaust pipes
  • Smart Image Controls: DDE, brightness, contrast, auto AGC, smart screen optimization
  • Cybersecurity: IEEE 802.1X, HTTPS, firewall access control, IP filtering, user policy enforcement
  • System Integration: ONVIF S/G/T, NEXUS SDK and CGI, dry contact I/O
  • Environmental Rating: IP67, IK10 vandal resistance (excluding lens/window)
  • Operating Temperature: -40°C to 70°C, cold start capable
  • Power Requirements: PoE+ (802.3at), 12/24 VDC, or 24 VAC
  • Mounting Form Factor: Compact size with or without sunshield; 1.8–2.2 kg

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$9,249.00 USD
$9,249.00 USD $9,249.00 USD
Sale Sold out
Shipping calculated at checkout.

FC669R30
View full details

Product Information

FLIR FC-Series AI-R

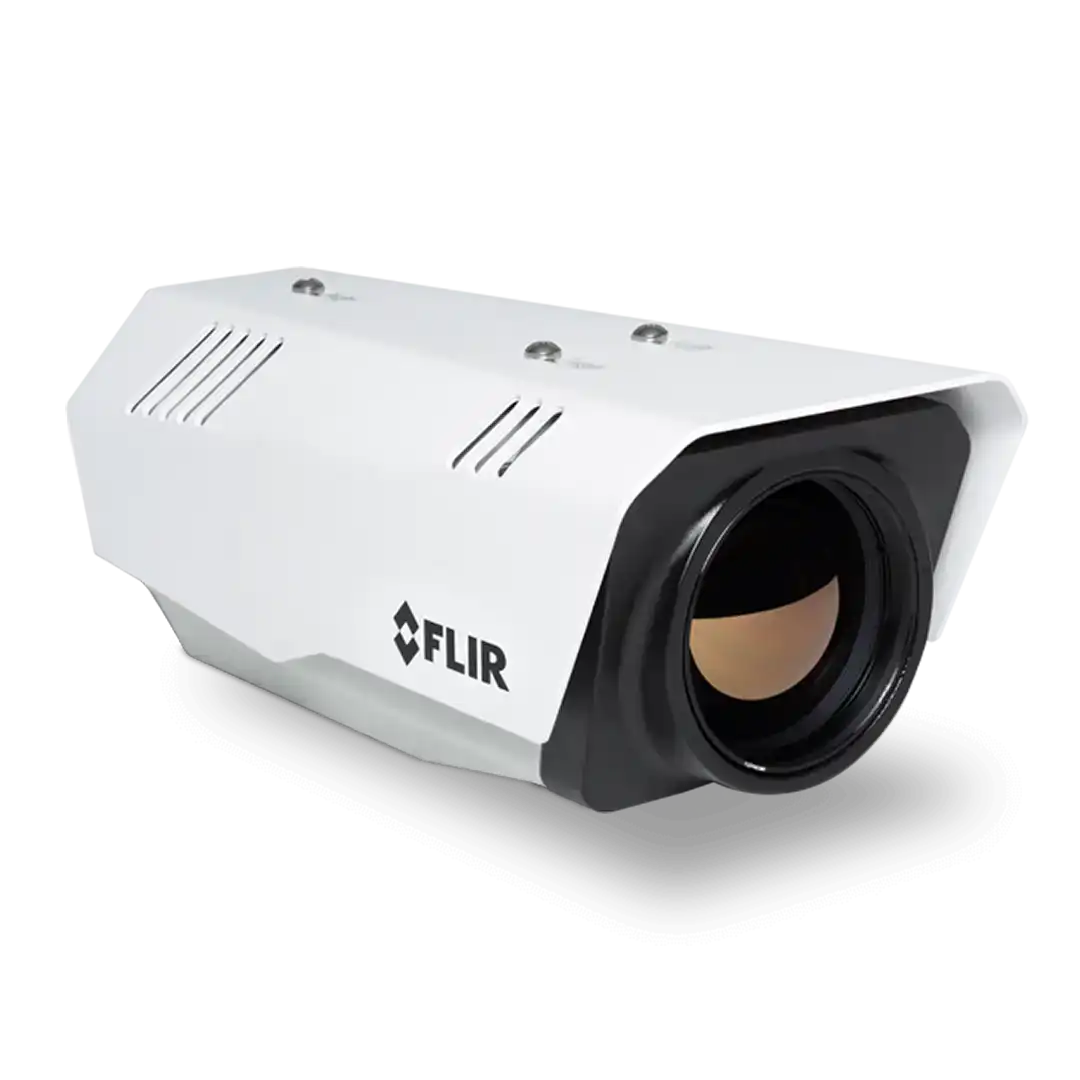

The FLIR FC-Series AI-R is an intelligent thermal analytics camera engineered for radiometric monitoring and perimeter protection across critical sites. Combining thermal detection and surface temperature measurement with onboard deep neural network (DNN) analytics, the AI-R enables operators to identify hot spots, intrusions, and false alarm sources with confidence.

With a 640 × 512 uncooled VOx sensor and temperature sensitivity under 35 mK, the camera provides high-fidelity thermal imagery for identifying heat-related risks and activity. Radiometric functionality measures surface temperatures from 0°C to 380°C with configurable high/low gain modes, allowing precise alarm thresholds in fire-prone or mission-critical zones.

AI-driven analytics such as object classification, intrusion detection, and crossover detection help differentiate actual threats from environmental noise or attempted deception. The integrated vehicle exclusion mode helps suppress false temperature alarms from exhaust heat in traffic-heavy areas.

Engineered for deployment in extreme conditions, the FC-Series AI-R is IP67-rated, cold-start ready, and hardened against shock, vibration, and vandalism. With flexible power and network integration (including ONVIF, NEXUS, and analog options), it is built for seamless deployment in enterprise-grade VMS ecosystems.

Whether installed in remote substations, manufacturing zones, or large infrastructure perimeters, the FC-Series AI-R offers 24/7 awareness, predictive temperature analytics, and resilient edge processing in a compact, cyber-secure package.

FLIR FC-Series AI R

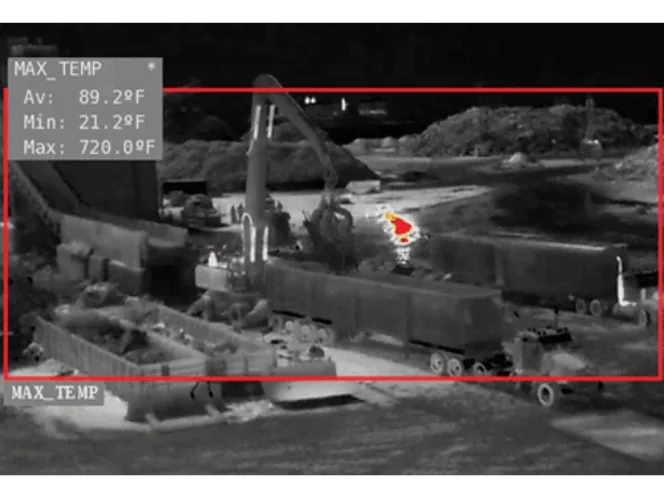

Thermal Fire Detection with Onboard Radiometry

The FC-Series AI-R combines radiometric measurement with thermal imaging to detect hot spots and fire risk indicators. It provides real-time surface temperature readings across defined zones with adjustable gain modes, supporting accurate early fire detection and temperature-based alerts.

AI-Powered Threat Differentiation

Integrated deep neural network (DNN) classification distinguishes people from vehicles and filters out nuisance events like exhaust pipes or wind-blown objects. With features like intrusion and crossover detection, the system accurately pinpoints true intrusions even in complex visual conditions.

Compact, Hardened, and Cold-Start Ready

The camera is built to perform in harsh environments, with IP67 ingress protection, IK10 vandal resistance, and MIL-STD-tested resistance to shock and vibration. It operates from -40°C to 70°C and is cold-start capable—ideal for exposed outdoor installations.

Seamless VMS and Network Integration

Supporting ONVIF Profiles S, G, and T, NEXUS SDK/CGI, and dual H.264/H.265 streaming, the FC-Series AI-R integrates easily with FLIR UVMS or third-party systems. Built-in cybersecurity includes firewall controls, IP filtering, and 802.1X authentication for enterprise-grade protection.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
