FLIR Handheld Camera

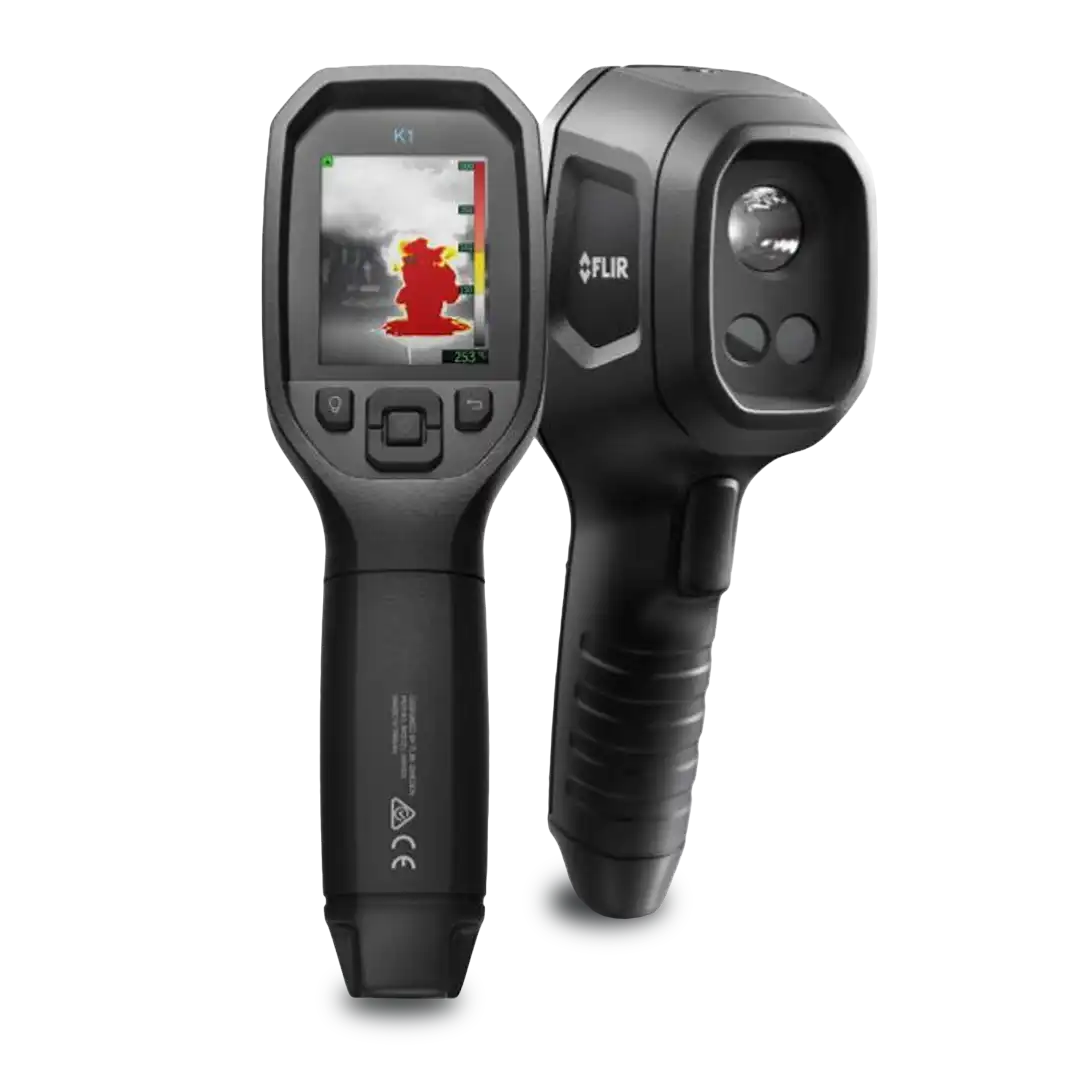

FLIR K1 - Situational Awareness Camera

FLIR K1 - Situational Awareness Camera

  • Thermal Imaging Resolution: 160 × 120 pixels (19,200 pixels) for clear thermal imagery.
  • Temperature Measurement Range: High Gain Mode: –10°C to 140°C (14°F to 284°F); Low Gain Mode: –10°C to 400°C (14°F to 752°F).
  • Accuracy: ±5°C (±9°F) or ±5% in High Gain Mode; ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F).
  • Field of View (FOV): 57° × 44° for a wide viewing area.
  • Display: 2.4-inch backlit LCD with 320 × 240 pixels resolution for clear image viewing.
  • Image Storage: Internal memory capable of storing approximately 10,000 images.
  • Battery Life: Approximately 5.5 hours in MSX mode; 3.8 hours with flashlight only.
  • Durability: Designed to withstand a 2-meter (6.6 feet) drop; IP67-rated for protection against dust and water.
  • Flashlight: Integrated bright LED flashlight with 300 lumens output to illuminate dark areas.
  • Compact and Lightweight: Measures 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 inches) and weighs 0.41 kg (0.90 lb), making it portable and easy to handle.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$719.00 USD
$719.00 USD $719.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: 88701-0101
View full details

Product Information

FLIR K1 - Situational Awareness Camera

The FLIR K1 is a rugged, compact thermal imaging camera designed to enhance situational awareness for commanders, officers, and inspectors. It features a 160 × 120 pixel infrared sensor, providing clear thermal images to assess scenes in total darkness and through smoke. The device includes a 2.4-inch backlit LCD display with a resolution of 320 × 240 pixels, ensuring detailed image viewing. Equipped with an integrated 300-lumen flashlight, the K1 illuminates areas to aid navigation and crew management. The camera offers a 57° × 44° field of view, allowing for comprehensive scene assessment. It can store approximately 10,000 sets of radiometric thermal and visual images on its internal 3.9 GB memory, facilitating convenient documentation and reporting. The K1 is built to withstand harsh conditions, with an IP67 rating for water resistance and the ability to endure a 2-meter drop onto concrete. Its rechargeable Li-ion battery provides up to 5.5 hours of continuous operation in MSX mode, ensuring reliability during extended missions.

Compact and Rugged Thermal Imaging for First Responders

The FLIR K1 is a powerful handheld thermal camera designed to assist firefighters, law enforcement, and emergency responders in low-visibility conditions. Equipped with a 160 × 120 infrared resolution sensor and FLIR’s MSX® (Multi-Spectral Dynamic Imaging) technology, it provides enhanced thermal imaging by overlaying visible-light details onto infrared images. This ensures first responders can quickly assess situations, locate heat sources, and navigate through smoke, darkness, or challenging environments.

Dual-Mode Imaging for Critical Situational Awareness

The FLIR K1 features dual thermal and visible-light cameras, allowing users to switch between full thermal imaging and a blended MSX® view for enhanced scene interpretation. The high-contrast display helps responders detect hotspots, structural weaknesses, and potential hazards, making it an essential tool for fire scene assessment, search and rescue operations, and law enforcement investigations.

Built for Durability in Harsh Environments

Designed to withstand extreme conditions, the FLIR K1 is IP67-rated for water and dust resistance and can survive drops from up to 2 meters (6.6 feet). Its lightweight, ergonomic design ensures comfortable use during extended missions, while the built-in flashlight enhances visibility in dark environments. With simple one-handed operation, responders can focus on the task at hand without fumbling with complex controls.

Long Battery Life and Secure Data Storage

The FLIR K1 is equipped with a five-hour rechargeable battery, ensuring extended operational use without frequent recharging. The camera also features 8GB of internal storage, allowing users to capture and store up to 10,000 thermal and visual images for later review and reporting. This capability ensures incident documentation, post-event analysis, and evidence collection are streamlined and efficient.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
