Fixed Security Camera

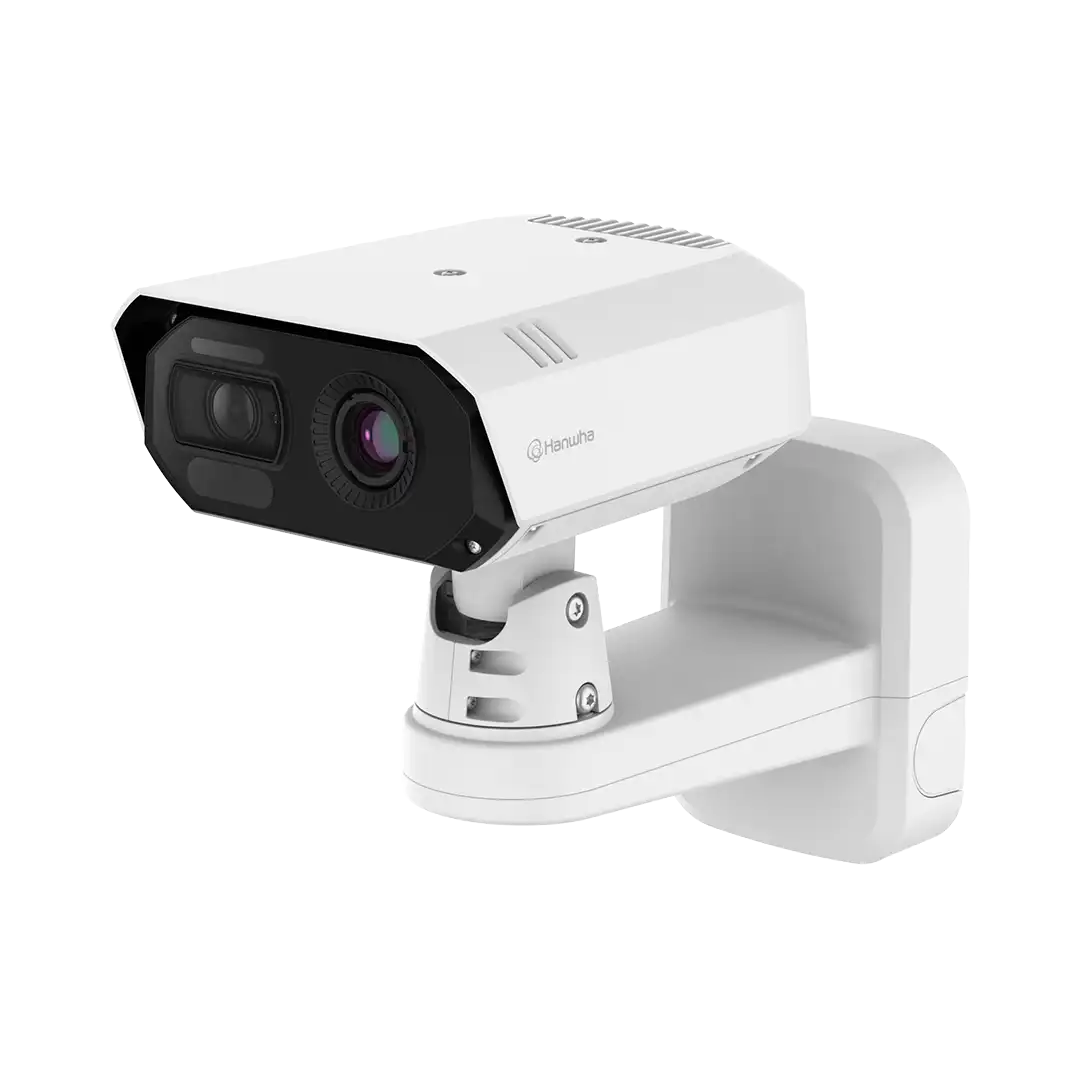

Hanwha TNM-C4940TD Bi-spectrum AI Thermal Camera VGA thermal / 4K visible

Hanwha TNM-C4940TD Bi-spectrum AI Thermal Camera VGA thermal / 4K visible

  • Camera Type: Wisenet T Series Bi-spectrum AI Thermal Camera
  • Thermal Imaging:
    • VGA (640 × 480) thermal sensor
    • Built-in 9.1 mm fixed lens (FoV: 50°)
    • WiseStream II compression
  • Visible Imaging:
    • 4K visible sensor (3840 × 2160)
    • 4.4–9.3 mm motorized varifocal lens (FoV: 112.1°–47.5°)
    • WDR 120 dB
    • IR viewable length: 30 m (98 ft)
    • WiseNR II and WiseStream III optimization (visible only)
  • Video Compression: Triple codec – H.265, H.264, MJPEG
  • AI Analytics (Visible Only):
    • Object detection: Person, Face, Vehicle, License Plate
    • IVA: Virtual line, virtual area, enter/exit, loitering, directional detection, intrusion
    • Traffic detection: Stopped vehicle, traffic jam
  • Cybersecurity: FIPS 140-2 certified
  • Edge Storage: Dual microSD card slots (up to 512 GB each)
  • Power Input: PoE+ or 12V DC
  • Protection Rating: IP66/IP67, IK10, NEMA 4X, NEMA TS 2 (2.2.8, 2.2.9)
  • Mounting: Integrated wall & pole mount design
  • Use Case: Ideal for perimeter protection, intelligent traffic monitoring, and industrial-grade surveillance with thermal/visible integration
  • Order Note: Special order; non-cancellable and non-returnable

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$10,400.00 USD
$10,400.00 USD $10,400.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: TNM-C4940TD
View full details

Product Information

Hanwha TNM-C4940TD Bi-spectrum AI Thermal Camera VGA thermal / 4K visible

The Hanwha TNM-C4940TD Bi-spectrum AI Thermal Camera (SKU: TNM-C4940TD) delivers unmatched situational awareness by combining high-resolution VGA thermal imaging with ultra-high-definition 4K visible video. Ideal for perimeter protection, industrial monitoring, and critical infrastructure, this dual-sensor camera provides simultaneous thermal and optical views for advanced detection and visual verification—day or night, in any weather.

The VGA thermal sensor enables long-range detection and supports radiometric temperature monitoring, allowing for real-time alerts based on user-defined thresholds. The integrated AI analytics intelligently differentiate between humans and vehicles to minimize false alarms and improve operational efficiency. The 4K visible channel ensures detailed identification and scene context, even in complex environments. Additional features include H.265/H.264/MJPEG compression with WiseStream II, bi-directional audio, SDXC edge storage (up to 256GB), and flexible power options (PoE+, 12V DC, 24V AC). Housed in an IP66, NEMA 4X, IK10-rated enclosure, the TNM-C4940TD is built for durability and reliable performance in the harshest conditions.

Dual-Spectrum Imaging for Enhanced Detection

The Hanwha TNM-C4940TD combines VGA (640 x 480) thermal imaging with a 4K visible camera, offering a bi-spectrum solution for comprehensive monitoring. This unique pairing allows operators to detect heat signatures with thermal imaging and verify incidents with ultra-high-definition visible video, making it ideal for high-security surveillance, perimeter protection, and critical infrastructure monitoring.

AI-Powered Object Detection for Smarter Security

The camera incorporates AI-driven analytics, which intelligently detects and classifies people, vehicles, and other objects in the visible spectrum, while filtering out environmental noise such as foliage or animals. This ensures fewer false alarms and faster response times in large, complex monitoring environments, making it a powerful tool for automated surveillance.

Precision Thermal Imaging with Radiometric Temperature Measurement

The TNM-C4940TD offers radiometric temperature measurement for every pixel of the thermal image, providing real-time temperature data. Users can set customizable temperature thresholds for early fire detection, overheating equipment, and safety monitoring—enabling rapid intervention in high-risk environments such as industrial plants, utilities, and transportation hubs.

Robust Design with Seamless Integration

Built with an IP66, IK10, and NEMA 4X-rated housing, the TNM-C4940TD is weatherproof, impact-resistant, and able to operate in extreme temperatures (from -40°F to +140°F). It supports H.265/H.264/MJPEG compression, WiseStream II, and has onboard SD card storage (up to 256GB). Additionally, it features alarm I/O and two-way audio, making it highly adaptable to VMS platforms and SCADA systems.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
