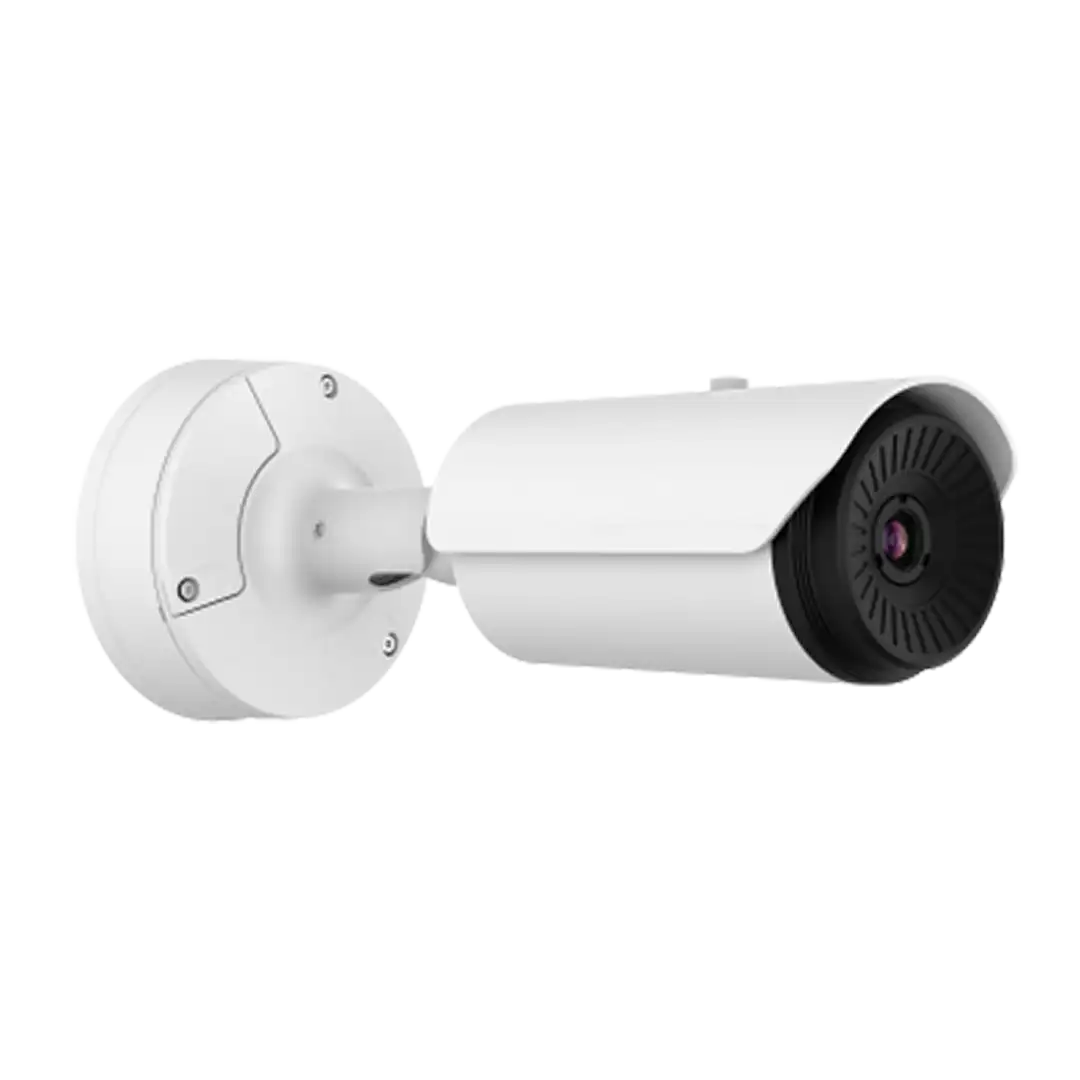

  • Hanwha TNO-3020T/TNO-3030T/3040T/3050T/L3030T/4030T/L4030T/4040T/L4040T/4050T - straight side angle
  • Hanwha TNO-3020T/TNO-3030T/3040T/3050T/L3030T/4030T/L4030T/4040T/L4040T/4040TR/4050T - front view
1 4

Fixed Security Camera

Hanwha TNO-3030T QVGA Thermal Bullet

Hanwha TNO-3030T QVGA Thermal Bullet

  • Thermal Resolution: 320 × 240 (QVGA)
  • Lens: Built-in 13.7 mm fixed lens
  • Frame Rate: 30 fps @ all resolutions (H.265, H.264, MJPEG)
  • Video Compression: Triple codec support – H.265, H.264, MJPEG
  • Bandwidth Optimization: WiseStream II technology
  • Color Palettes: 7 selectable thermal color palettes
  • Intelligent Analytics: Tampering, loitering, directional detection, virtual fence line, enter/exit, appear/disappear, motion detection, audio detection, sound classification, shock detection, temperature change detection
  • Audio Support: 2-way bi-directional audio
  • Alarm I/O: Supported
  • Edge Storage: SD / SDHC / SDXC memory slot (up to 256 GB)
  • Power Input: PoE, 24V AC, or 12V DC
  • Operating Temperature Range: –40°F to +140°F
  • Protection Rating: IP66, NEMA 4X, IK10
  • Order Note: Special order; non-cancellable and non-returnable

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$4,100.00 USD
$4,100.00 USD $4,100.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: TNO-3030T
View full details

Product Information

Hanwha TNO-3030T QVGA Thermal Bullet

The Hanwha TNO-3030T QVGA Thermal Bullet Camera (SKU: TNO-3030T) is a high-performance thermal imaging solution designed for accurate detection in total darkness and challenging visibility conditions such as smoke, fog, and backlighting. Equipped with a 320 x 240 thermal resolution sensor and a 13.7mm fixed lens, it offers extended detection capabilities—ideal for monitoring large perimeters and critical infrastructure with a human detection range up to 370 meters and vehicle detection up to 950 meters.

Built for intelligent monitoring, the TNO-3030T supports H.265, H.264, and MJPEG compression with WiseStream II for efficient bandwidth usage. It features a full suite of smart analytics, including motion detection, virtual line crossing, loitering, shock detection, and temperature change alerts. With two-way audio, SDXC card support up to 256GB, and multiple power options (PoE, 12V DC, 24V AC), this camera is enclosed in an IP66, NEMA 4X, and IK10-rated housing for reliable outdoor use in extreme environments.

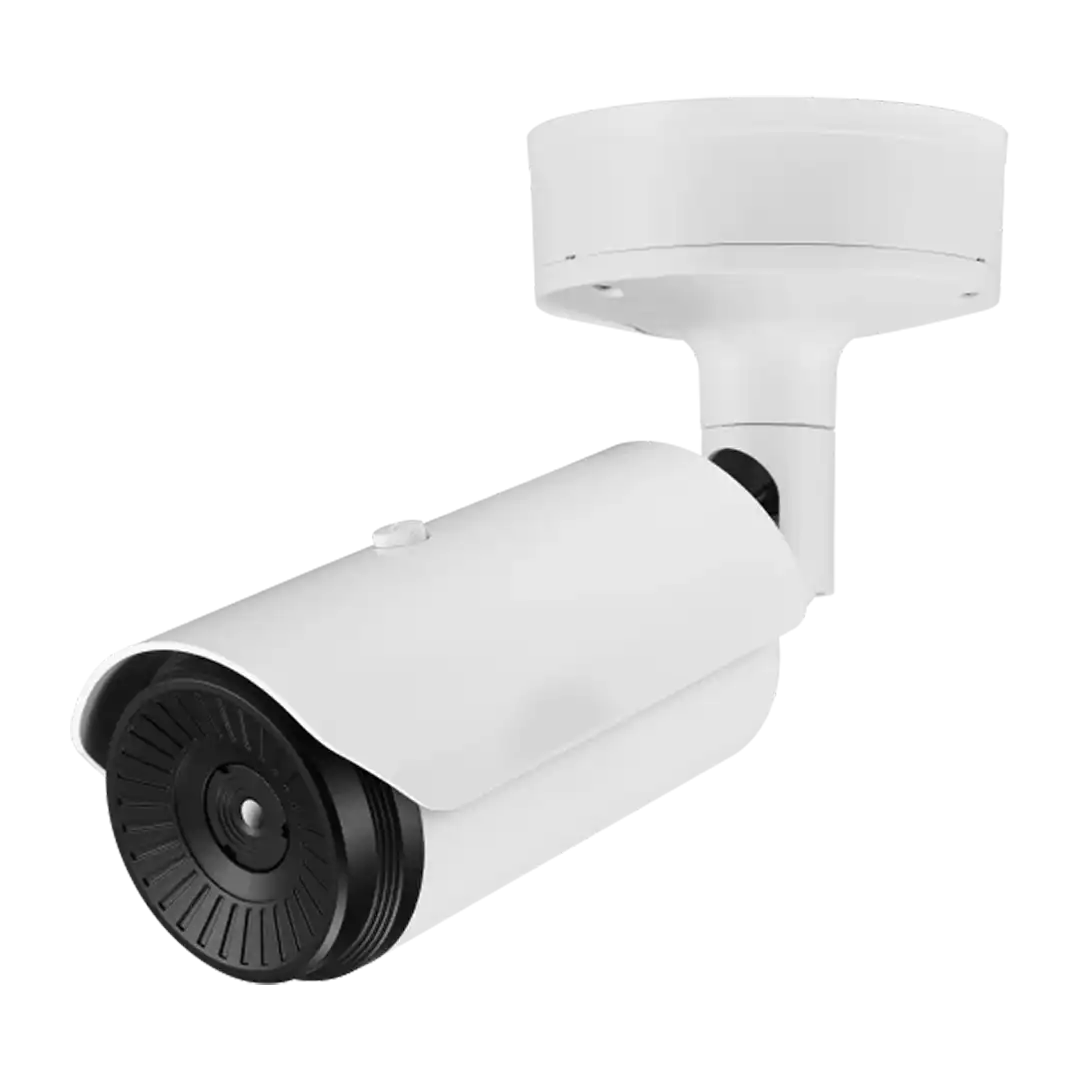

Hanwha TNO-3020T/TNO-3030T/3040T/3050T/L3030T/4030T/L4030T/TNO-4030TR/4040T/L4040T/L4040TR/4050T - side angle

Mid-Range Thermal Surveillance with Sharp Detection

The Hanwha TNO-3030T features a QVGA thermal sensor (320 x 240) and a 13.7mm fixed lens, offering enhanced detection range for mid- to long-distance monitoring. It excels in total darkness, smoke, fog, or bright backlighting—ideal for border security, infrastructure protection, and industrial site surveillance.

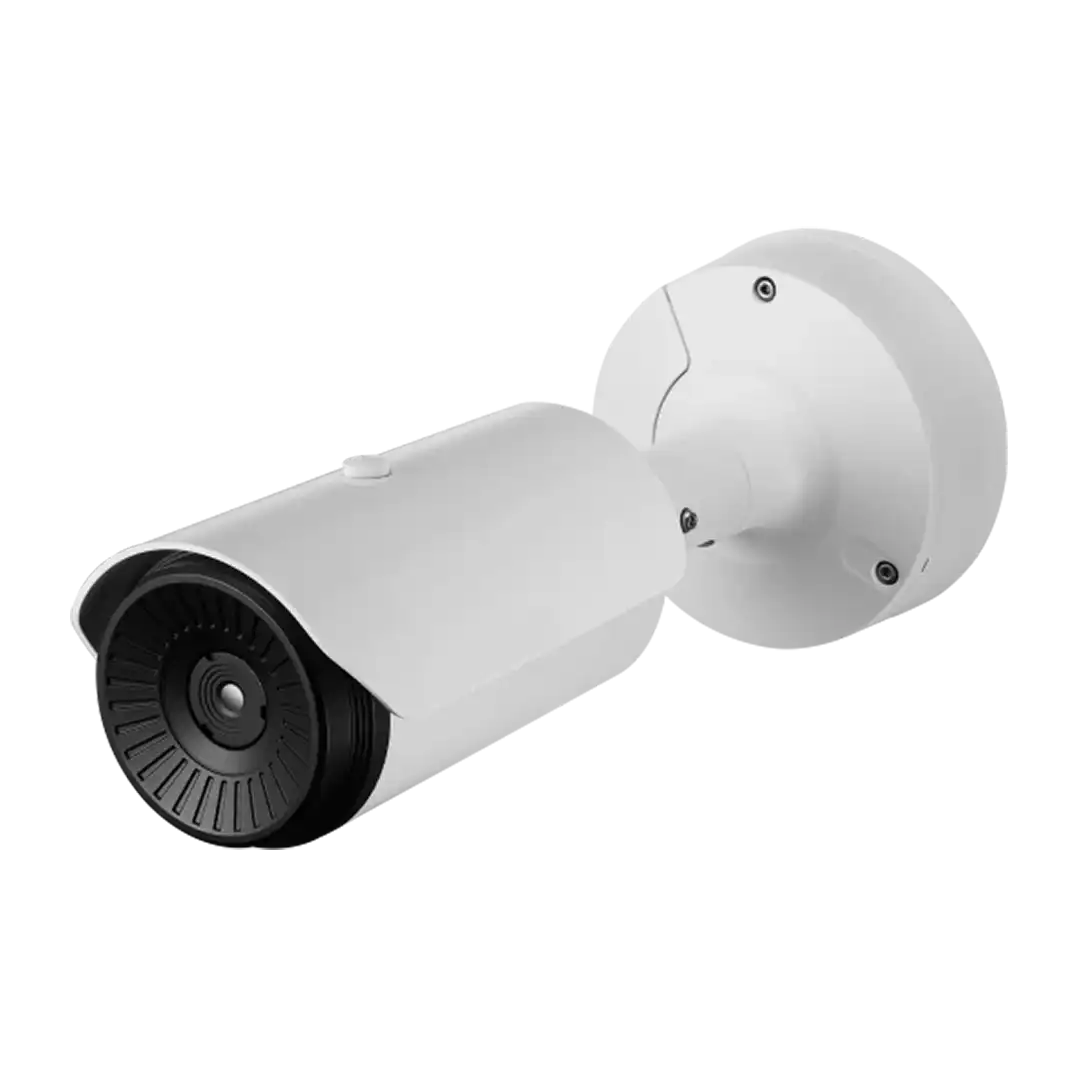

Hanwha TNO-3030TL/TNO-3030T/TNO-L4030TR/TNO-4040TR/L4040TR/TNO-4050T - right side view

Built-In Analytics for Smarter Perimeter Protection

This camera includes intelligent analytics such as virtual fence line detection, motion tracking, loitering, shock detection, and sudden temperature change alerts. These onboard tools enable automated threat identification and real-time alerts, reducing the need for constant manual monitoring and helping teams act faster.

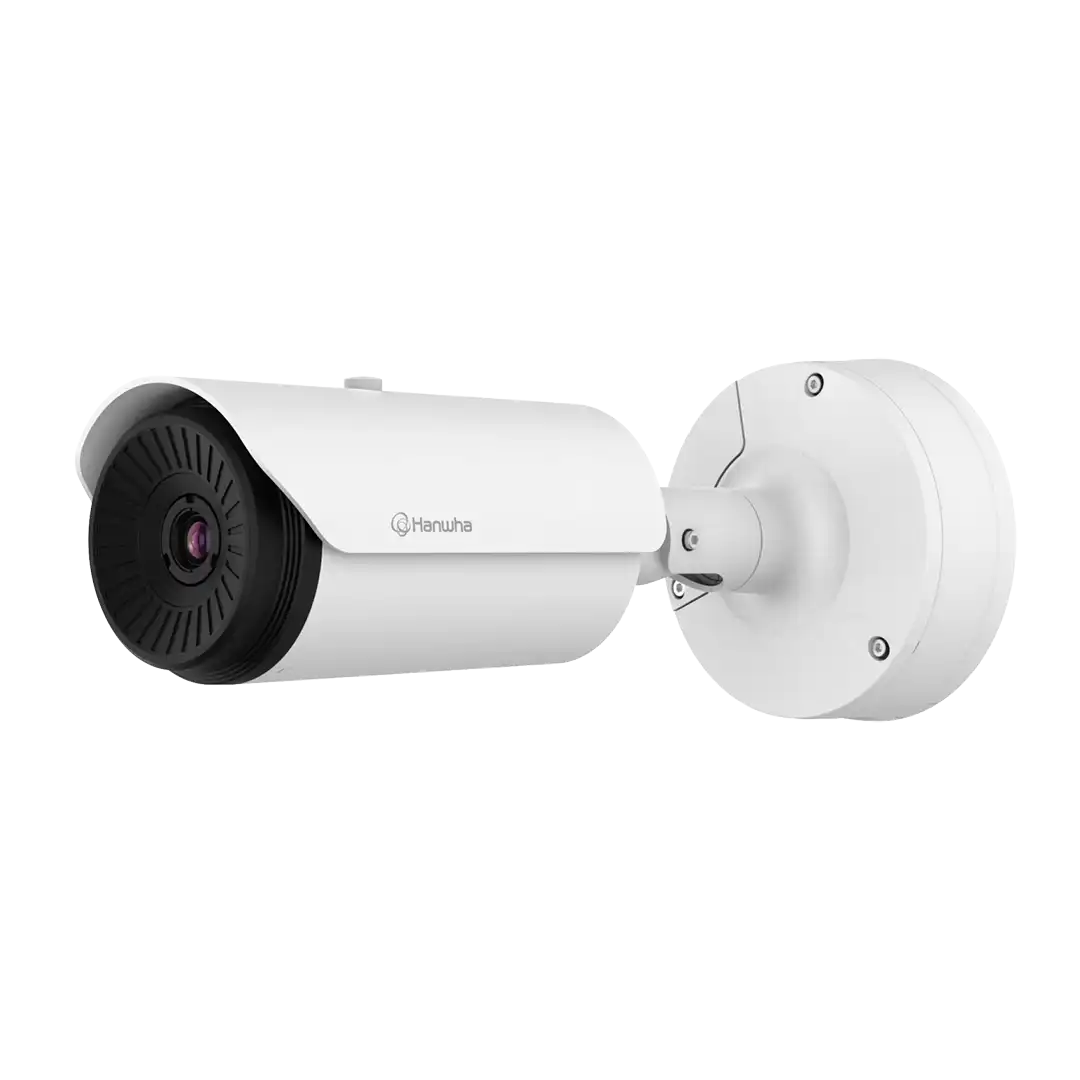

Hanwha TNO-3030TL/TNO-3030T/TNO-L4030TR/TNO-4040TR/L4040TR/TNO-4050T - right side view

Built to Withstand Harsh Conditions

With a rugged IP66-, IK10-, and NEMA 4X-rated housing, the TNO-3030T is made for outdoor deployment in the toughest environments. It performs reliably in temperatures from -40°F to +140°F, and its sealed housing protects internal components from dust, water, and impacts—ensuring long-term durability in demanding applications.

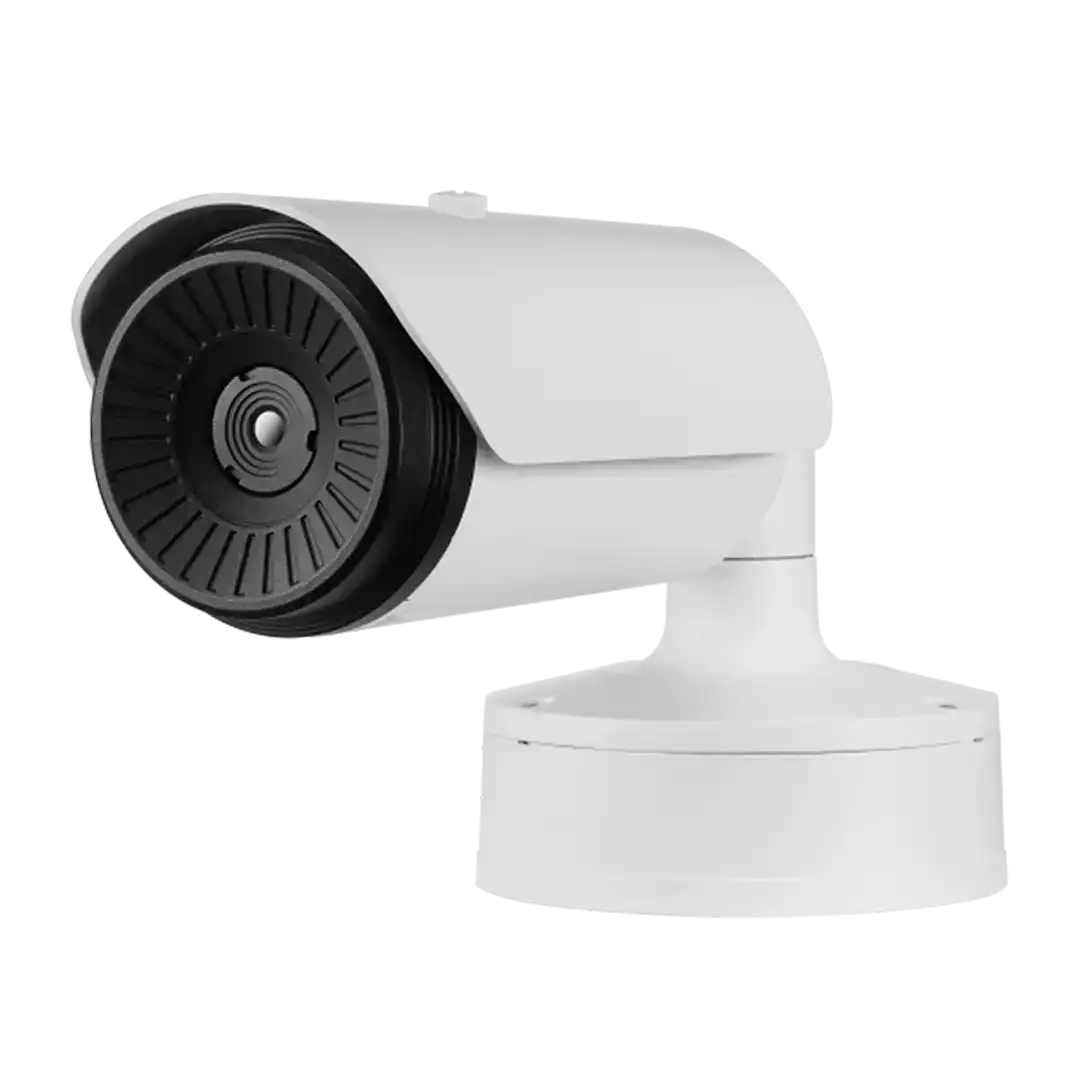

Hanwha TNO-3020T/TNO-3030T/3040T/3050T/L3030T/4030T/L4030T/4040T/L4040T/4040TR/4050T - front view

Versatile Integration with Edge Storage and Audio

Support for H.265, H.264, MJPEG, and WiseStream II allows efficient streaming and storage, while two-way audio and alarm I/O offer expanded system interactivity. An onboard microSD/SDHC/SDXC slot (up to 256GB) supports edge recording, making this camera a self-contained surveillance solution when needed.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
