Fixed Security Camera

Hanwha TNO-C3010TRA AI QVGA Radiometric Bullet

Hanwha TNO-C3010TRA AI QVGA Radiometric Bullet

  • Thermal Resolution: 320 × 240 (QVGA) radiometric thermal sensor
  • Lens: Built-in 4.7 mm fixed lens
  • AI Analytics: Object detection/classification (person, vehicle), temperature-based event triggers, reduced false alarms
  • Radiometric Features: Temperature measurement with alarms, isothermal palette, configurable detection zones
  • Frame Rate: Up to 30 fps @ all resolutions (H.265, H.264, MJPEG)
  • Video Compression: H.265, H.264, MJPEG triple codec support
  • Bandwidth Optimization: WiseStream II technology
  • Color Palettes: 7 selectable thermal palettes
  • Smart Detection: Tampering, loitering, directional detection, virtual line, appear/disappear, motion detection, audio detection, sound classification, shock detection, temperature change detection
  • Edge Storage: SD / SDHC / SDXC memory slot (up to 256 GB)
  • Audio Support: 2-way bi-directional audio
  • Alarm I/O: Supported
  • Power Input: PoE, 24V AC, or 12V DC
  • Operating Temperature Range: –40°F to +140°F
  • Protection Rating: IP66, NEMA 4X, IK10
  • Use Case: Ideal for AI-enhanced perimeter monitoring, temperature surveillance, and early incident detection in industrial or high-security environments
  • Order Note: Special order; non-cancellable and non-returnable

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

Regular price $5,650.00 USD
Regular price $5,650.00 USD Sale price $5,650.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: TNO-C3010TRA

View full details

Product Information

Hanwha TNO-C3010TRA AI QVGA Radiometric Bullet

The Hanwha TNO-C3010TRA AI QVGA Radiometric Bullet Camera (SKU: TNO-C3010TRA) combines powerful thermal imaging with advanced AI-based analytics and radiometric temperature detection for precise, intelligent monitoring in challenging environments. With a 320 x 240 resolution thermal sensor and a 2.7mm fixed lens, this camera provides wide-angle coverage ideal for short-range perimeter protection and industrial temperature monitoring.

Unlike standard thermal cameras, the TNO-C3010TRA offers radiometric functionality, enabling accurate temperature measurements across the scene with the ability to trigger alarms based on user-defined thresholds. Integrated AI enhances detection accuracy by filtering out irrelevant motion, reducing false alarms, and identifying humans and vehicles with greater reliability. Supporting H.265, H.264, and MJPEG compression with WiseStream II, the camera ensures efficient bandwidth and storage management. Additional features include bi-directional audio, SDXC edge storage (up to 256GB), multiple power input options (PoE, 12V DC, 24V AC), and a rugged IP66, NEMA 4X, IK10-rated housing for reliable outdoor deployment in any condition.

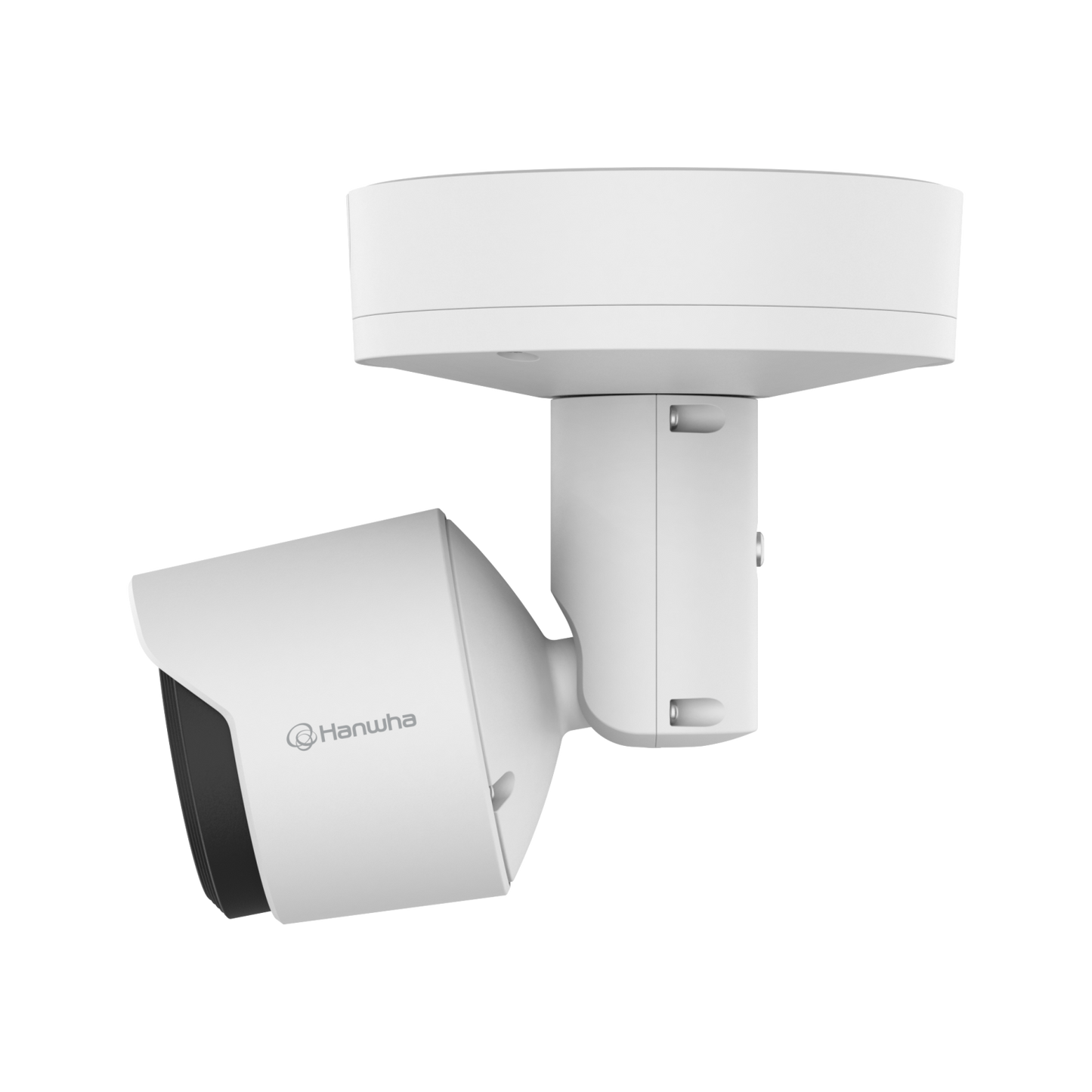

Hanwha TNO-C3010TRA/TNO-C3012TRA/TNO-C3020TRA/TNO-C3022TRA/TNO-C3030TRA/TNO-C3032TRA AI QVGA Radiometric Bullet - left side view

Radiometric Thermal Imaging with AI-Powered Insight

The Hanwha TNO-C3010TRA combines QVGA thermal imaging with radiometric measurement and edge-based AI analytics, delivering intelligent temperature monitoring and enhanced detection accuracy. Ideal for fire prevention, industrial inspection, and perimeter protection, it allows operators to track heat anomalies with temperature data embedded directly in the video stream.

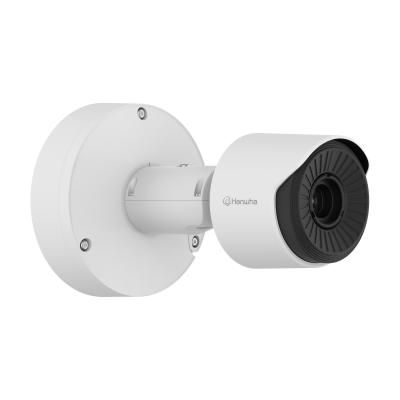

Hanwha TNO-C3010TRA/TNO-C3012TRA/TNO-C3020TRA/TNO-C3022TRA/TNO-C3030TRA/TNO-C3032TRA AI QVGA Radiometric Bullet - right side view

AI-Based Object Detection for Smarter Surveillance

With integrated AI object classification, the TNO-C3010TRA reduces false alarms by distinguishing between humans, vehicles, and irrelevant motion such as animals or trees. This boosts operational efficiency in real-time monitoring while enabling precise, automated event response in high-security or high-risk environments.

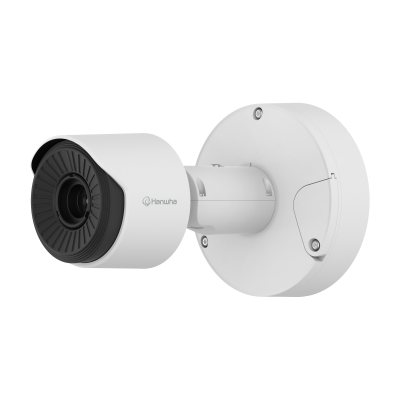

Hanwha TNO-C3010TRA/TNO-C3012TRA/TNO-C3020TRA/TNO-C3022TRA/TNO-C3030TRA/TNO-C3032TRA AI QVGA Radiometric Bullet - left side view

Accurate Temperature Monitoring with Alarm Triggers

The camera supports radiometric analysis with temperature threshold detection and alarm triggering. Whether monitoring for overheating equipment, unauthorized entry, or early fire detection, the TNO-C3010TRA offers ±8°C accuracy and allows for automated alerts when temperature exceeds set limits—minimizing risk before damage occurs.

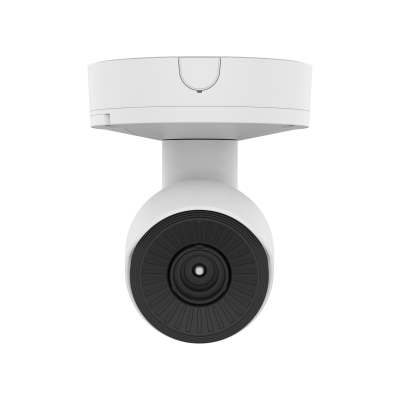

Hanwha TNO-C3010TRA/TNO-C3012TRA/TNO-C3020TRA/TNO-C3022TRA/TNO-C3030TRA/TNO-C3032TRA AI QVGA Radiometric Bullet - front view

Built for Harsh Conditions with Efficient System Integration

Encased in a weather- and impact-resistant IP66/IK10/NEMA 4X housing, this thermal bullet camera withstands extreme outdoor environments. It features H.265/H.264/MJPEG + WiseStream II, SD card edge storage, audio I/O, and alarm connections—ensuring easy integration with both modern and legacy security infrastructures.

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
