Fixed Security Camera

Hanwha TNO-L4040TR VGA Thermal Bullet

Hanwha TNO-L4040TR VGA Thermal Bullet

  • Thermal Resolution: Max. 640 × 480 (VGA) radiometric thermal sensor
  • Lens: Built-in 19 mm fixed focal length
  • Frame Rate: Up to 8 fps @ all resolutions (H.265, H.264, MJPEG)
  • Video Compression: H.265, H.264, MJPEG codec support
  • Bandwidth Optimization: WiseStream II technology
  • Special Viewing Mode: Hallway View supported
  • Radiometric Features: Temperature detection range: –20°C to 130°C (–4°F to 266°F), hybrid palette options, spot temperature reading
  • Smart Detection: Directional detection, motion detection, appear/disappear, enter/exit, loitering, tampering, virtual line, audio detection, temperature detection, sound classification, shock detection
  • Edge Storage: Micro SD / SDHC / SDXC memory slot (up to 256 GB)
  • Power Input: PoE (IEEE 802.3af), 24V AC, or 12V DC
  • Protection Rating: IP66, IK10, NEMA 4X
  • Use Case: Designed for precise thermal monitoring, behavior detection, and temperature-based surveillance in challenging conditions
  • Export Compliance: Thermal cameras with frame rates under 9 fps do not require end user export documentation
  • Order Note: Special order; non-cancellable and non-returnable

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$8,400.00 USD
$8,400.00 USD $8,400.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: TNO-L4040TR
View full details

Product Information

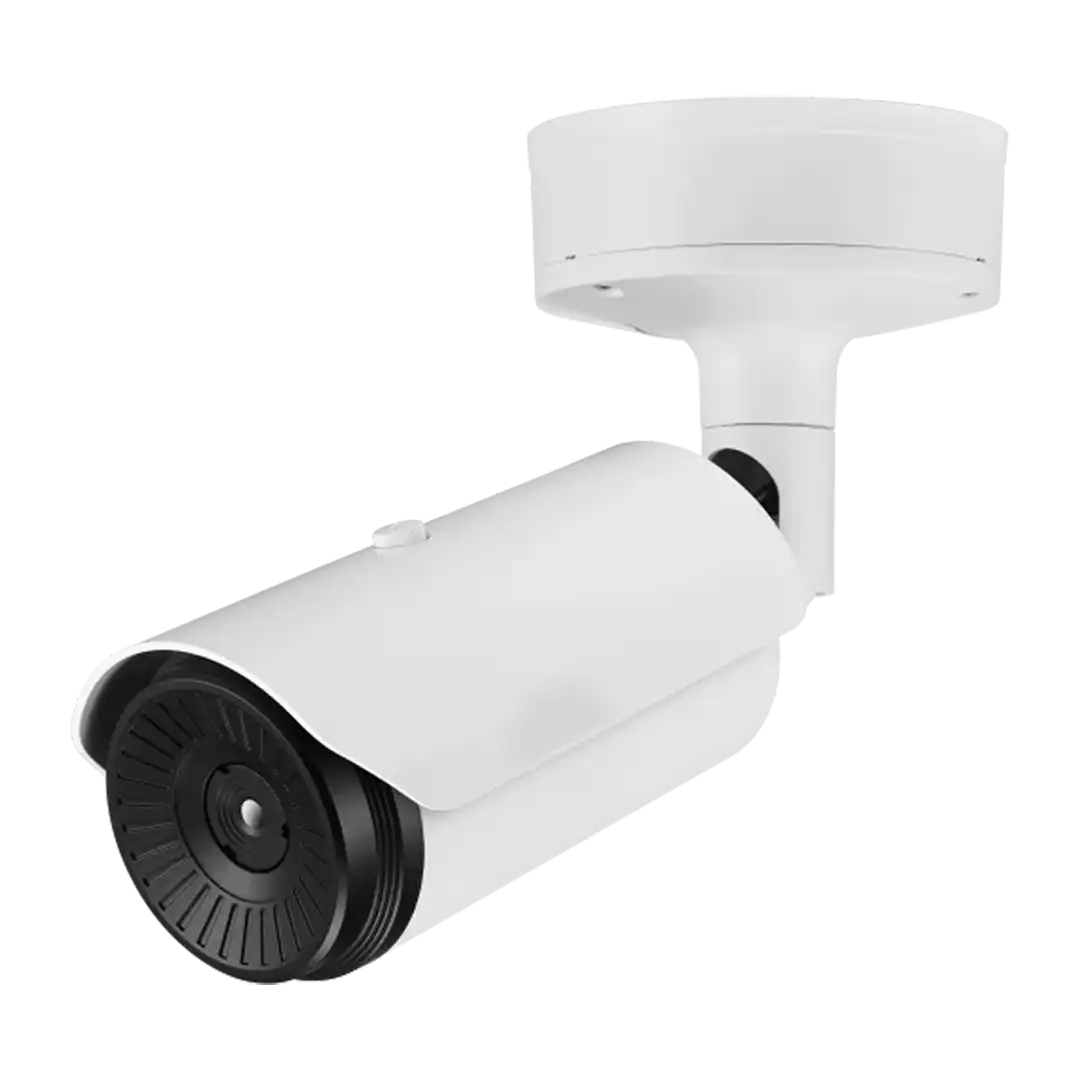

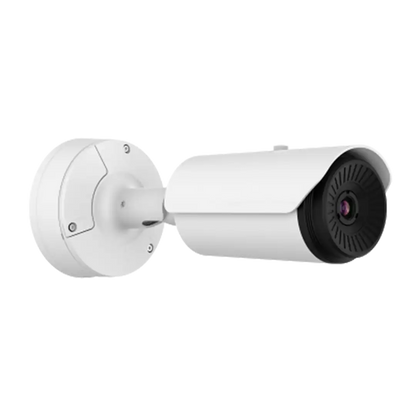

Hanwha TNO-L4040TR VGA Thermal Bullet

The Hanwha TNO-L4040TR VGA Radiometric Bullet Camera (SKU: TNO-L4040TR) combines high-resolution thermal imaging with radiometric temperature measurement for precise monitoring in the most demanding environments. Featuring a 640 x 480 VGA thermal sensor and a 19mm fixed lens, it provides long-range detection and accurate temperature readings—ideal for perimeter security, industrial safety, and equipment diagnostics.

Radiometric capabilities allow the camera to detect and alert on temperature thresholds, enabling early intervention for overheating or potential fire risks. Intelligent analytics include motion detection, virtual fence, loitering, shock detection, and temperature change detection. With support for H.265/H.264/MJPEG compression and WiseStream II, it ensures efficient bandwidth and storage use. Additional features include bi-directional audio, SDXC edge storage (up to 256GB), and flexible power options (PoE, 12V DC, 24V AC). Its rugged IP66, NEMA 4X, IK10-rated housing ensures reliable performance in harsh outdoor conditions.

Long-Range VGA Thermal Imaging with Radiometric Capability

The Hanwha TNO-L4040TR features a 640 x 480 VGA thermal sensor and a 55mm fixed lens, delivering ultra-long-range detection with the added benefit of radiometric temperature measurement. It’s ideal for border security, industrial facility monitoring, fire detection, and environmental hazard detection, where both imaging clarity and thermal accuracy are critical.

Real-Time Temperature Monitoring with Pixel-Level Precision

With built-in radiometric functionality, the TNO-L4040TR enables precise temperature readings per pixel and allows users to set custom alarm thresholds. This supports automated alerts when specific heat signatures or dangerous temperature variations are detected—critical for preventive maintenance, safety enforcement, and operational oversight.

Engineered for Extreme Environments and 24/7 Reliability

Rated IP66, IK10, and NEMA 4X, this camera is built to perform in harsh outdoor or industrial settings, from corrosive coastal environments to remote infrastructure zones. Its wide operating temperature range (-40°F to +140°F) ensures consistent performance in extreme conditions, supporting uninterrupted thermal surveillance.

Efficient Compression and Edge Storage Support

The TNO-L4040TR offers H.265, H.264, MJPEG, and WiseStream II compression for optimized bandwidth and storage. Additional features like two-way audio, alarm I/O, and a microSD/SDHC/SDXC slot (up to 256GB) make it a flexible option for both standalone deployments and enterprise surveillance systems.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
