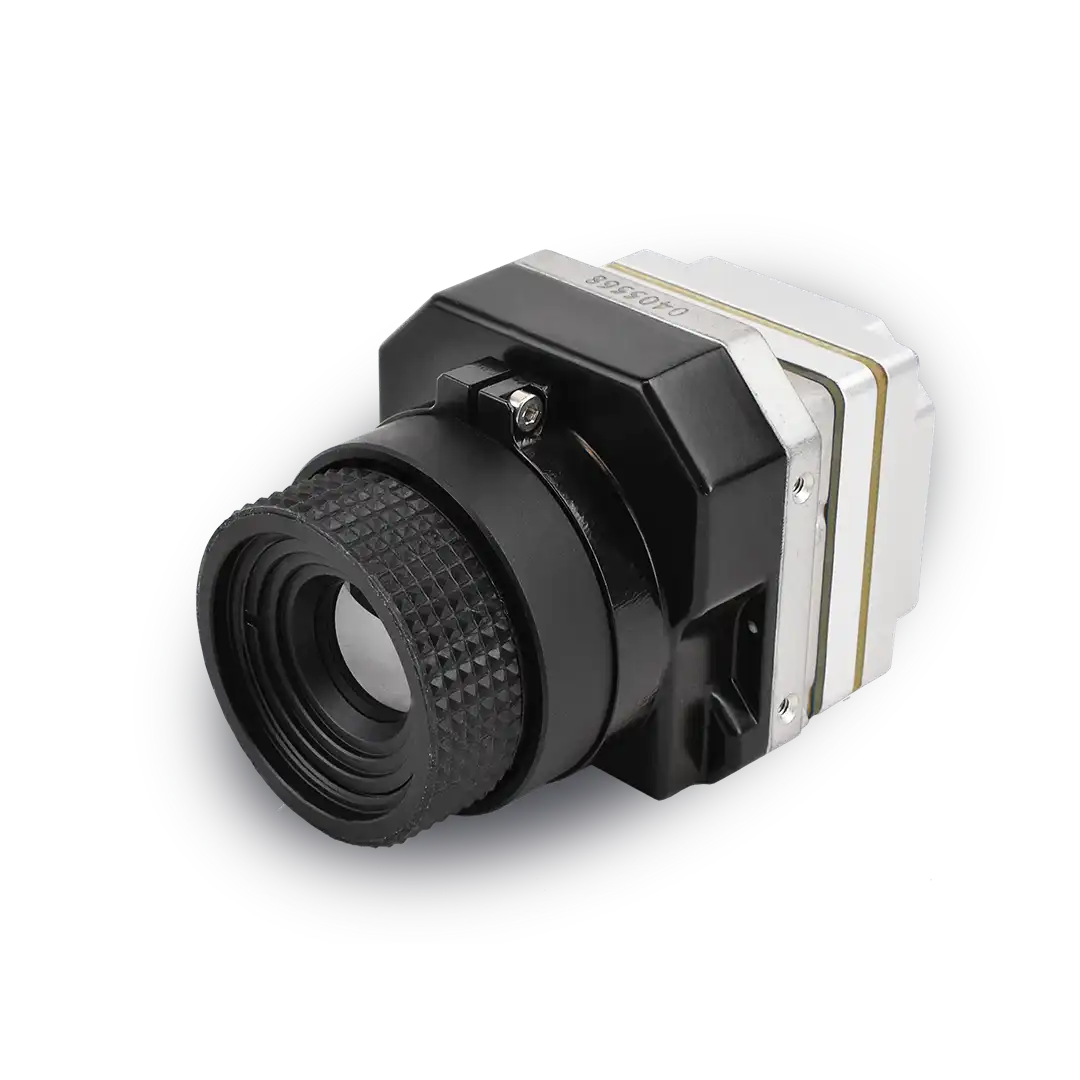

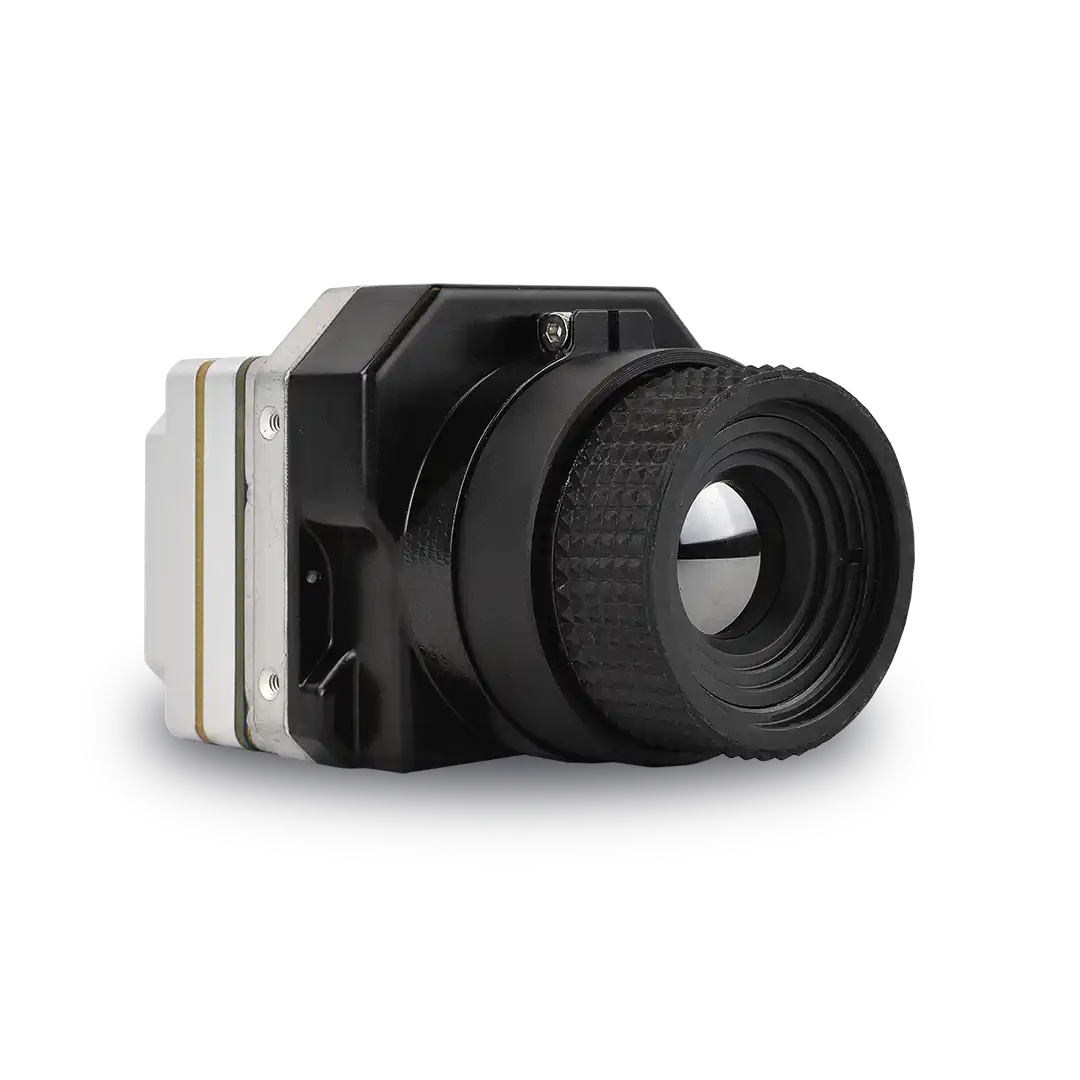

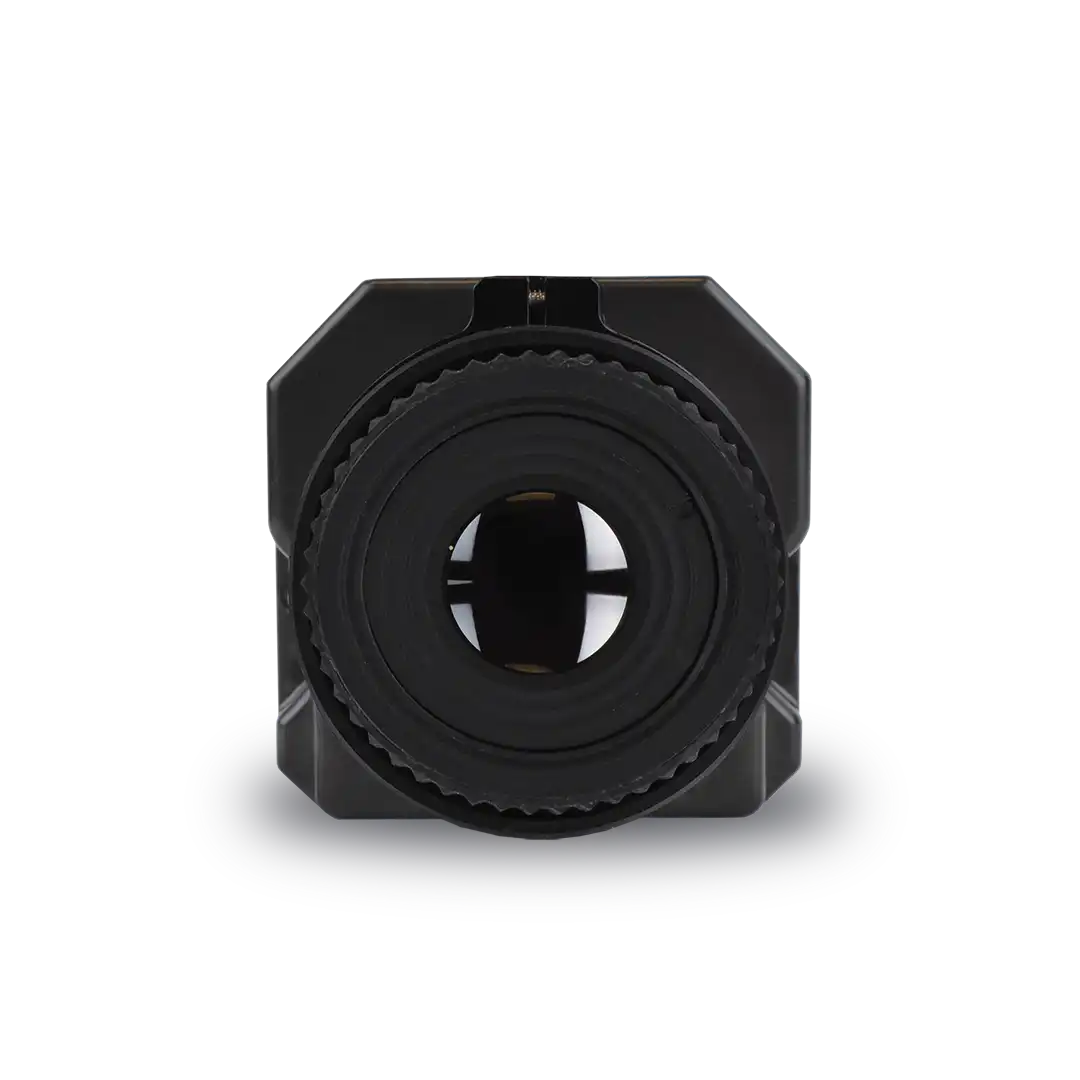

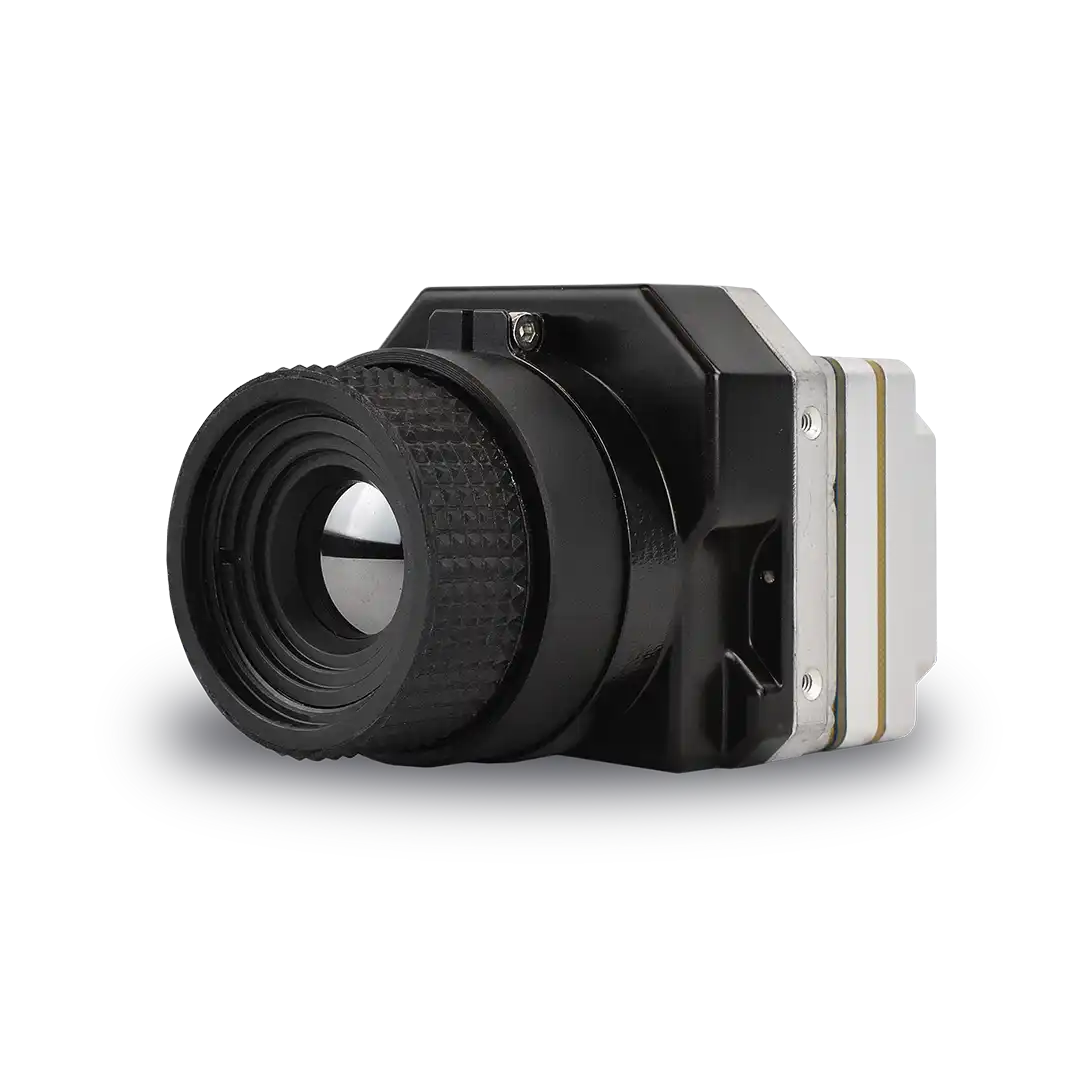

ICI Compact Radiometric Infrared Camera

ICI 8320S (7.5 Hz)

ICI 8320S (7.5 Hz)

IR Flash software subscription required for purchase.

  • Thermal Imaging Resolution: 336 × 256 pixels for precise thermal imaging.
  • Spectral Range: 7 µm to 14 µm (longwave infrared, LWIR) for industrial and scientific applications.
  • Temperature Measurement Range: –20°C to 120°C (–4°F to 248°F), with optional calibration up to 500°C (932°F).
  • Accuracy:
    • Standard: ±1°C (±1.8°F) or ±1% of reading.
    • Hi-Temp Mode: ±5°C (±9°F) or ±5% of reading.
  • Field of View (FOV): Lens dependent, with multiple options available for different applications.
  • Image Frequency: 7.5 Hz for compliance with export regulations.
  • Detector Type: Uncooled VOx microbolometer for maintenance-free operation.
  • NETD (Thermal Sensitivity): <20 mK at 30°C (86°F), ensuring detection of minute temperature differences.
  • Focus: Lens-dependent manual focus for accurate imaging.
  • Interfaces: USB Mini-B for fast data transfer and system integration.
  • Data Streaming: Raw data output for real-time analysis and process monitoring.
  • Dynamic Range: 14-bit for enhanced image quality.
  • Durability: IP54-rated aluminum enclosure for protection against dust and moisture.
  • Operating Temperature Range: –40°C to 80°C (–40°F to 176°F), ensuring reliable performance in extreme conditions.
  • Storage Temperature Range: –40°C to 70°C (–40°F to 158°F).
  • Compact and Lightweight: Weighs approximately 72 g (2.54 oz) and measures 44.5 × 44.5 × 46.5 mm (1.75 × 1.75 × 1.83 in) without a lens, making it ideal for integration into various applications.
  • Power: 5V DC, 500 mA, consuming less than 1.2W.
  • Shock/Vibration Resistance: 75 G/4.3 G, ensuring durability in demanding environments.
  • Humidity Tolerance: 5% to 95% non-condensing.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$6,000.00 USD
$9,999.00 USD $6,000.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: CBS8320S25
View full details

Product Information

ICI 8320S (7.5 Hz)

The ICI 8320 S-Series infrared camera offers exceptional image sensitivity and accuracy in a compact 336 x 256 radiometric imager. Designed for tight spaces, it measures less than 5 in³ in overall size while maintaining high-performance thermal imaging. The camera supports temperature measurements up to 120°C (248°F), with an optional extended range reaching 500°C (932°F). Featuring a 7.5 Hz frame rate, the S-Series is optimized for applications requiring lower frame capture speeds. It integrates seamlessly with UAV Sensor Control Modules, making it ideal for aerial thermal imaging and industrial automation. The lightweight aluminum enclosure, USB Mini-B interface, and low power consumption (<1.2 W) ensure easy deployment across multiple platforms. The camera offers a broad spectral band of 7 µm to 14 µm, dynamic 14-bit radiometric streaming, and multiple lens options for customized field-of-view configurations. Suitable for industrial vision systems, robotics, process control, medical imaging, and security applications, the ICI 8320 S-Series provides reliable thermal imaging in a durable, IP54-rated design.

Compact and High-Sensitivity Thermal Imaging

The ICI 8320S is a precision infrared camera designed for industrial automation, UAV integration, and scientific research. Featuring a 336 × 256 pixel resolution and an ultra-sensitive thermal detector with <20 mK sensitivity, it provides accurate temperature measurements and high-contrast thermal images. With a compact design measuring less than 5 cubic inches, it fits into tight spaces for embedded system applications.

Radiometric Data Streaming with Lower Frame Rate

The ICI 8320S supports radiometric data streaming, enabling real-time temperature monitoring for industrial process control, robotics, and medical radiometric imaging. With a frame rate of 7.5 Hz (S-Series), it ensures efficient thermal imaging for applications requiring lower bandwidth or regulatory compliance while maintaining detailed temperature accuracy.

Durable and Lightweight for Versatile Deployments

Built with a rugged aluminum enclosure, the ICI 8320S is designed to withstand harsh environments while maintaining a lightweight form factor of just 72 grams (2.54 oz). With an IP54 rating for dust and water resistance, it is suitable for field applications, aerial imaging, and security monitoring. The low power consumption of under 1.2 W via USB ensures efficient operation in embedded and mobile systems.

Flexible Lens and Software Options for Custom Applications

The ICI 8320S offers multiple lens options, including manual focus and athermalized lenses, to accommodate different field-of-view requirements. It integrates with Windows and Linux-based software, including IR Flash Pro and SDK options for custom development. These features make the ICI 8320S an essential tool for UAV thermal imaging, building automation, and scientific analysis.

Digital Downloads from ICI

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
