LWIR Handheld Thermal Camera

ICI T-Cam 600 P-Series IR Camera

Wide temperature range: -20 ℃ to 550 ℃ (-4 °F to 1022 °F).
Applications: Electrical and HVAC inspections, automotive maintenance, and security surveillance.
Temperature detection: Center, hot, and cold spot temperature points with alarming features for critical failure detection.
Interval photography: Capture images at programmed durations and frequencies.
Connectivity: USB Type-C connector for streaming media to a PC.
Performance: Reliable for troubleshooting, monitoring, and ensuring safe and efficient machinery operation.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$2,000.00 USD

~~$7,995.00 USD~~ $2,000.00 USD

Sale Sold out

Shipping calculated at checkout.

SKU: CAITC60048

Quantity

View full details

Product Information

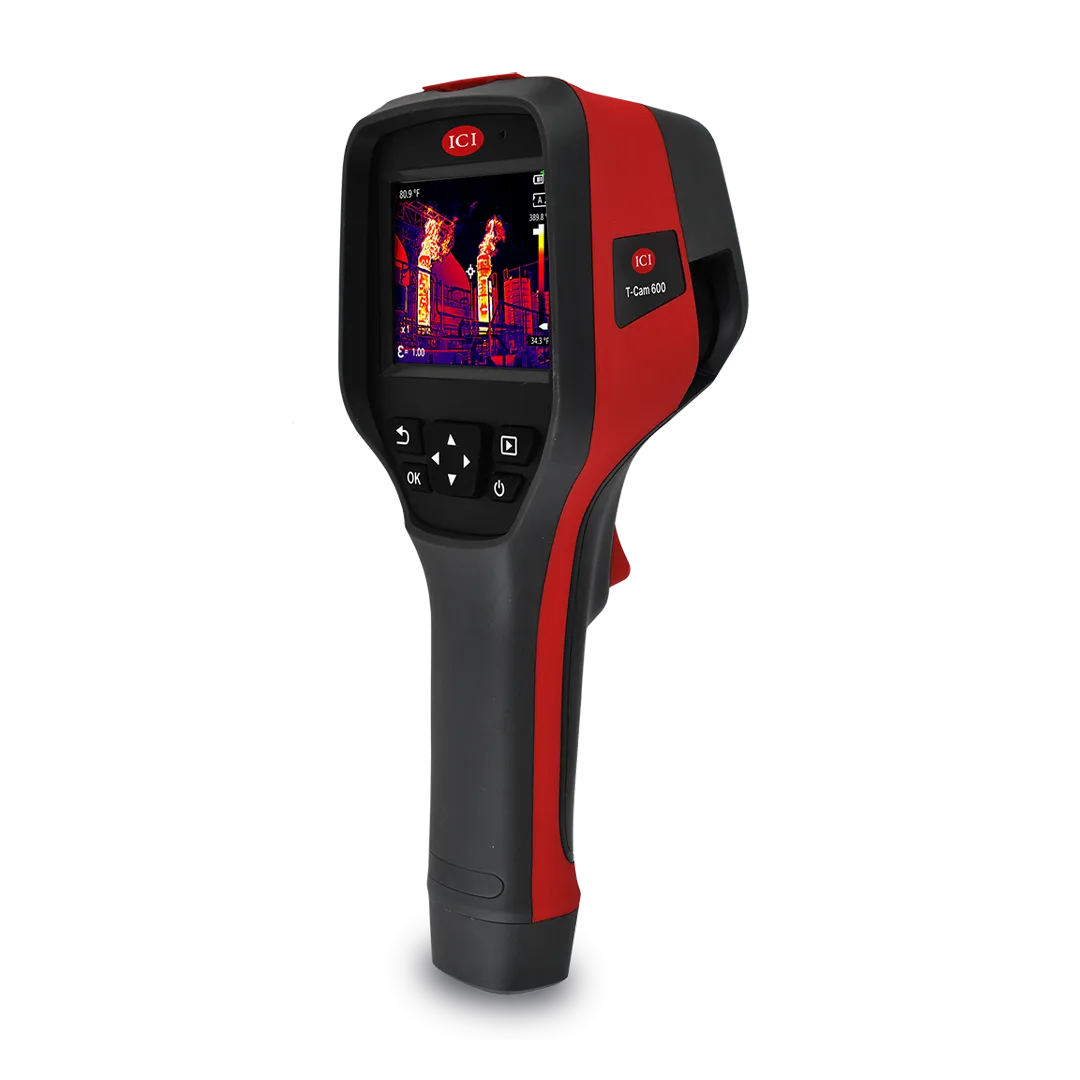

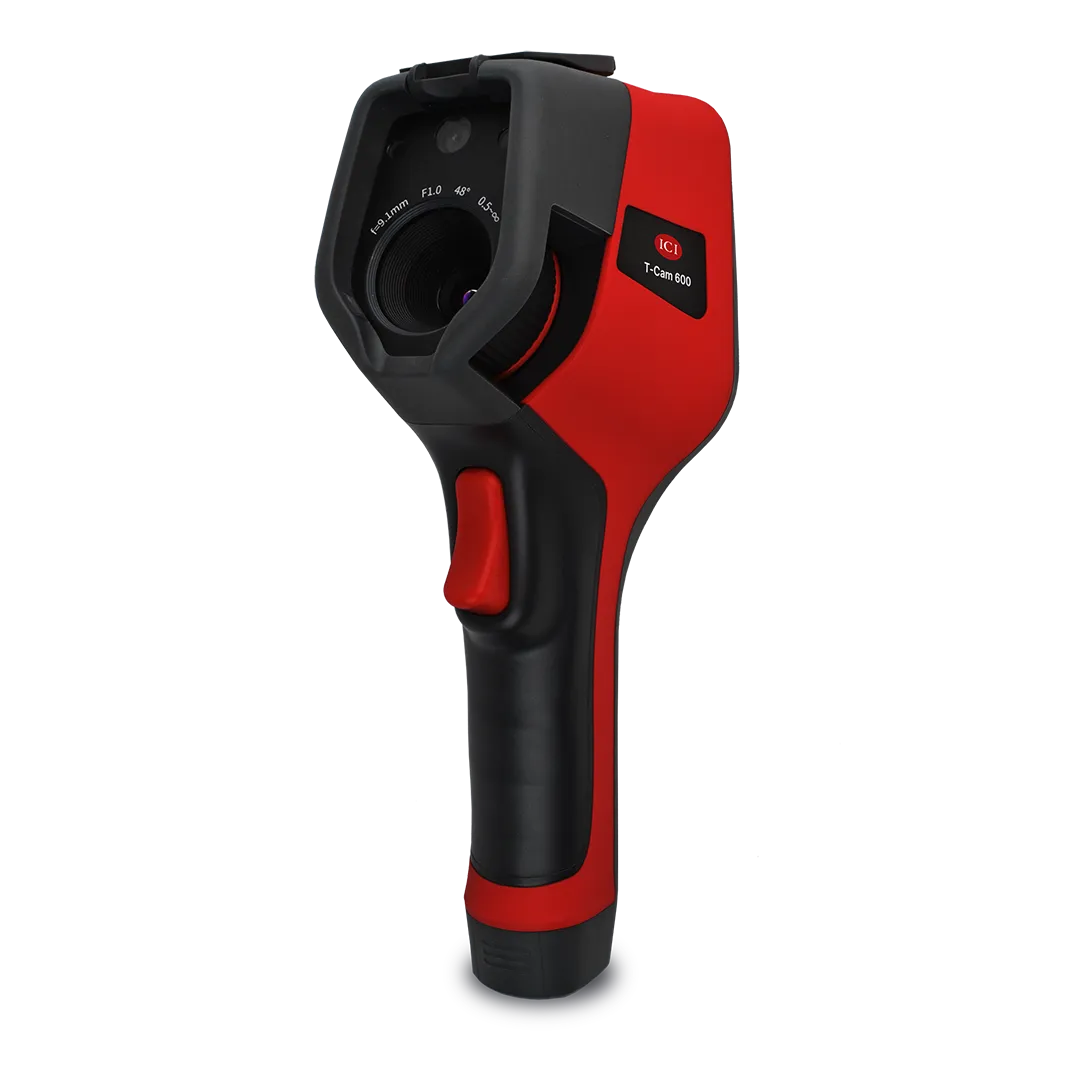

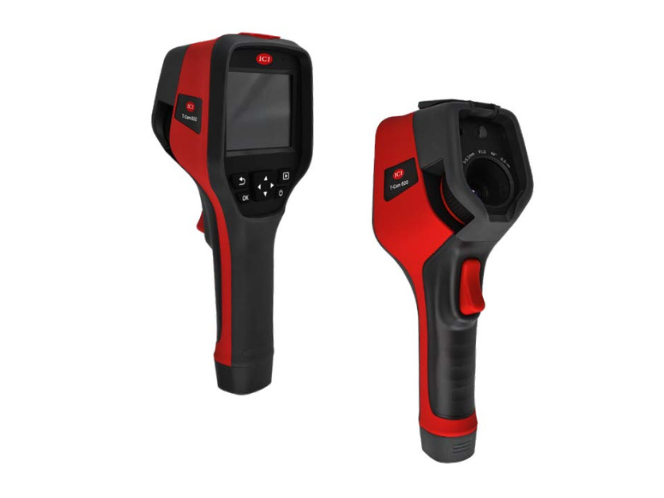

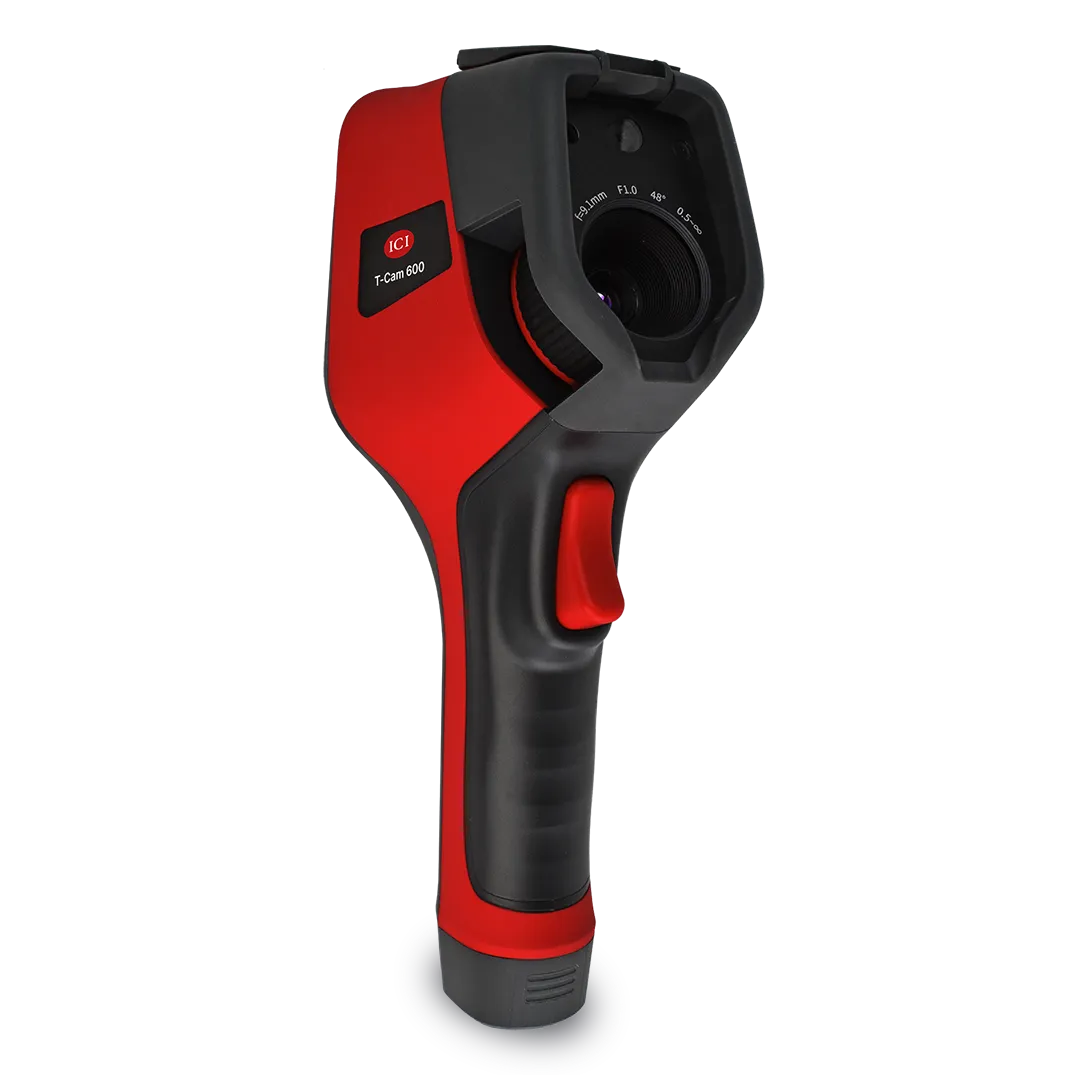

ICI T-Cam 600 P-Series IR Camera

The T-Cam 600 handheld thermal camera provides high temperature measuring from -20 °C to 550 °C (-4 °F to 1022 °F) and an accuracy of ± 2°C (± 3.6 °F) or ± 2%. Manual focus provides clear 640 x 512 images to meet research and field requirements. Perfect for one-hand inspection by engineers and electrical thermographers who need to perform analysis on-the-go. Stream media to a PC using the USB Type-C connector.

High Resolution at an Affordable Price

Featuring a wide temperature range from -20 ℃ to 550 ℃ (-4 °F to 1022 °F), the T-Cam 600 is useful for electrical and HVAC inspections, automotive maintenance, and security surveillance. Enable the center/hot/cold spot temperature points and alarming features to assist in detecting critical failures. Interval photography allows inspectors to capture images for a programmed duration and frequency. Stream media to a PC using the USB Type-C connector. The T-Cam 600 has reliable performance and can be used to troubleshoot repairs and monitor processes to ensure machinery and systems are functioning safely and at peak efficiency.

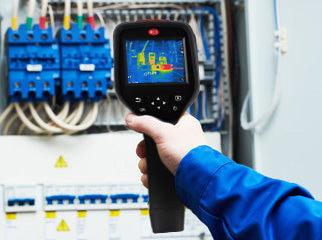

Rugged and Built-to-Last

Rated IP54 to protect against dirt, dust, and other non-corrosive materials. 2 m (6.56’) drop-rating to withstand the rigors of tough inspections. Each T-Cam 600 is shipped with two rechargeable, replaceable 4500 mAh batteries and a charging dock to meet the requirements of heavy daily use. Power management is built-in to save battery life.

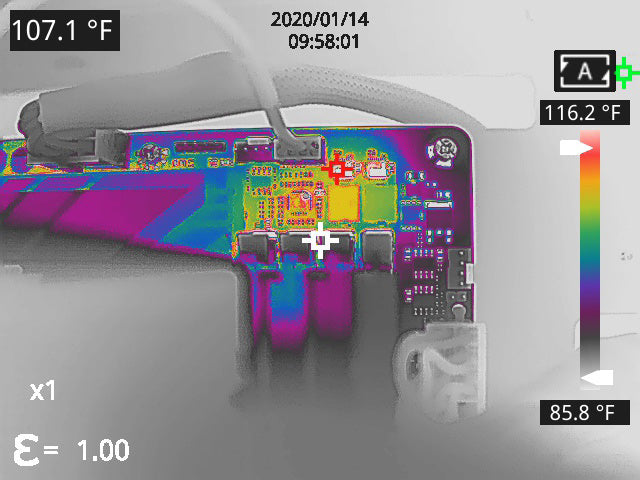

Hi-Res Thermal Images

Provides 640 x 512 high resolution thermal images. Captures visible images with 5 MP digital camera. Features manual adjustment for clear and precise focus. Features 5 image modes: detail enhancement, picture-in-picture, visible, infrared and ICI Dual Vision for situational awareness and target location. 10 color palettes to enhance viewing and easily find hot spots. Save images to the provided MicroSD card

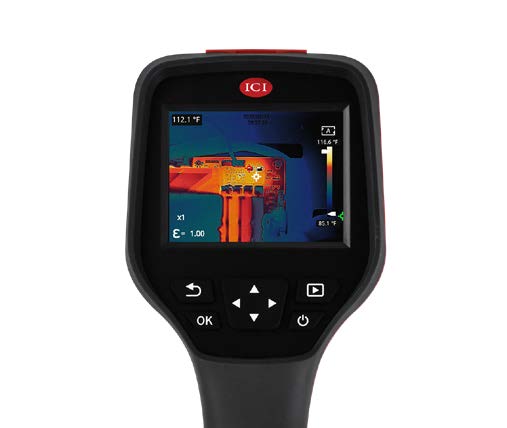

Easy to Use

Quick start instruction guide provided. No additional training required. One-handed, 5-button easy operation for fast inspections. Use handheld or on a tripod. Features a 3.5” LCD high definition (640 × 480) capacitive touch screen with adjustable screen brightness for on the spot analysis. Also utilize the Type-C connector to plug-and-play streaming to an external device.

Digital Downloads from ICI

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
