OEM Cameras BOSON Module

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

  • Interface Type: VPC (Video, Power & Communication)
  • Power Input: 5 to 26 V DC
  • Power Protection: Reverse polarity protected
  • Power via USB: Yes
  • USB Video Support: Yes
  • Video Output: USB-C
  • Control Channels: USB 3.0 (Video + Control)
  • GPIO Channels: TBD
  • Mounting Features: Four M1.6 holes
  • Operational Altitude: Up to 12 km
  • Operating Temperature Range: –40°C to 80°C
  • Storage Temperature Range: –50°C to 105°C
  • Power Dissipation: <0.1 W (camera not included), 3.5 W max with camera, 6 W total fused
  • External Sync I/O: Optional
  • Included Accessories: 1.5 mm hex L-key, 2-pin JST to flying leads, 3 ft USB-A to USB-C cable, heatsink cover, interface board, M1.6 screws

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$149.99 USD
$149.99 USD $149.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-VPC-IF-1
View full details
()

Powered by Salepify App

Product Information

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

The Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out (SKU: RHP-BOS-VPC-IF) is a compact and efficient solution for integrating FLIR Boson thermal cameras into custom systems. Designed for reliable performance, it supports a wide input voltage range of 5 to 26V and features reverse polarity protection to safeguard against electrical mishaps. This module enables USB video streaming for real-time monitoring and offers optional EXT. Sync in/out for precise synchronization with external devices—ideal for applications requiring coordinated timing. Compatible with both Boson 320 and 640 versions, it provides seamless integration across thermal imaging configurations. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

Compact Interface Solution for FLIR Boson Integration

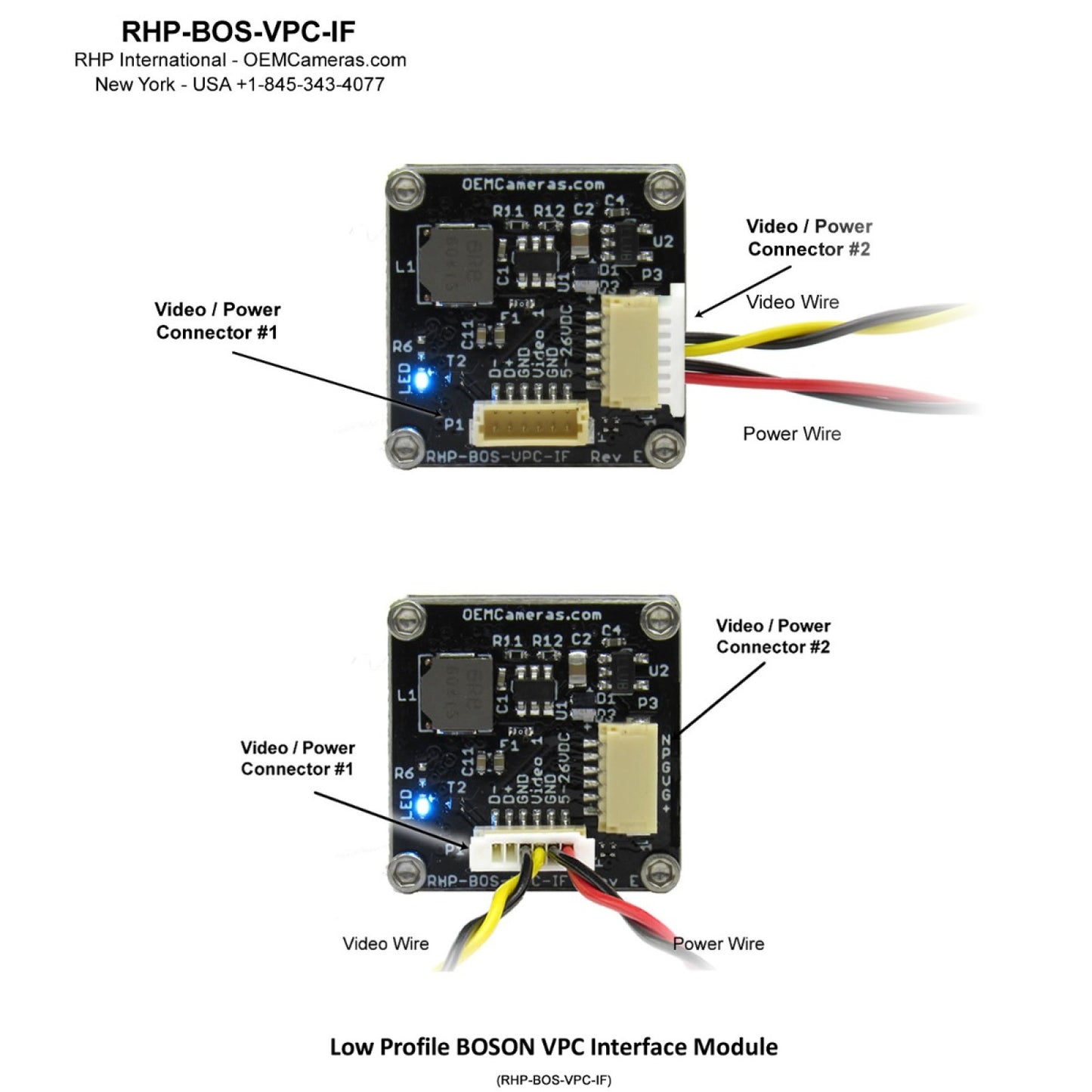

The Low Profile BOSON VPC Interface Module offers a streamlined solution for integrating FLIR Boson thermal cores into various systems. Designed with a minimalist footprint, it provides essential video, power, and control interfaces, facilitating seamless integration into space-constrained applications such as UAVs, robotics, and embedded systems.

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

Optional External Synchronization for Enhanced Coordination

Equipped with an optional external sync in/out feature, this module enables precise frame synchronization with other devices. This capability is crucial for applications requiring coordinated imaging, such as multi-sensor setups or time-sensitive data acquisition, ensuring that thermal imaging aligns accurately with other system components.

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

Versatile Connectivity and Power Options

The module supports a range of video output formats, including USB and analog video, catering to diverse system requirements. Its flexible power input range accommodates various voltage levels, and the inclusion of reverse polarity protection safeguards against incorrect power connections, enhancing system reliability.

Low Profile BOSON VPC Interface Module with optional EXT. Sync in/out

Robust Design for Demanding Environments

Built to withstand challenging conditions, the interface module features a durable construction suitable for industrial and field applications. Its low-profile design not only saves space but also contributes to efficient thermal management, making it an ideal choice for compact and high-performance thermal imaging systems.

Digital Downloads

Product Specifications and Downloads

Documentation

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
