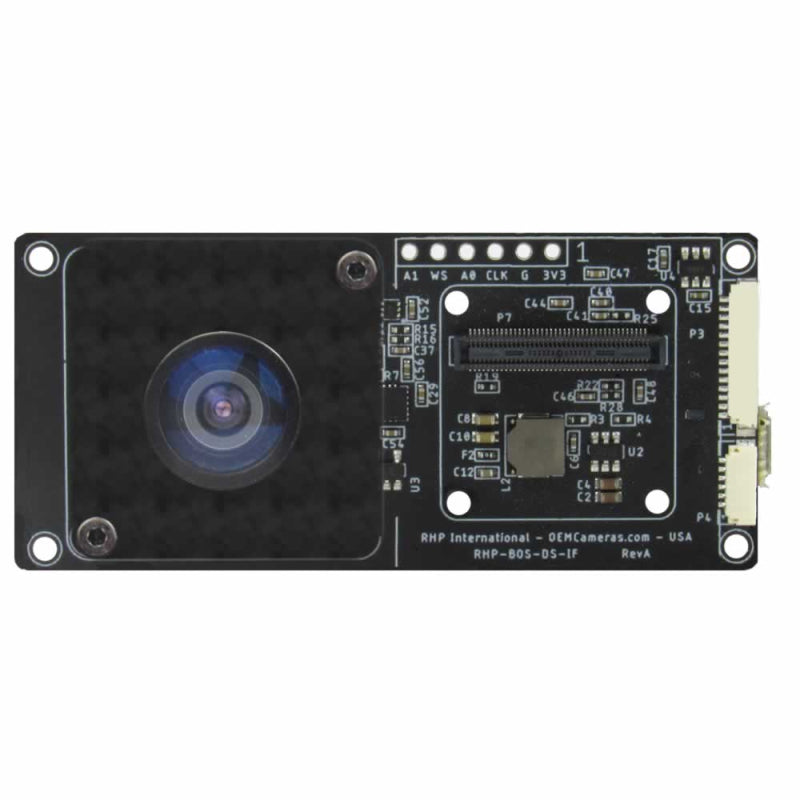

• RHP-BOS-DS-IF Dual Thermal Sensor Interface

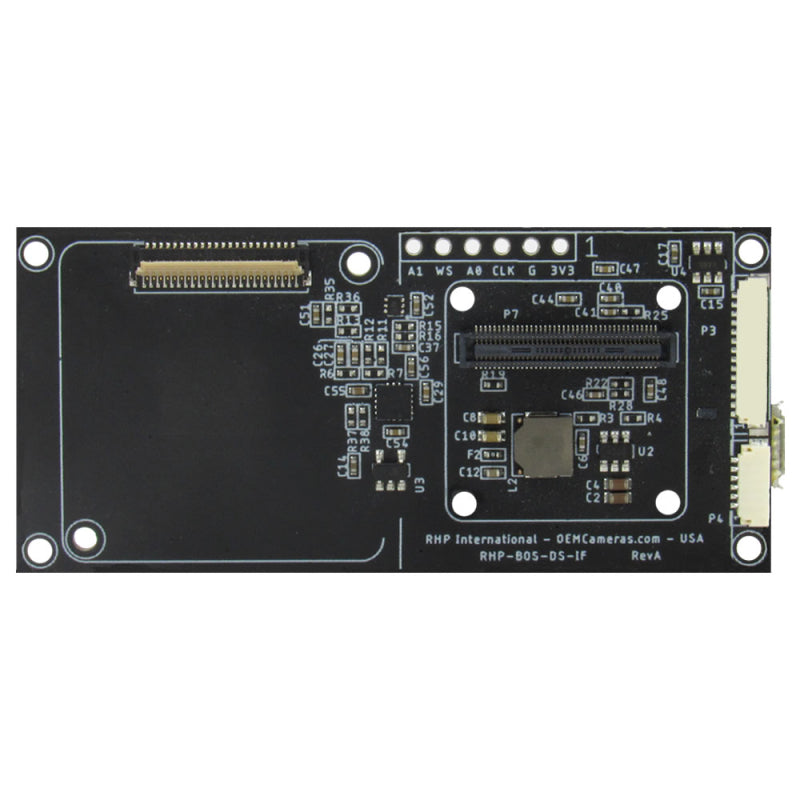

  • RHP-BOS-DS-IF Dual Thermal Sensor Interface - back

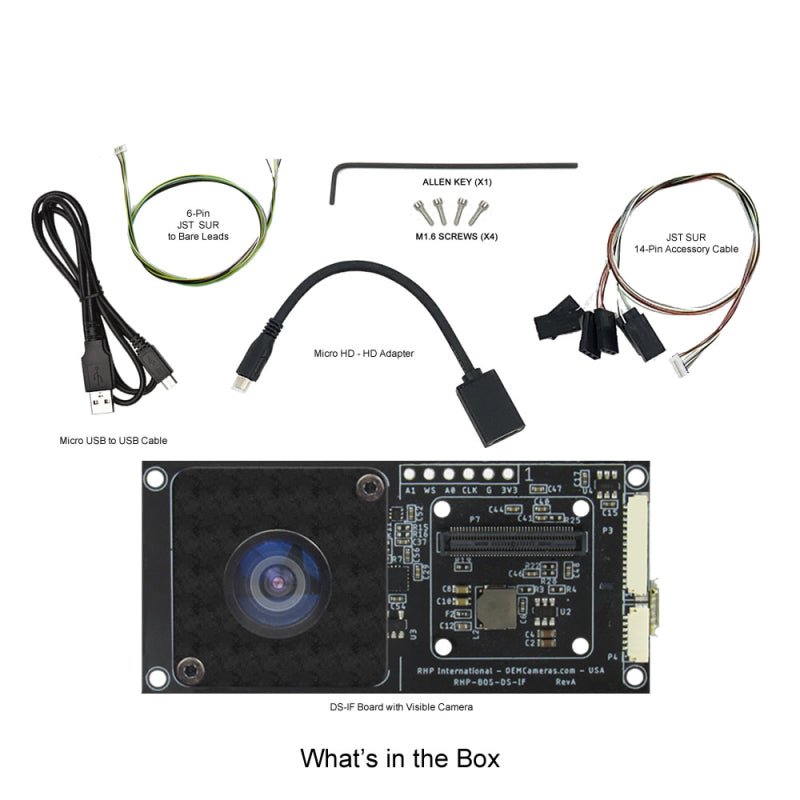

  • RHP-BOS-DS-IF Dual Thermal Sensor Interface - what's included
1 4

OEM Cameras Sensor Interface

RHP-BOS-DS-IF Dual Thermal Sensor Interface

RHP-BOS-DS-IF Dual Thermal Sensor Interface

  • Interface Type: Dual Sensor Interface (Thermal + Visible)
  • Camera Support: FLIR Boson thermal core + 1080p visible camera
  • Control Methods: Serial, SBUS, PWM, wireless joystick, or push-button
  • Power Input: 6 to 26 V DC
  • Video Modes: Multi-Window, Picture-in-Picture (PiP), Split View, Single, and Quad View
  • Video Outputs: Thermal and visible video streaming
  • Included Sensors: Integrated IMU and HD visible camera module
  • Integration Compatibility: Gimbal and multi-sensor payloads
  • IR-Cut Filter Option: Available with or without infrared cut filter
  • Use Case: Seamless blending of visible and thermal video for enhanced situational awareness

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$1,149.00 USD
$1,149.00 USD $1,149.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-DS-IF-1
View full details

Product Information

RHP-BOS-DS-IF Dual Thermal Sensor Interface

The RHP-BOS-DS-IF Dual Thermal Sensor Interface (SKU: RHP-BOS-DS-IF) is an advanced solution that integrates both a thermal and a 1920 x 1080 HD visible camera on a single compact board. Designed for versatility and control, this module allows seamless switching between thermal and visible video streams via serial command, push button, S-Bus (16 channels), PWM (5 channels), or wireless joystick inputs. Operating on a wide 6 to 26V DC input with reverse polarity protection, it supports multiple viewing formats including Multi-Window Mode, Picture-in-Picture (PiP), Split View, Single, and Quad View.

Optimized for gimbal integration, the onboard IMU ensures smooth motion tracking and orientation awareness. The included visible camera comes with an optional IR-cut filter—used to block infrared wavelengths that can degrade image contrast, especially in high-sensitivity CMOS and CCD sensors. This makes the module ideal for precision imaging in surveillance, industrial inspections, or airborne applications where both IR and visual feeds are critical. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

RHP-BOS-DS-IF Dual Thermal Sensor Interface

Dual Boson Integration, One Streamlined Interface

The RHP-BOS-DS-IF allows you to connect and operate two FLIR Boson thermal cores simultaneously, enabling advanced stereo thermal imaging or multi-angle data capture from a single interface. This unique setup is ideal for applications requiring depth perception, enhanced target tracking, or wide-area thermal surveillance—without the need for multiple independent systems.

RHP-BOS-DS-IF Dual Thermal Sensor Interface - back

Synchronized Output & Enhanced Data Fusion

Designed for precision imaging workflows, this interface provides synchronized composite video output from both Boson cores. The result is a unified feed that can be used for 3D reconstruction, overlay fusion, or real-time comparative analysis. Whether you're developing AI-driven perception systems or environmental monitoring platforms, the DS-IF makes high-accuracy thermal alignment possible.

Seamless Command & Control Functionality

Featuring dual USB control ports, the DS-IF enables simultaneous communication with both connected Boson cores for parameter configuration, firmware updates, and command execution. Paired with compatible software, you can fine-tune gain, palette, zoom, and other settings for each core—unlocking full camera capabilities from a single, centralized interface.

RHP-BOS-DS-IF Dual Thermal Sensor Interface - what's included

Rugged Build with Simplified Power Management

The DS-IF is engineered for field deployment with a wide 5–26 VDC input range and reverse polarity protection to safeguard connected equipment. Its robust construction ensures long-term reliability in demanding environments, while efficient power handling makes it well-suited for UAV, vehicle-mounted, or stationary surveillance platforms where consistent performance is critical.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
