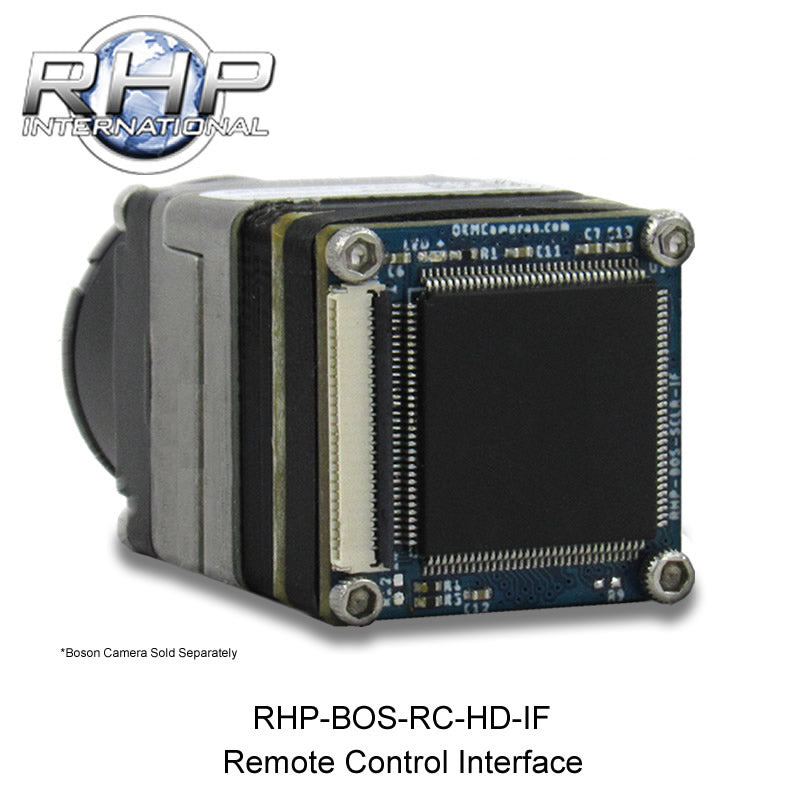

• RHP BOSON RC-HD-IF Remote Control Interface

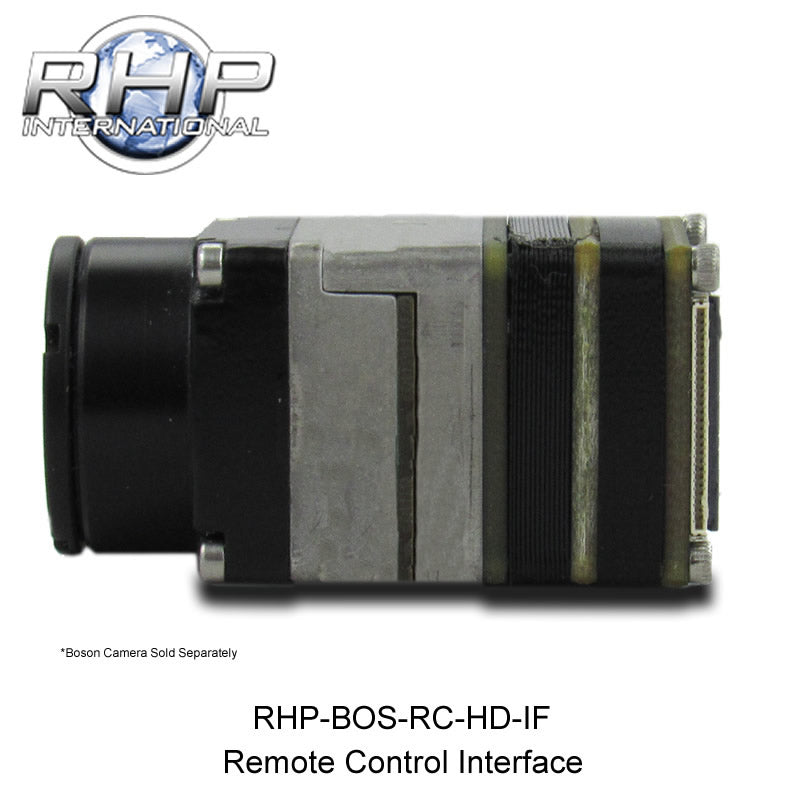

  • RHP BOSON RC-HD-IF Remote Control Interface - left side
  • RHP BOSON RC-HD-IF Remote Control Interface - right side
  • RHP BOSON RC-HD-IF Remote Control Interface - back
  • RHP BOSON RC-HD-IF Remote Control Interface - what's included
1 5

OEM Cameras Interface Module

RHP BOSON RC-HD-IF Remote Control Interface

RHP BOSON RC-HD-IF Remote Control Interface

  • Interface Type: Remote Control (RC-HD)
  • Control Support: USB-C connection to PC or host device
  • Compatibility: Designed specifically for FLIR Boson thermal cores
  • Power Input: Supplied via USB-C (5 V)
  • Communication Protocol: USB UVC/UAC and Boson Camera Command Protocol
  • Software Support: Compatible with FLIR Boson SDK and GUI
  • Construction: Compact, durable PCB module
  • Mounting Features: Standardized for integration into OEM systems
  • Primary Use: Remote operation and camera configuration
  • Included Accessories: USB-C cable, mounting hardware

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$573.99 USD
$573.99 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-RC-HD-IF-1
View full details

Product Information

RHP BOSON RC-HD-IF Remote Control Interface

The RHP BOSON RC-HD-IF Remote Control Interface (SKU: RHP-BOS-RC-HD-IF) is the ideal solution for integrating the Teledyne FLIR Boson into unmanned aerial systems where HD thermal video and full camera control are essential. Designed with a wide 6–26V DC input range and reverse polarity protection, this lightweight 12g module offers HD and composite video outputs, allowing simultaneous connection to two video devices without signal loss. The HD output supports secure video transmission at 720p or 1080p, while the analog output is compatible with recording devices.

Engineered for remote precision, the RC-HD-IF allows full control of Boson camera parameters using up to 5 PWM signals or a 16-channel S-Bus signal. You can assign any camera function to knobs, switches, or levers on your remote controller, enabling dynamic in-flight adjustments. Additional features include USB video support, compatibility with most digital HDMI transmitters, regulated 5V output to power your RC receiver, and included setup/calibration software for easy configuration. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

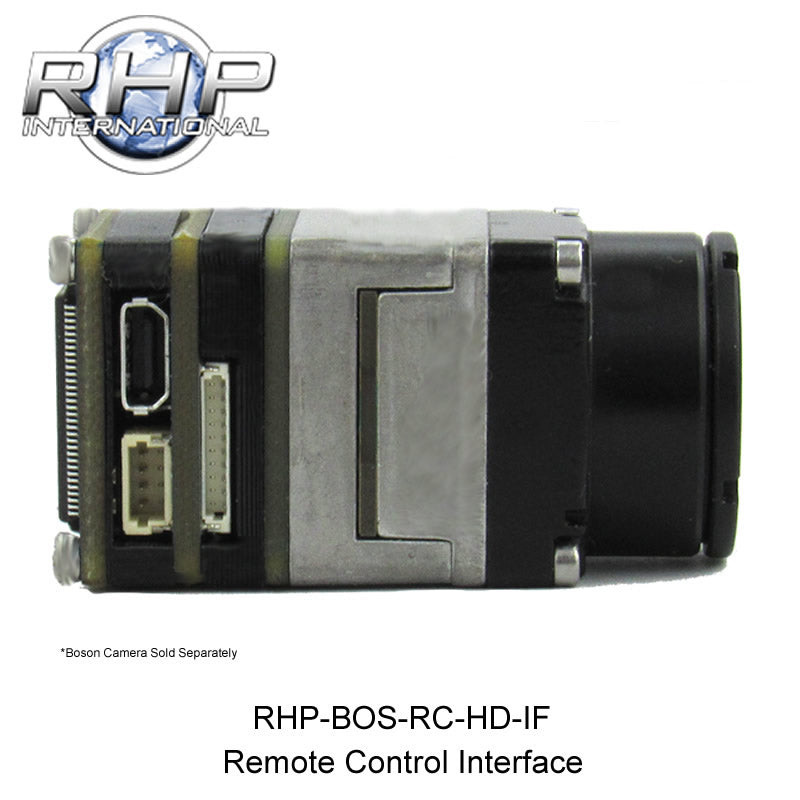

RHP BOSON RC-HD-IF Remote Control Interface - right side

Full HD & Composite Video Output

The RC-HD-IF interface delivers both HD video via micro HDMI and standard composite video output, offering unmatched flexibility in thermal video transmission. Whether you're integrating with high-resolution digital displays, FPV systems, or analog monitors, this module ensures sharp, real-time imaging. Ideal for UAVs, robotics, and surveillance applications, it gives you the ability to switch between output formats based on mission needs.

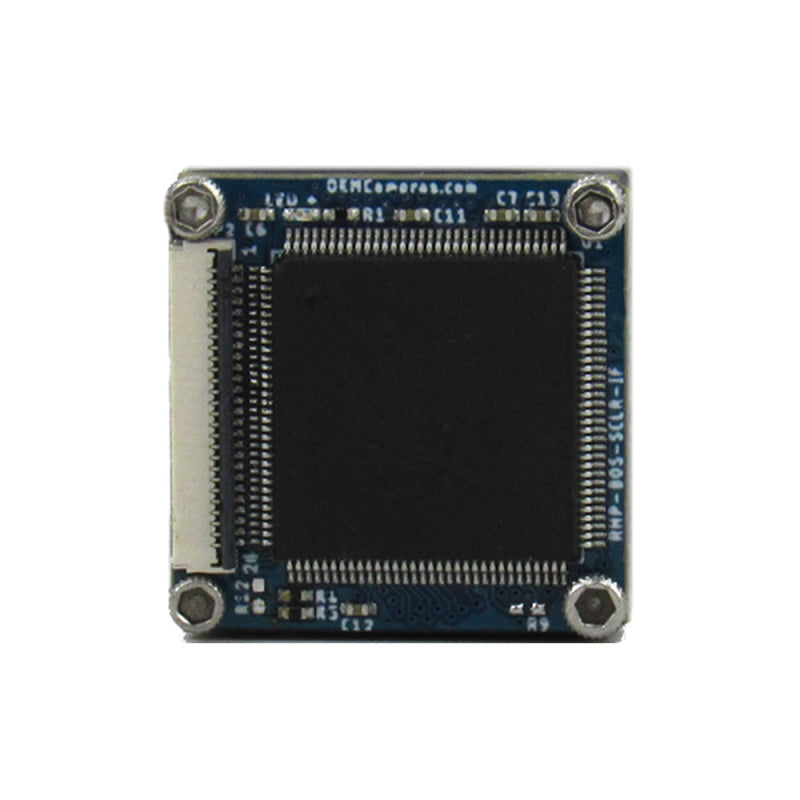

RHP BOSON RC-HD-IF Remote Control Interface - back

Versatile Remote Control with S-Bus & PWM

Gain precise control over your Boson thermal camera using a 16-channel S-Bus signal or up to 5 independent PWM channels from your remote-control system. This allows you to assign specific camera parameters—such as zoom, gain, polarity, and color palette—to physical switches or sliders on your RC transmitter. The interface supports both standard and custom configurations, making it perfect for dynamic environments where responsiveness and customization are key.

RHP BOSON RC-HD-IF Remote Control Interface

Compact, Lightweight, and UAV-Ready

Designed with aerial and mobile platforms in mind, the RC-HD-IF weighs in at just 12 grams, making it one of the lightest interfaces available for the Boson core. Its ultra-compact footprint makes installation simple, even in payload-restricted environments. Combined with included mounting hardware and plug-and-play connectors, this interface minimizes setup time and maximizes compatibility for airborne, handheld, or embedded systems.

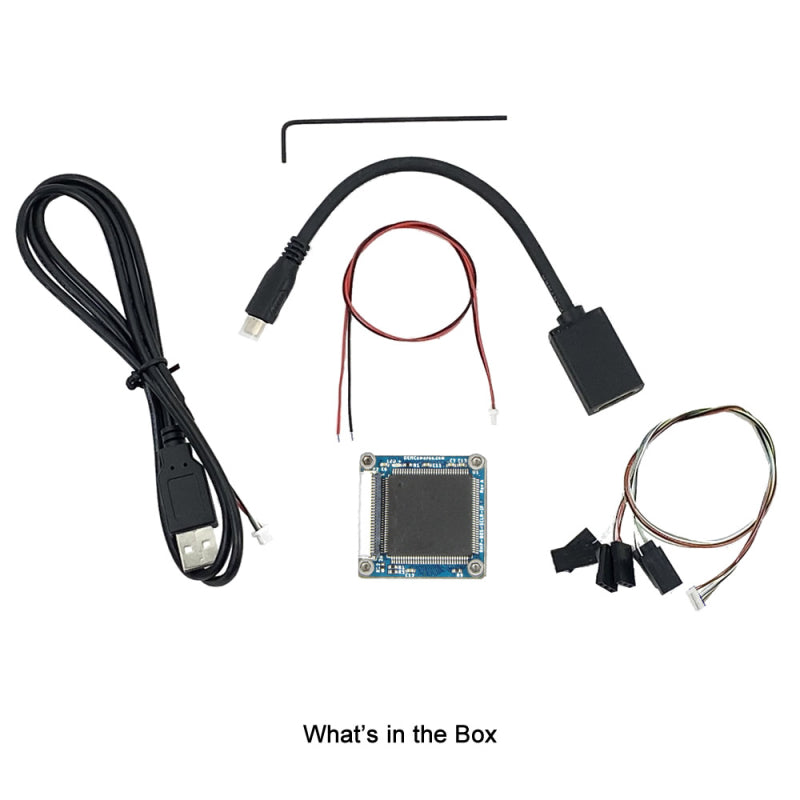

RHP BOSON RC-HD-IF Remote Control Interface - what's included

Smart Power Input with Built-In Protections

The interface accepts a wide input voltage range of 6 to 26 VDC, offering integration flexibility across a variety of platforms, including battery-powered systems. It features reverse polarity protection to guard against improper wiring, ensuring the safety and longevity of both the interface and connected components. Designed for rugged applications, it’s built to perform in demanding field conditions without failure.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
