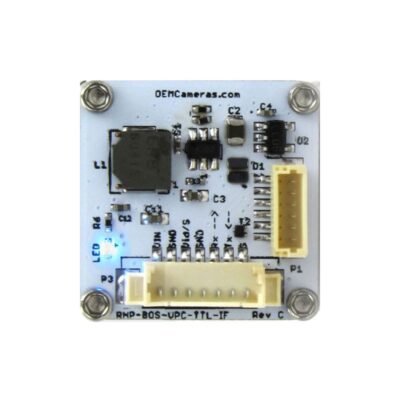

  • RHP BOSON VPC TTL Interface Module - back
  • RHP BOSON VPC TTL Interface Module - what's included
1 5

OEM Cameras Interface Module

RHP BOSON VPC TTL Interface Module

RHP BOSON VPC TTL Interface Module

  • Interface Type: Video, Power & Communication (VPC)
  • Communication Support: USB or TTL
  • Power Input: 5 to 26 V DC
  • Power Protection: Reverse polarity protected
  • Video Outputs: Dual composite video outputs
  • Control Channels: USB or TTL
  • Mounting Features: Four M1.6 holes
  • Operational Altitude: Up to 12 km
  • Operating Temperature Range: –40°C to 80°C
  • Storage Temperature Range: –50°C to 105°C
  • Power Dissipation: <0.1 W (camera not included), 3.5 W max with camera, 6 W total fused
  • Included Accessories: 1.5 mm hex L-key, 2-pin JST to flying leads, 3 ft USB-A to USB-C cable, heatsink cover, interface board, M1.6 screws

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$171.00 USD
$171.00 USD $171.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU: RHP-BOS-VPC-TTL-IF-1
View full details

Product Information

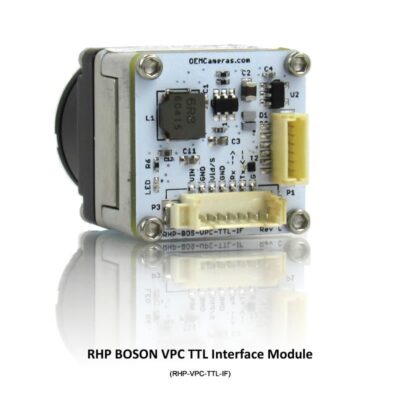

RHP BOSON VPC TTL Interface Module

The RHP BOSON VPC TTL Interface Module (SKU: RHP-BOS-VPC-TTL-IF) is a compact and highly versatile Video Power Communication solution built for seamless integration with the Teledyne FLIR Boson thermal camera. Designed with both USB and TTL connection support, this module enables flexible communication configurations while maintaining a streamlined, low-profile form factor. It supports a wide 5–26V DC input range with reverse polarity protection, ensuring reliable operation in dynamic environments. The interface includes two composite video outputs and an alternate USB video output, offering multiple streaming options. Sync functionality can also be enabled in place of video output on either or both connectors, making it ideal for applications requiring coordinated device timing. We usually have a majority of these items in stock. If unsure, please call or contact us for availability.

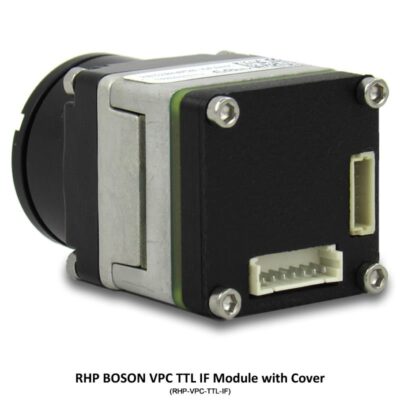

RHP BOSON VPC TTL Interface Module - cover

Seamless Integration for VPC and TTL Systems

Designed to support both Video Power Communication (VPC) and Transistor-Transistor Logic (TTL), this compact interface module bridges the gap between power, control, and video signals with ease. It ensures compatibility with a wide range of FLIR Boson configurations for streamlined deployment.

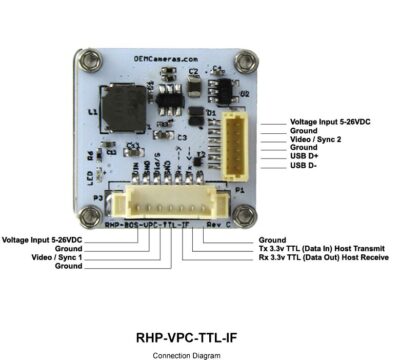

RHP BOSON VPC TTL Interface Module - diagram

Dual Composite Video Outputs

The RHP BOSON VPC TTL Interface Module offers two composite video outputs, providing flexibility for multi-display setups or alternate monitoring configurations. Whether you're in the field or a fixed installation, this feature enhances situational awareness and recording options.

RHP BOSON VPC TTL Interface Module

USB Video Output + Optional Sync Capability

In addition to composite outputs, this module supports an alternate USB video output for simplified connectivity to computers or digital systems. One or both connectors can also be configured for sync output instead of video, adding precision timing to your workflow.

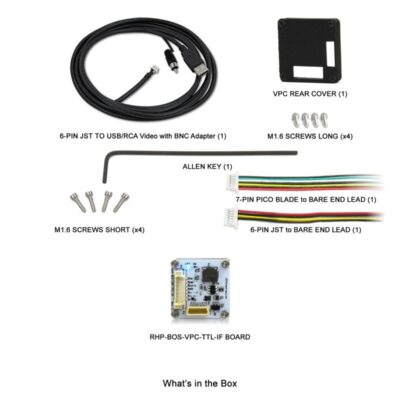

RHP BOSON VPC TTL Interface Module - what's included

Rugged & Reliable Power Input

With a 5–26 VDC reverse polarity-protected input, the module is built to handle demanding environments. This robust voltage range ensures stable performance and protects your gear from accidental miswiring or voltage fluctuations.

Digital Downloads

Product Specifications and Downloads

Documentation

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
