Acoustic Imager

Sound Detect Standard

Advanced detection technology: Utilizes 128 microphones with ultrasonic frequencies and beamforming for precise leak detection.
Versatile applications: Detects air, gas, and vacuum leaks, as well as partial discharge faults in electrical devices.
Detailed insights: Displays partial discharge type, estimated leak size, and earnings loss values.
Built-in processor: Pinpoints leak locations on-screen for faster identification.
Real-time imaging: Sound image display enables quicker hazard detection compared to traditional methods.
No wireless connectivity: Operates without Wi-Fi or Bluetooth.
Designed for industrial environments: Performs effectively in noisy conditions.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

$14,999.00 USD

~~$16,000.00 USD~~ $14,999.00 USD

Sale Sold out

SKU: CAISDS

Quantity

View full details

Product Information

Sound Detect Standard

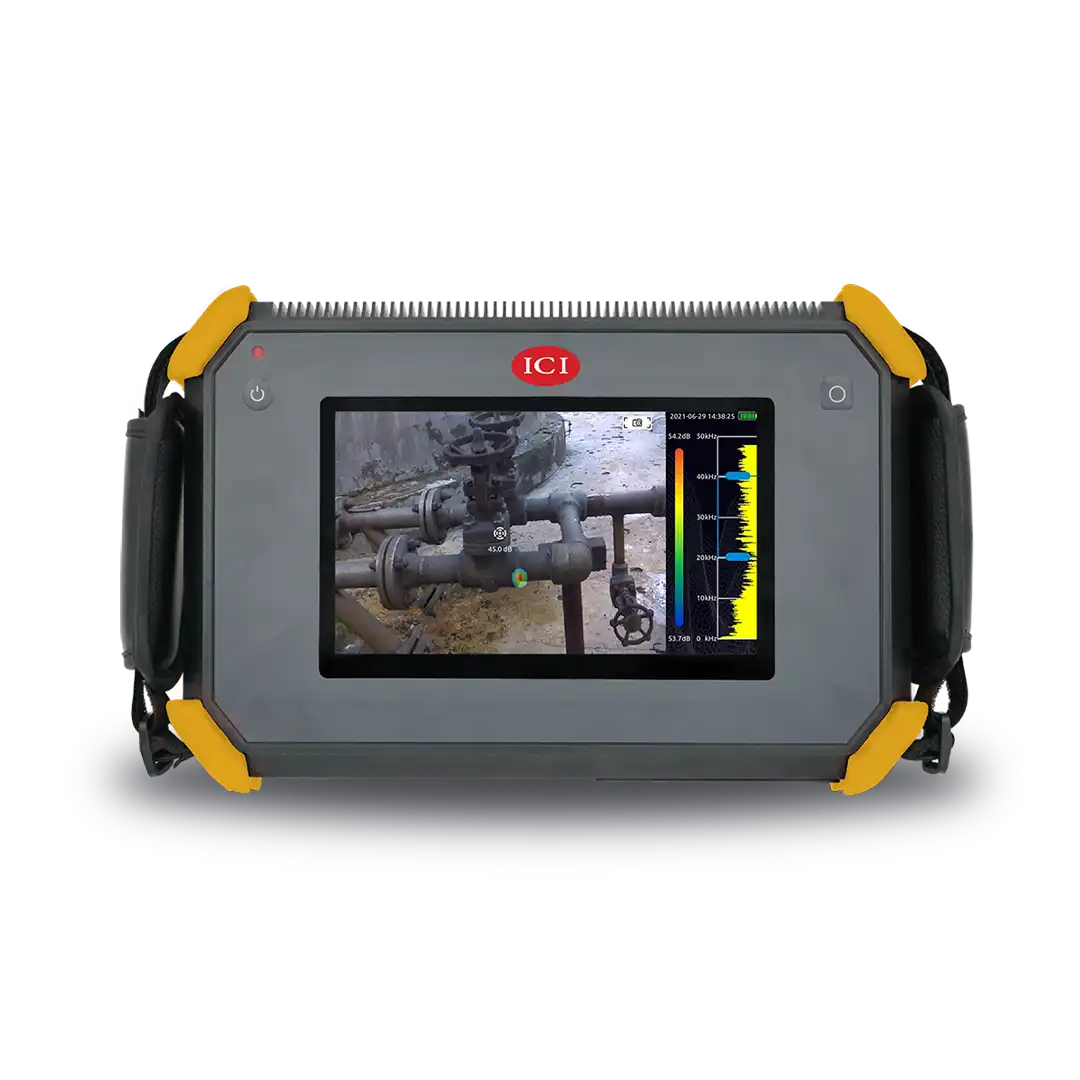

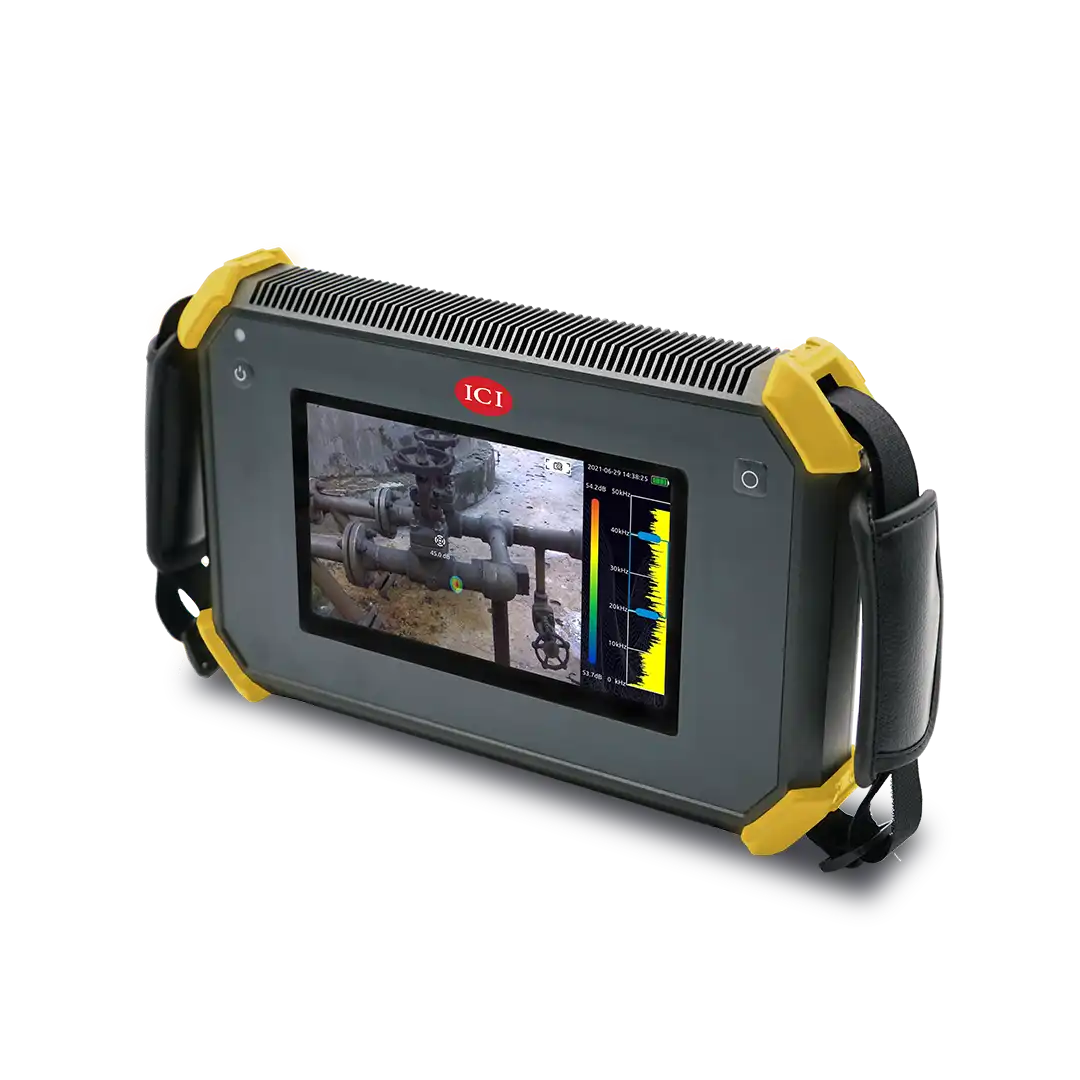

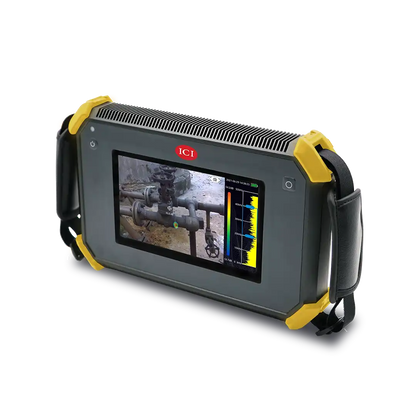

The Sound Detect for acoustic image management and signal analysis uses 128 microphones to locate precise acoustic sounds and visualizes them on a 7” color touchscreen. More sensitive and accurate than the human ear, the Sound Detect can locate both audible and ultrasonic signals, as well as source the direction of a sound up to 132.5 dB at ~120 m (394’) distance. Upgrade to Pro for an ATEX certified explosion-proof system.

Reduce Losses Caused by Gas Leaks and Partial Discharge

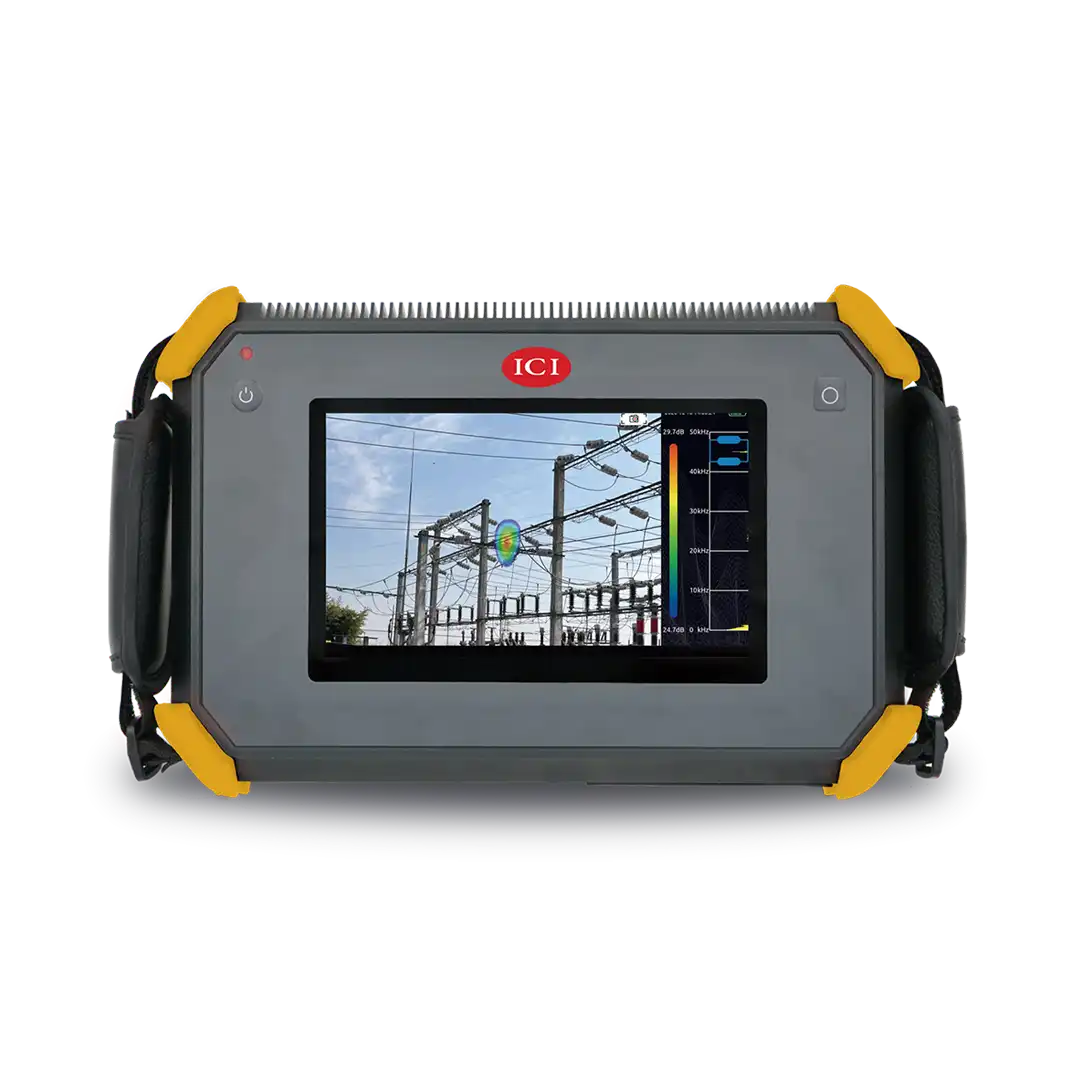

Constructed with 128 individual microphones, the Sound Detect leverages ultrasonic frequencies and microphone array beamforming technology to quickly detect potential air, gas, and vacuum leaks in noisy industrial environments. Also find partial discharge faults from electrical devices. The Sound Detect displays information related to partial discharge type, estimated leak size, and earnings loss values. The camera also comes with a built-in processor that pinpoints a leak’s location on-screen. Real-time sound image display, assists users in detecting hazards significantly faster compared to previous methods. Does not include Wi-Fi or Bluetooth

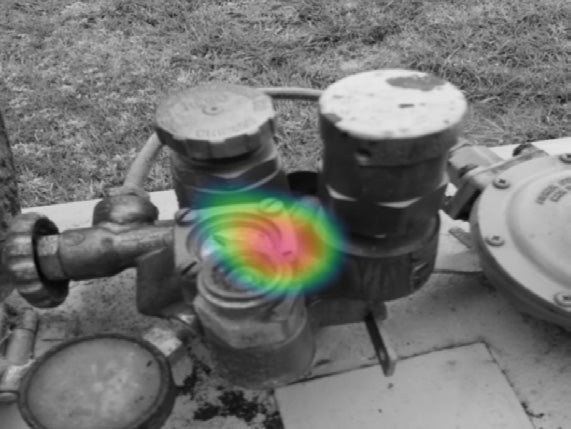

High-Performance Microphones

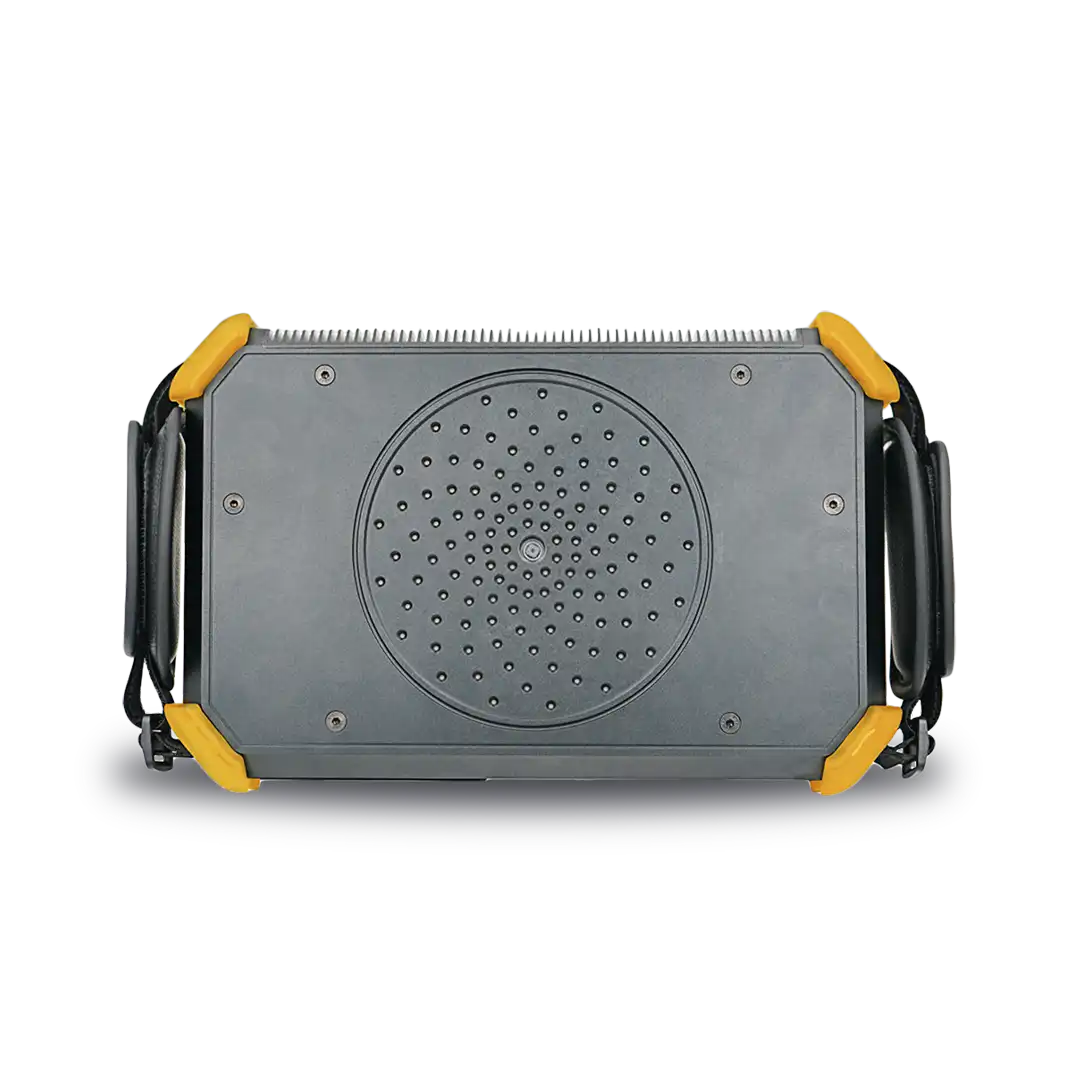

128 digital MEMS microphones can provide exceptionally high sensitivity and accuracy. With built-in processing capabilities, leaks are instantly displayed on a 7” color touchscreen, allowing for real-time analysis and solutions oriented problem solving. The Sound Detect also features anti-jamming technology to assist users in detecting leaks. Its ATEX certified explosion proof rating allows the device to be used in extreme environments.

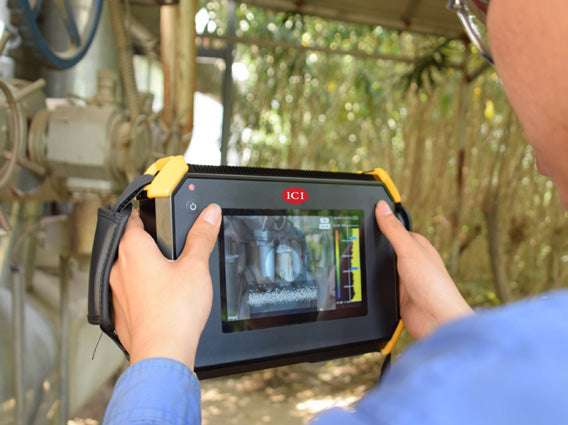

Intuitive Design

Adjust two parameters to effortlessly detect and locate low level noise caused by equipment failures, even in the loudest industrial environments. Made of durable aluminum, the Sound Detect is designed to be sturdy and lightweight. The acoustic imager is also extremely easy to use and requires little-to-no training

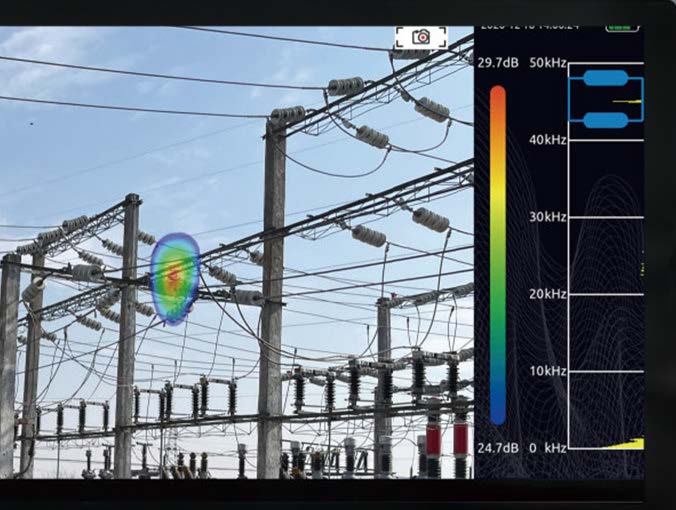

Analytics and Reports

The Sound Detect features camera and video modes as well as data recording. The large-capacity data storage can be expanded and the test results can be quickly exported. Report analysis software generates editable ISO 50001-compliant documents in Excel format.
