FOTRIC Fixed Mount

FOTRIC 616C

FOTRIC 616C

The FOTRIC 616C is a compact, fixed‑mount infrared camera designed for industrial monitoring, fire prevention, and process control. With its versatile lens options, reliable performance, and seamless integration, the 616C delivers continuous thermal data to help protect assets, improve safety, and optimize operations.

  • High‑Resolution Imaging: 384 × 288 pixels provide clear thermal visuals for accurate monitoring.
  • Exceptional Sensitivity: <50 mK ensures detection of subtle temperature differences.
  • Accurate Measurements: ±2°C (±3.6°F) or ±2% of reading, covering ranges from –20°C to 350°C (–4°F to 662°F).
  • Flexible Optics: Standard 30° × 22° lens with optional wide‑angle (47° × 35°), telephoto (15° × 11°), and super wide‑angle (91° × 71°) configurations.
  • Seamless Integration: Supports ONVIF, RTSP, Modbus, and SDK/API connectivity for easy integration into automation systems.
  • Continuous Monitoring: Ideal for warehouse fire prevention, perimeter security, and condition monitoring in manufacturing.
  • Compact & Rugged Design: Lightweight aluminum alloy housing, IP40 protection, and tested for shock and vibration resistance.
  • Smart Measurement Tools: Up to 5 points, 10 lines, and 10 regions with Modbus output for advanced monitoring.

The FOTRIC 616C is the perfect choice for industries that require a compact, reliable, and cost‑effective thermal imaging solution for continuous monitoring and safety applications.

This product must have the necessary documentation prior to leaving the boundaries of the United States. See more here.

SKU: FOTRIC 616C-L30
View full details

Product Information

FOTRIC 616C

The FOTRIC 616C is a high-performance thermal imaging camera designed for research and development applications, offering precise temperature measurement and detailed thermal analysis. Equipped with a 384x288 pixel infrared detector, it delivers over 110,000 temperature data points, enabling accurate thermal mapping of components such as circuit boards and electronic chips. The camera boasts a thermal sensitivity of less than 0.05°C at 30°C, allowing detection of minute temperature variations critical in R&D settings. It comes standard with a 30° x 22° lens and offers optional 50μm macro lenses for detailed analysis of microstructures. Manual focus capability ensures flexible and precise targeting. The FOTRIC 616C supports 30Hz radiometric streaming and integrates seamlessly with FOTRIC's AnalyzIR software, providing comprehensive tools for real-time analysis and recording. Its robust design includes high electromagnetic compatibility to prevent interference, making it suitable for various industrial environments. The accompanying R&D test platform facilitates easy adjustment and stable observation, enhancing the efficiency of thermal analysis tasks.

High-Resolution Thermal Imaging for Precision Research

The FOTRIC 616C is a specialized thermal imaging camera designed for research and development applications. Featuring a 384 × 288 infrared resolution and a thermal sensitivity of ≤0.05°C at 30°C (50mK), it delivers detailed thermal maps with over 110,000 temperature points. This high sensitivity allows researchers to detect minute temperature variations, making it ideal for analyzing electronic components, materials testing, and other critical R&D tasks.

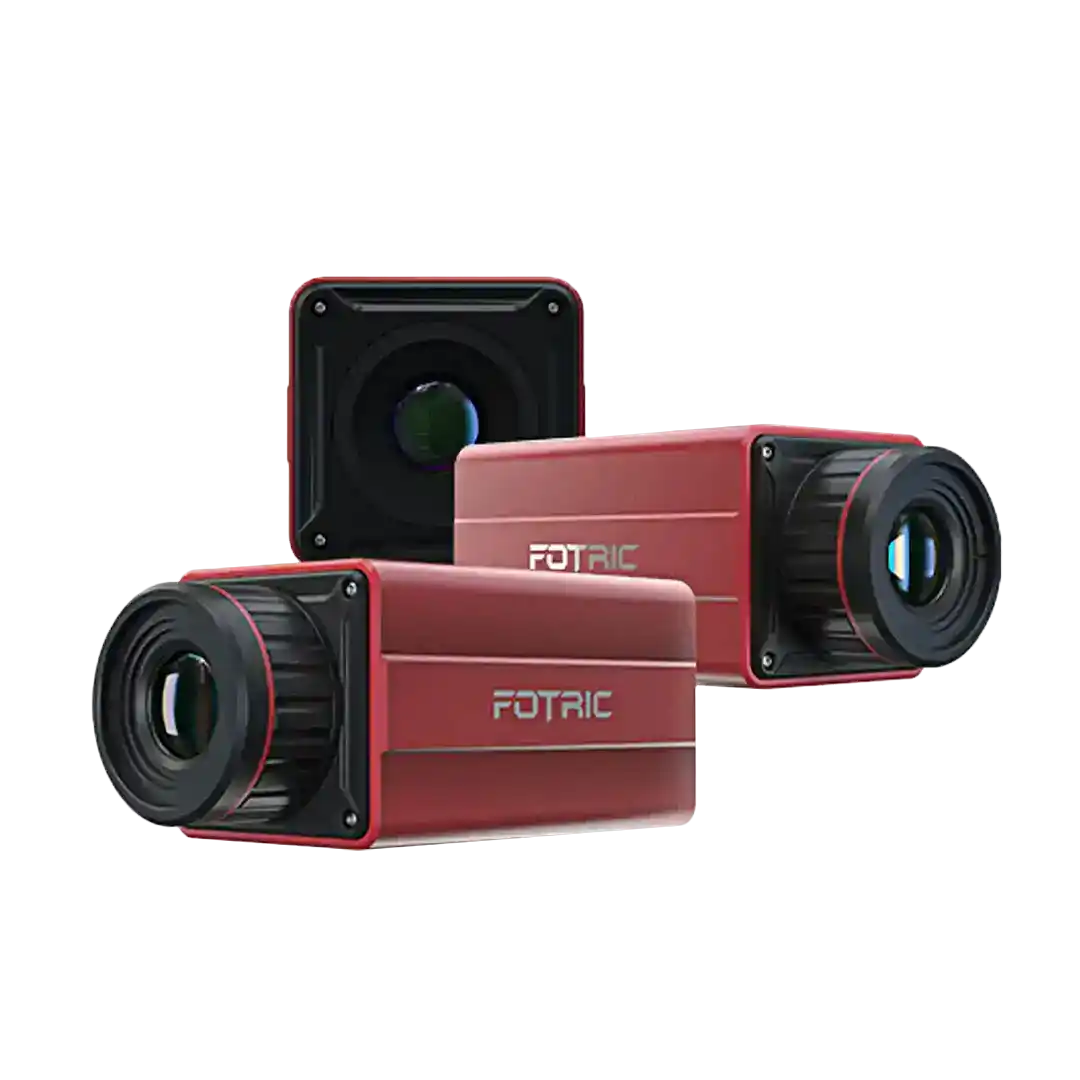

Versatile Lens Options for Any Inspection Scenario

The FOTRIC 616C offers multiple interchangeable lenses to adapt to different applications, providing flexibility for a wide range of inspection needs. The standard lens (30° × 22° FOV, 13mm focal length) is ideal for general-purpose thermal inspections, delivering a balanced field of view for routine diagnostics. For larger-area scanning, the wide-angle lens (47° × 35° FOV, 8mm focal length) expands the viewing area, making it easier to monitor broad environments with a single capture. When precise, long-range measurements are required, the telephoto lens (15° × 11° FOV, 25mm focal length) enables detailed thermal analysis of distant or small objects. With these versatile lens options, users can seamlessly switch between broad-area surveys and targeted thermal imaging, ensuring the 616C meets the demands of diverse industrial and research applications.

Robust Software Integration for Advanced Thermal Analysis

The FOTRIC 616C seamlessly integrates with AnalyzIR, a professional thermal analysis software that enhances the camera's capabilities. AnalyzIR allows users to perform real-time temperature monitoring, record and analyze full radiometric video streams at 30Hz, and customize measurement tools. This powerful software support streamlines data collection and analysis, facilitating efficient and accurate research outcomes.

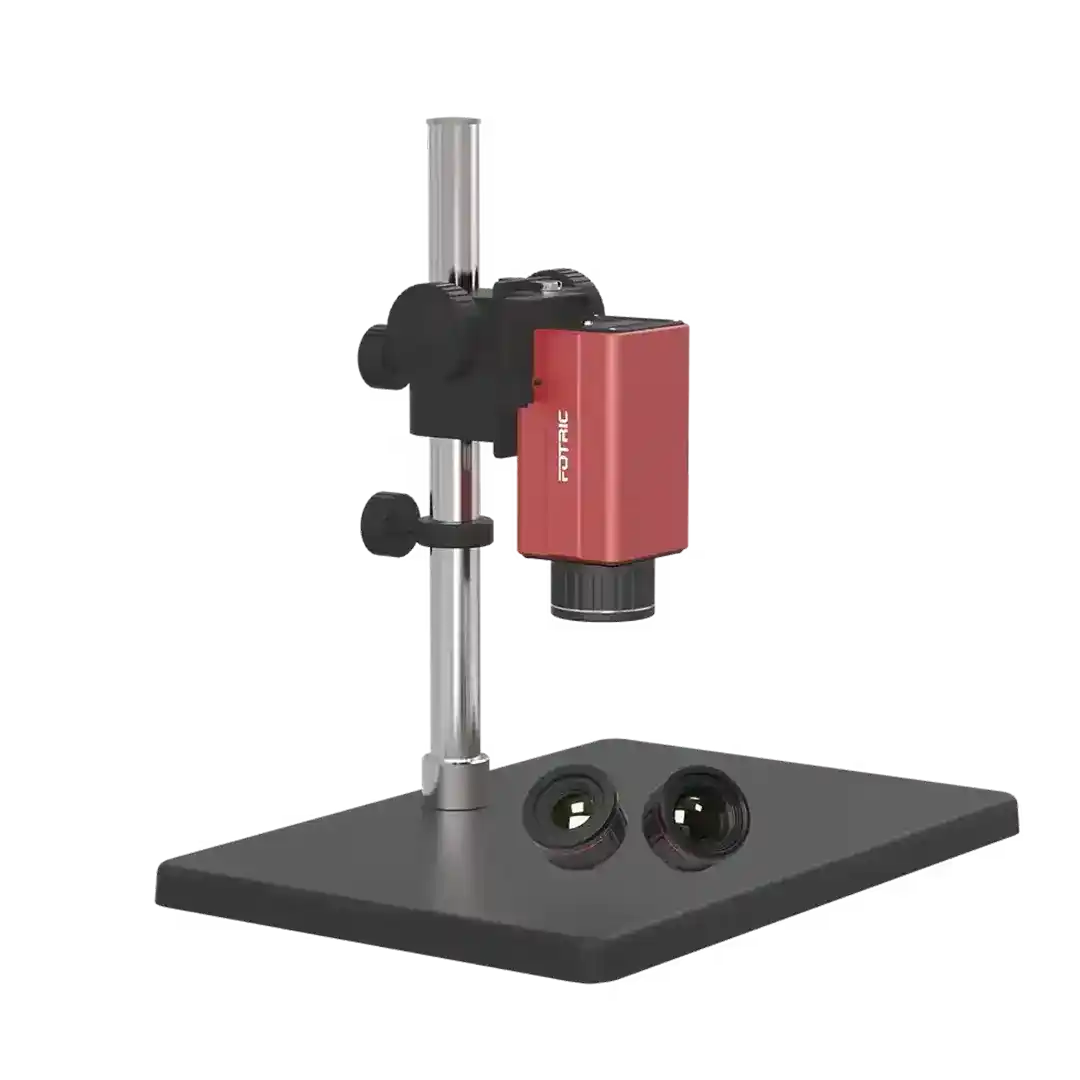

Precision Engineering for Reliable R&D Applications

Built with high-quality components, including a France Lynred infrared detector and a SAMSUNG main processing chip, the FOTRIC 616C ensures superior performance and stability. Its manual focus feature offers flexible and accurate targeting, while high electromagnetic compatibility (EMC) effectively prevents interference and electrostatic breakdown. These attributes make the 616C a dependable instrument for rigorous research and development environments.

Digital Downloads

Product Specifications and Downloads

Documentation

Product Videos

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Contact Us For More Information
